REPLICA RALLY TR4 BODY PARTS AND GENERAL IMPROVEMENTS
Triumph Rallied four specially prepared Powder Blue TR4's from 1962‑1964. These were registered 3VC, 4VC, 5VC and 6VC. Three cars remain; Parts of 5VC resided in a scrap yard in America for many years.
Having been honoured by lan Cornish selecting us to rebuild 4VC, the only works TR4 Rally car remaining in England at the time, we are in a unique position to supply exact replicas of modifications used by the works A few items from our large list are included below. Please phone to discuss your requirements.
Neil Revington owns 6VC, and for a time had a part share in 3VC. Given that these cars were also rebuilt at Revington TR, the experience has providing RTR with an unrivalled depth of knowledge of TRIUMPH Rally preparation.
We also list here items which whilst not replications of Triumph works rally TR parts, are useful improvements to the TR4-5 body shell.
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
RTR8126K
|
LAMP BAR TR4 WORKS RALLYRevington TR information: Rally TR4 spot lamp bar. Replica of the bar fitted to 6VC and 3VC, bumper must be removed to fit this bar. This bar was used on the works TR4 rally cars in their last season.... READ MORE |
£476.10 Ex VAT @ 20% |
|
 |
950109AL |
WING FT ALI LH TR4/5Revington TR information: Aluminium TR4, 4A, 250 and 5 Front Outer Wing left hand. To enable this panel to be universally used on all TR4-5 models, the piercings for the wing lamp (TR4A, 250 and 5) and small side... READ MORE |
£1881.89 Ex VAT @ 20% |
|
|
850457AL |
FILLER ALLY LHRevington TR information: TR4-5 LH Aluminium front wing filler. Cage nuts not fitted |
£81.17 Ex VAT @ 20% |
|
|
950110AL |
WING FT ALI RH TR4/5Revington TR information: Aluminium TR4, 4A, 250 and 5 Front Outer Wing right hand. To enable this panel to be universally used on all TR4-5 models, the piercings for the wing lamp (TR4A, 250 and 5) and small side... READ MORE |
£1881.89 Ex VAT @ 20% |
|
|
850458AL |
FILLER ALLY RHRevington TR information: TR4-5 RH Aluminium front wing filler. Cage nuts not fitted |
£81.17 Ex VAT @ 20% |
|
 |
RTR7019
|

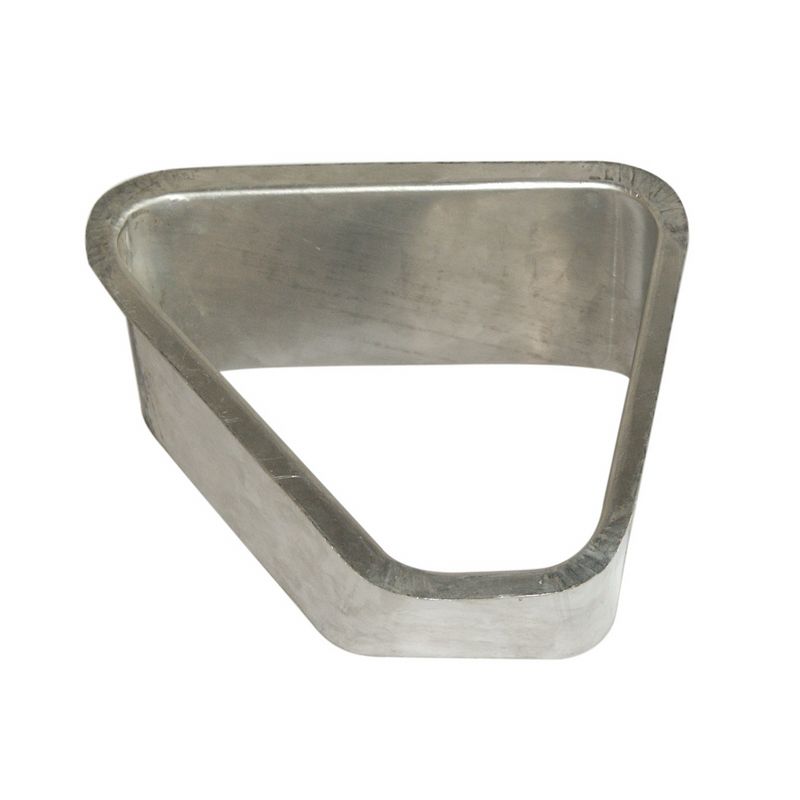

DUCT FRONT WING RALLY TR4 PAIR. Fits TR4-6Revington TR information: Pair of front wing vent ducts, aluminium as used on works cars TR4 rally cars. Note that grill RTR7060 (two required) is shown for reference only in the photos and can be bought separately. Suitable for... READ MORE |
£492.32 Ex VAT @ 20% |
|
 |
RTR7060
|
GRILLE FR.WING VENT DUCT TR4 EACHRevington TR information: Grill for front wing ducts. This grill is made to the same pattern as those used by Triumph on the works TR4 rally cars. The grill will need to be cut to fit each individual wing... READ MORE |
£125.33 Ex VAT @ 20% |
|
|
RTR7060SH
|
GRILLE SH |
£65.96 Ex VAT @ 20% |
|
 |
RTR7019K
|
DUCT AND GRILL KIT TR4-6 FRONT WINGSRevington TR information: Pair of front wing vent ducts, aluminium as used on works cars TR4 rally cars. This kit includes the grills, fittings and instructions to ensure fitting is executed exactly as the works TR4's. Suitable for TR4-6... READ MORE |
£675.95 Ex VAT @ 20% |
|
|
RTR7066K
|
DRAINAGE KIT TR4-6 F WNGS CAR SETRevington TR information: TR4-6 front wing drain kit. Triumph designed the front inner wing drains to exit directly onto the top of the hidden sill area, which soon rots away. This neat kit changes the exit point to outside... READ MORE |
||
 |
RTR7086
|
AIR SCOOPRevington TR information: Air scoop replacing air vent as used on TR4 Works Rally Cars. |
£531.30 Ex VAT @ 20% |
|
|
RTR7160
|
RETAINER BATTERY SIDE TR4 RALLYRevington TR information: Battery side support. 2 required. |
£23.84 Ex VAT @ 20% |
|
 |
RTR7258K
|
NACELLE FRONT WHEELARCH TR4-4ARevington TR information: TR4-4A Nacelle RH front wheelarch. For use when an Air Box or large air filters are fitted. This scoop 9 correctly called a nacelle) is designed to be set into a cut-out made in the wheel... READ MORE |
£249.97 Ex VAT @ 20% |
|
|
812775 |
DOOR SKIN STEEL LH TR250, 5, 6Revington TR information: Door skin steel LH. These steel door skins are TR250, TR5 and TR6 parts as they are pierced to accept TR5-6 door handles and separate locks. As the overall door shape of the TR4-4A is the... READ MORE |
£279.19 Ex VAT @ 20% |
|
|
812776 |
DOOR SKIN RH TR5-6Revington TR information: Door skin steel RH. These steel door skins are TR250, TR5 and TR6 parts as they are pierced to accept TR5-6 door handles and separate locks. As the overall door shape of the TR4-4A is the... READ MORE |
£396.82 Ex VAT @ 20% |
|
 |
RTR7161
|
SKIN DOOR TR4, 4A, 250, 5, 6 ALLY LHRevington TR information: Door skin aluminium LH. These aluminium door skins are un-pierced and are therefore suitable for all TR4, 4A, 250, 5 and 6. The door handle and lock holes appropriate to either TR4-4A or TR5-6 will need... READ MORE |
£190.66 Ex VAT @ 20% |
|
 |
RTR7162
|
SKIN DOOR TR4, 4A, 250, 5, 6 ALLY RHRevington TR information: Door skin aluminium RH. These aluminium door skins are un-pierced and are therefore suitable for all TR4, 4A, 250, 5 and 6. The door handle and lock holes appropriate to either TR4-4A or TR5-6 will need... READ MORE |
£190.66 Ex VAT @ 20% |
|
|
RTR7073
|
DOOR AL RALLY TR4Revington TR information: Aluminium complete door LH Special order only Ring for current price Manufacture of these aluminium doors is very labour intensive. In an effort to keep the cost down, the inner frame has been simplified. With a... READ MORE |
£1995.95 Ex VAT @ 20% |
|
|
RTR7074
|
DOOR RH ALLY RALLY TR4Revington TR information: Aluminium complete door RH Special order only Ring for current price Manufacture of these aluminium doors is very labour intensive. In an effort to keep the cost down, the inner frame has been simplified. With a... READ MORE |
£1995.95 Ex VAT @ 20% |
|
|
RTR7126
|
WINDOW DOOR FLEXIGLAS TR4-6 eachRevington TR information: TR4-6 Flexiglass door window. To suit TR4-4A, the window needs trimming at the base to conform to the TR4-4A profile. A scribe line is provided to show the material that needs removing. Our Flexiglass version of... READ MORE |
£160.75 Ex VAT @ 20% |
|
|
RTR7272
|
WINGLET TR4-6 SIDE WINDOW PERSPEX, PAIRRevington TR information: This pair of small winglets are rivited to the top of the windscreen frame to stop the window moving out at speed. The winglets are made from Stainless Steel and are needed only when plastic side... READ MORE |
£38.05 Ex VAT @ 20% |
|
|
903979AL |
ROOF PANEL TR4-5 ALLYRevington TR information: Tr4, 4A, 250, 5 Roof panel hard top aluminium. Steel roof panels are not available, please use this hand made aluminium part or the fibreglass alternative 903979FG. With many cars having been rebuild at least once... READ MORE |
||
|
850475AL |
WING REAR TR4, 4A, 250, 5 LH ALLY.Revington TR information: Aluminium TR4, 4A, 250 and 5 Rear Outer Wing left hand. To enable this panel to be universally used on all TR4-5 models, the piercings for the wing lamp (250 and 5) have been omitted and... READ MORE |
£1626.74 Ex VAT @ 20% |
|
|
850476AL |
RR WING RH TR4, 4A, 250, 5 ALLYRevington TR information: Aluminium TR4, 4A, 250 and 5 Rear Outer Wing right hand. To enable this panel to be universally used on all TR4-5 models, the piercings for the wing lamp (250 and 5) have been omitted and... READ MORE |
£1626.74 Ex VAT @ 20% |
|
|
RTR7544K
|
KIT SECURING TR4-5 R WING, NO BUMPERRevington TR information: This kit comprises two chrome dome headed bolts, nuts and washers to attach the rear wings to the side chassis stay when a rear bumper is not fitted. |
£12.95 Ex VAT @ 20% |
|
 |
908031AL |
BONNET ALL ALLY INC FRAME TR4-5Revington TR information: Aluminium bonnet with aluminium frame. (avauilable December 2015) Whilst Revington TR will happily supply a complete bonnet 908031AL, we prefer to supply the frame 908031ALF and skin 908031ALS separately so the frame and skin can be... READ MORE |
£5217.32 Ex VAT @ 20% |
|
 |
908031ALW |
BONNET ALLY SKIN STEEL FRAME TR4-5Revington TR information: Aluminium bonnet with lightened steel frame taken from an original steel bonnet an allowance will be made for your old bonnet. This is the type of bonnet used on the TR4 Works Rally cars. The early... READ MORE |
£4925.71 Ex VAT @ 20% |
|
|
908031ALF |
FRAME ONLY ALLY TR4-5 BONNETRevington TR information: Aluminium frame only. This frame is the late type with receptors to accommodate cone type rear support pins. The earlier type suitable for flat top pins can be made to special order. |
£2435.66 Ex VAT @ 20% |
|
 |
908031ALS |
SKIN BONNET ALLY TR4-5Revington TR information: Aluminium bonnet skin only, late type with the longer bulge The early TR4 bonnet has a much shorter bulge and no accomodation at the back for cone shaped bonnet pins. The correct bonnet pins are... READ MORE |
£3501.26 Ex VAT @ 20% |
|
|
RTR7246K
|
CATCH SET DZUS BONNET RALLY TR4Revington TR information: Bonnet twist lock set consisting of: - 2 off Bonnet Dzus catches with long tail, 2 off Dzus retainers, 2 off Support plate under bulkhead lip (left and Right handed) and all necessary fasteners. |
£422.36 Ex VAT @ 20% |
|
 |
RTR7263K
|
BUFFER SET BONNET RALLY TR4Revington TR information: Set of bonnet springs and plates to spring up the bonnet when Rally type bonnet hold down catches are used. This is the type of kit used on TR4 works rally cars. RTR7246K is a typical... READ MORE |
£330.43 Ex VAT @ 20% |
|
 |
RTR7078
|
BONNET STRENGTHENING KIT TR4-5Revington TR information: This TR4, 4A, 250 and 5 Bonnet strengthening kit prevents the rear edge of the bonnet from cracking. Two parts, a left and a right hand strengthener and fitting instructions are included it he kit |
£139.74 Ex VAT @ 20% |
|
|
RTR7540
|
BRACKET STRENGTHENER STRG COL SUPPORRevington TR information: TR4-6 Strengthener, welds on to 815834SB and 815835SB, steering column support prevents the standard bracket from cracking. This is a hand made part made in very small quantities and is usually only needed on cars likely... READ MORE |
£100.27 Ex VAT @ 20% |
|
|
813650AL |
BOOT LID ALUMINIUM TR4, 4A, 250, 5Revington TR information: Aluminium boot lid TR4, 4A, 250 and 5. This boot lid is a facsimile of the steel boot lid but made of aluminium as per the works TR4 Rally cars with the exception of being finished... READ MORE |
£1336.31 Ex VAT @ 20% |
|
 |
RTR7072
|
BOOT LID RALLY TR4Revington TR information: Aluminium boot lid with extra large hinge plinths. |
£1488.28 Ex VAT @ 20% |
|
 |
RTR7117
|
HINGES BOOT/PR TR4 RALLYRevington TR information: Pair of large boot hinges suitable for replica TR4 works rally cars. This part number covers the type of hinges used on the works TR4 rally cars. We make these hinges to special order but they... READ MORE |
£295.51 Ex VAT @ 20% |
|
|
RTR7020
|
TANK SUPPORT RALLY TR4Revington TR information: Tank support fits between sides of boot and supports rear of 18-gallon tank. |
||
|
RTR7123SW
|
SCREEN REAR ACRYLIC TR4,4A,250,5Revington TR information: TR4, 4A, 250 and 5 Acrylic rear screen, fitting into the backlight frame. Replaces 902343. Made from high specification acrylic sheet, fully formed in double curvature, in the same way as the original glass screens are.... READ MORE |
£464.39 Ex VAT @ 20% |
|
|
RTR7123LW
|
PERSPEX SURREY BACKLIGHT LIGHTWTRevington TR information: Acrylic backlight screen lightweight. Made to the same specification as RTR7123SW but 3.25mm thick and weighing just 1.8kg. Supplied to special order only Revington TR recommends this Acrylic rear screen window for race or serious rally... READ MORE |
£586.07 Ex VAT @ 20% |
|
|
613277X |
SEAL BOOT TR4-5 SNAPON TYPERevington TR information: This 'snap on' type seal is an alternative to 613277. Whilst not original it makes a beater air tight seal. Some cars suffer from fume entering the car form the exhaust pipe. 613277X will help to... READ MORE |
£58.33 Ex VAT @ 20% |
|
 |
RTR7117-1
|
HINGES BOOT/PR TR4 RALLY SMALLRevington TR information: Pair of large boot hinges suitable for TR4-5. We sell under this part number a smaller version of the type of hinges used on the works TR4 rally cars. The correct hinges part number RTR7117... READ MORE |
£181.70 Ex VAT @ 20% |
