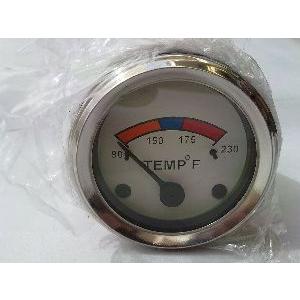

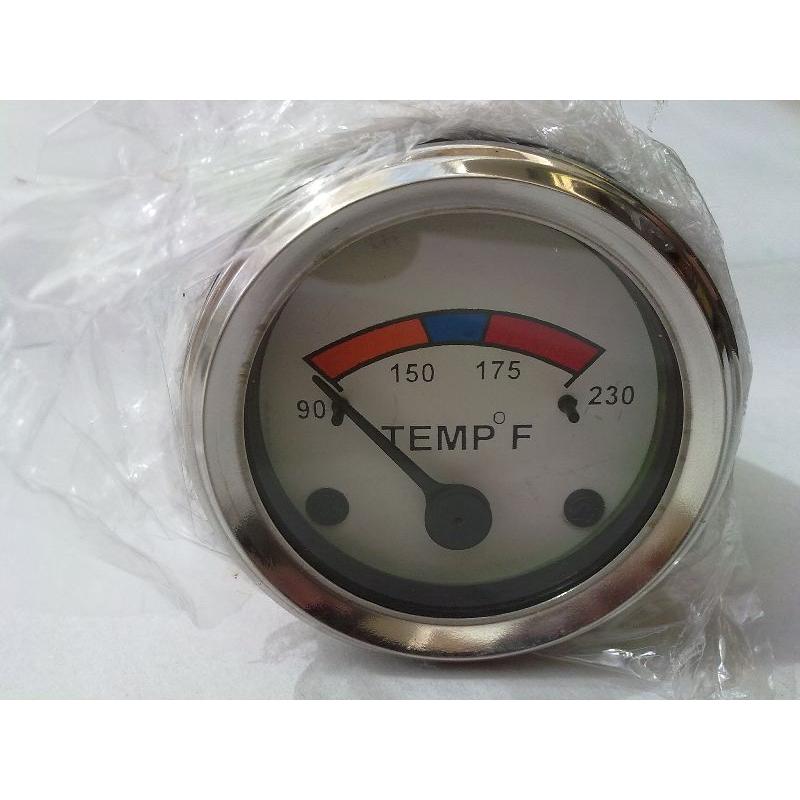

Temperature gauge TR2,3,3A,3B,will also fit TR4,4A. Capillary type, white face. Calibrated in degrees Fahrenheit. 52 mm diameter. No exchange required, Keep one as a spare at this price !
It is not meant to be a direct replacement but maybe used while you have your own repaired. In terms of fitting it is a direct replacement but we realise the appearance is nothing like the original.The length of the capillary tube is 72" from the back of the gauge to the back of the nut. Revington TR recommends fitting Brass Adaptor RTR8155 between the gland nut and the thermostat housing. See below.
Electrical systems, Instruments etc.
44 plates in total
Related Products
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
RTR8155
|
ADAPTOR MALE/FEMALE BRASSRevington TR information: Adaptor male/female brass 5/8"UNF to 5/8"UNF to enable easy removal of temperature gauge bulb from aluminium thermostat housing on TR2-3B. This adaptor is primarily intended for use on TR2-3B with an aluminium thermostat housing where the... READ MORE |
£10.68 Ex VAT @ 20% |
|
 |
106965EX |
GAUGE TEMP degrees F TR2-3B EXCH.Revington TR information: Consider using modern style gauge calibrated in degrees Fahrenheit, part number 110895X. Revington TR recommends fitting Brass Adaptor RTR8155 between the gland nut and the thermostat housing. |
£263.78 Ex VAT @ 20% |
