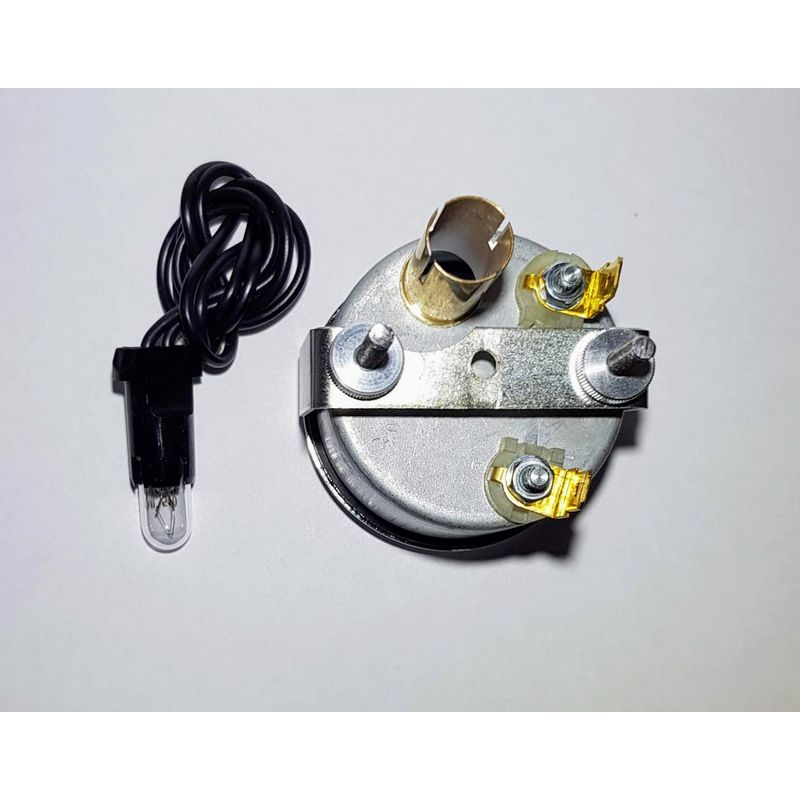

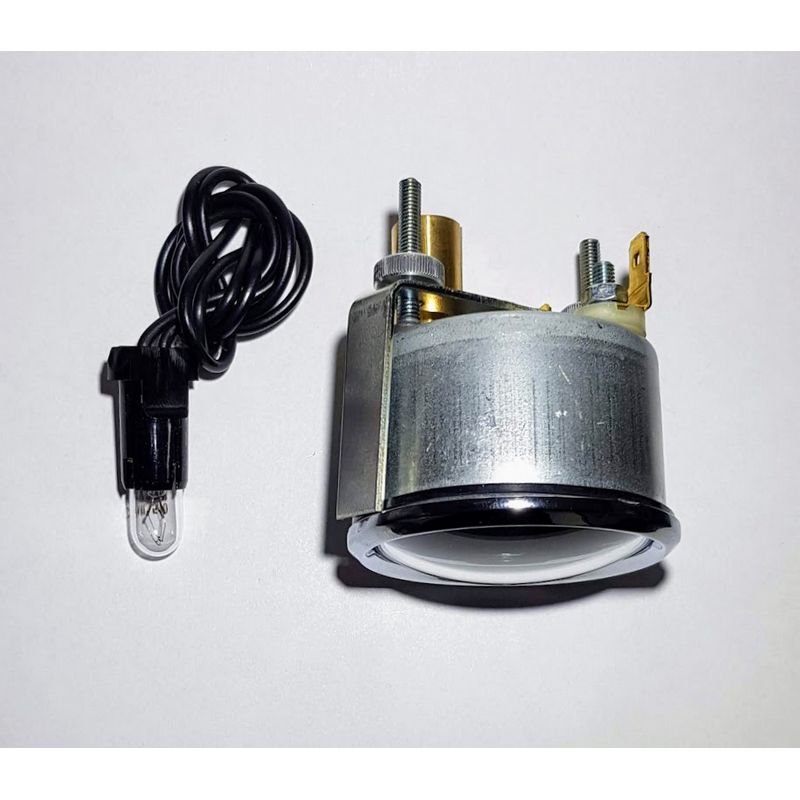

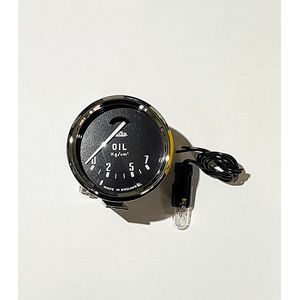

TR2-3B New Oil pressure Gauge metric reading, electrically operated. The clamps and bulb/holder for internal illumination are included. This oil pressure gauge looks exactly the same as an original instrument but is driven electrically from a sender unit attached to the engine where the standard oil feed pipe would fit.

This electrical oil pressure instrument is easier to fit and improves dash area maintainability by removing the need to attach a solid pipe to the instrument behind the dashboard.

An electrical sender unit  RTRI8011 is required.

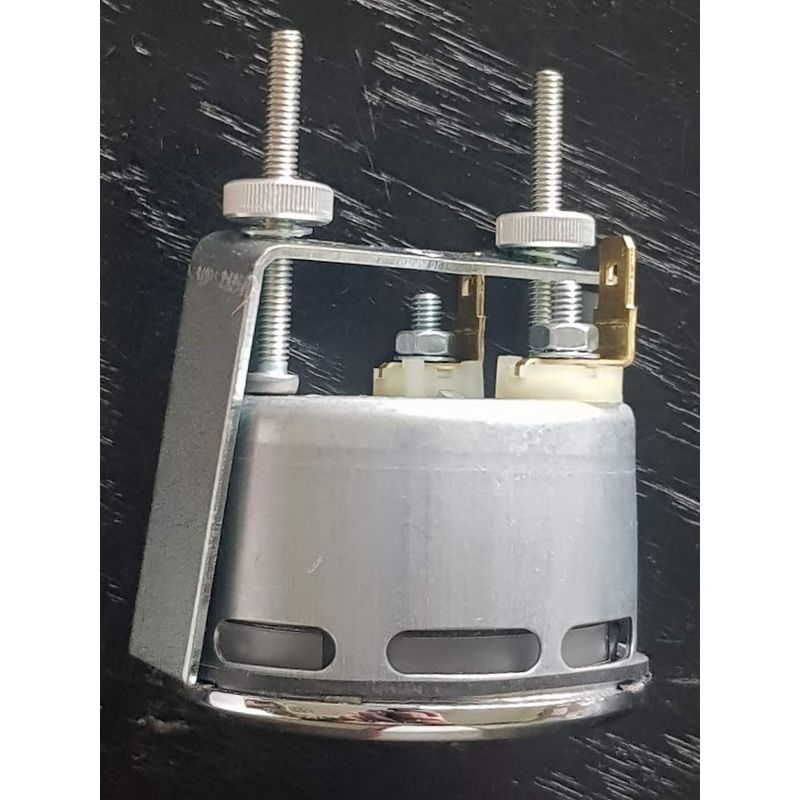

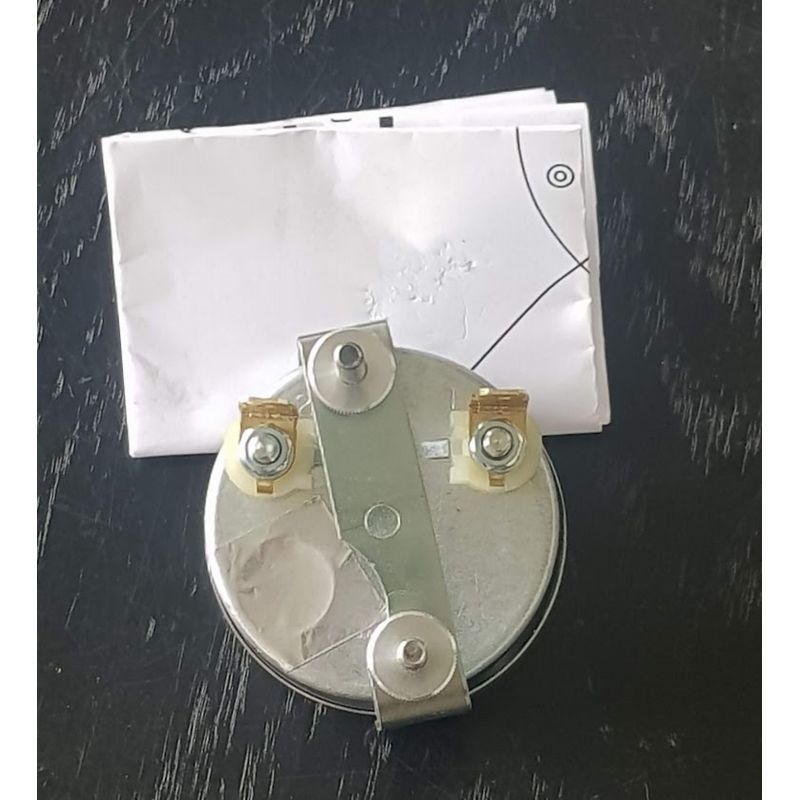

Our new instruments are supplied with superior internal illumination. If however you prefer the instrument to be pieced so that the original external illumination can be used, this can be done at a extra charge. See RTR8572 below. This instrument does not need to be fed via a voltage regulator

This part is listed on the following page of the website, where further information and background reading may be found.
