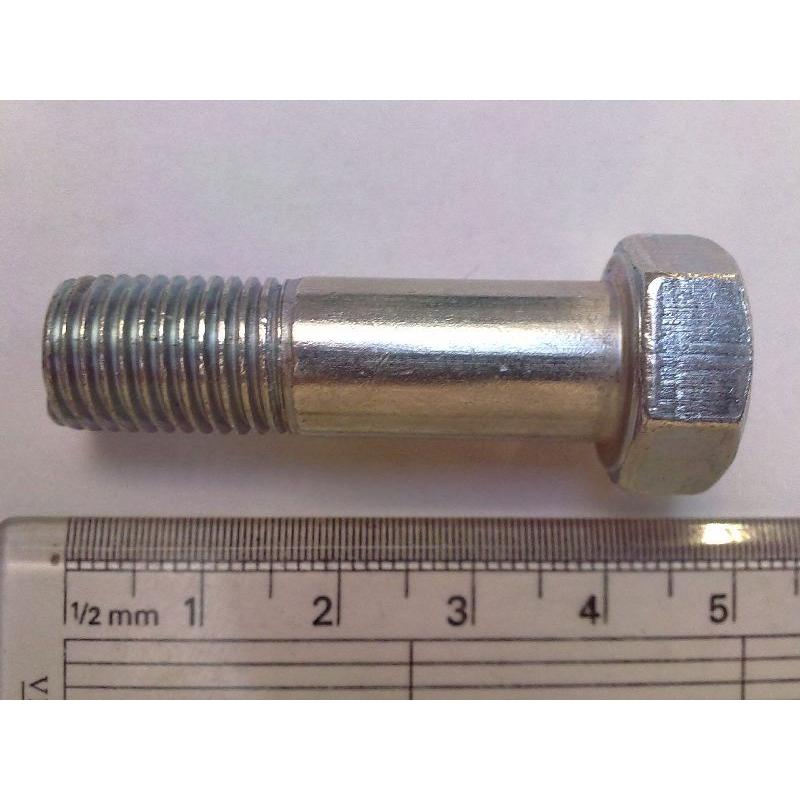

BOLT CALIPER TR4/6 16P LATE TYPE
IN STOCK This part is immediately available
These bolts come in 2 lengths for either early or late calliper attachment. This part number is the TR4-6 late bolt at 1 1/2" long. The early short bolt has a thread length of 1-1/4" (32mm) and the later longer bolt has a thread length of 1-1/2" (38mm). Please see linked parts.
Please be aware these bots are special as they have exact sized shanks to properly locate the caliper. Ordinary commercial grade bolts should not be used and screws with no shank should NEVER be used.
Calipers were usually attached with a spring washer WS107121203 under the head of the bolt; however on some early cars a tab washer 560199 was used. Either locking device can be used.
To view the Triumph Catalogue Plates, please pick a car type
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
113142E |
BOLT CALIPER TR3/3A EARLY CALIPERSRevington TR information: These bolts come in 2 lengths for either early or late calliper attachment. This part number is the TR3 and TR3A early bolt and is shorter than 113142L. The early short bolt has a length of... READ MORE |
£5.92 Ex VAT @ 20% |
|
|
113142ESH |
/Second Hand BOLT CALIPER TR3/3A EARLY CALIPERS |
£3.29 Ex VAT @ 20% |
|
 |
158668 |
BOLT CALIPER TR6LATE Metric shank imperial threadRevington TR information: This bolt fits the 16PB Caliper. The hole for the caliper bolt is slightly larger than earlier versions. The head size is also larger The numbers below are the bolts for the earlier calipers. |
£10.14 Ex VAT @ 20% |
|
|
158668SH |
Second Hand CALIPER BOLT TR6 LATE |
£6.04 Ex VAT @ 20% |
|
|
560199 |
TAB WASHER |
£1.48 Ex VAT @ 20% |
|
|
WS107121203 |
WASHER SPRING 7/16" RECT SECTION |
£0.42 Ex VAT @ 20% |
