LHD WIPER ARM TR3-3B HEAVY DUTY Wedge lock, spoon end

Part No:
114488X

NOT AVAILABLE This part is no longer available

Image 1
4 images

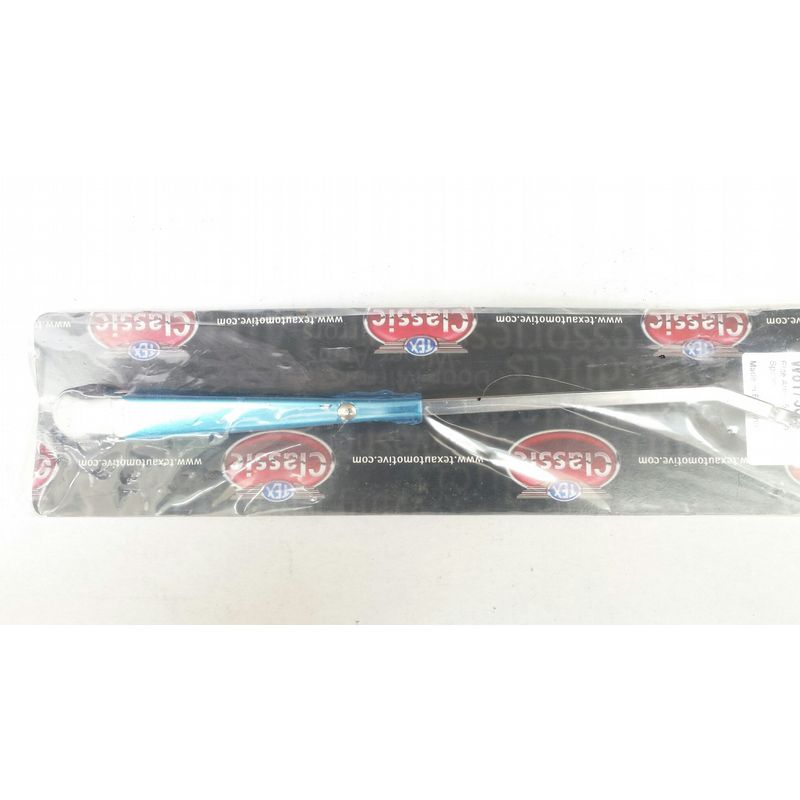

TR3-3B wiper arm heavy duty, Left Hand Drive (LHD). Wedge lock type drive head, length: 241mm, spoon type blade, 5.2mm wide. Choose this arm if you want extra pressure on the windscreen with a near original look and have worn drive spindle bosses.

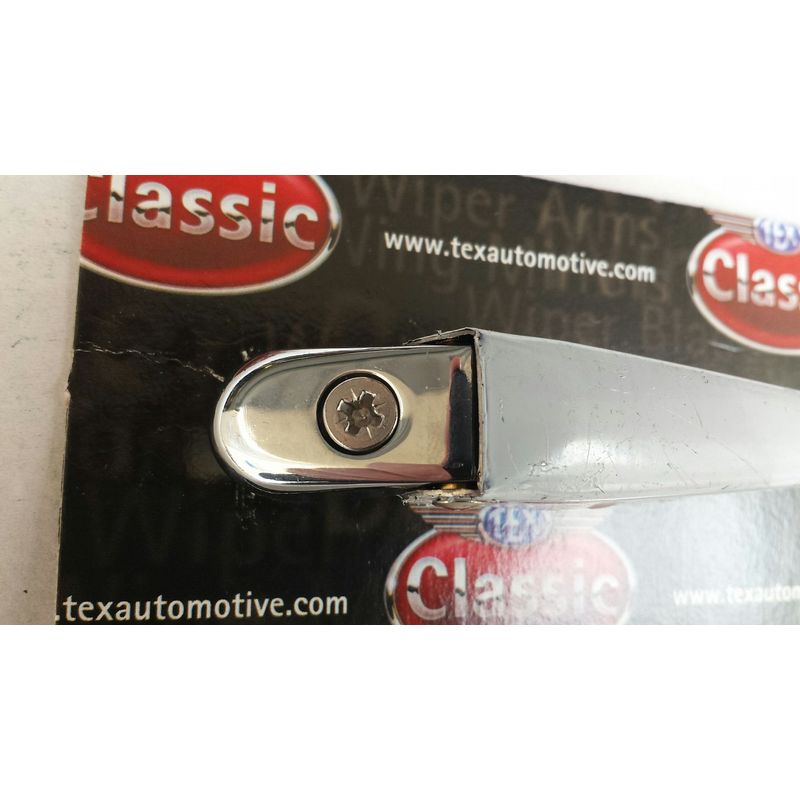

The original blades exert low pressure to the windscreen and are apt to allow the blade to rise off the windscreen at speed. These arms will prevent that happening as they incorporate an internal coil spring. The wedge lock feature provides a serrated wedge acting on the drive boss, tightened by an external screw. When the screw is tightened the wedge is forced against the boss for a firm fit however worn the boss is.

Be aware that your wiper motor must be able to overcome the extra pressure required to move these arms and their blades over the windscreen. A worn motor may not be up to the job.


 Technical Description

  • Drive Head: Push On with wedge lock
  • Length: 241mm
  • Blade Fitting: Spoon
  • Arm Width: 5.2mm
  • Degrees of Crank: 20
  • Direction of crank: Right
  • How To Measure The Length: Centre of drive to the centre of the spoon

For a complete solution, use these arms in conjunction with blades GWB215 and our improved wiper motor kit RTR8395-AK

This arm can be purchased without he wedge lock feature. See 114488-1 below
