WIPER ARM RH TR4-5 RHD straight

Part No:

131105

Price

£39.80

Price Ex VAT @ 20%

£33.17

IN STOCK This part is immediately available

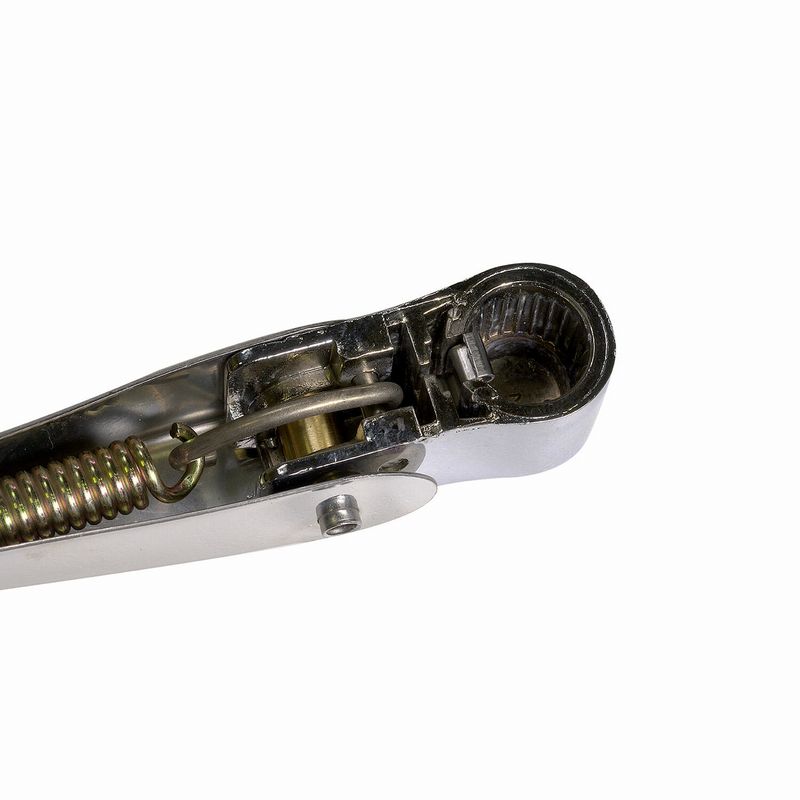

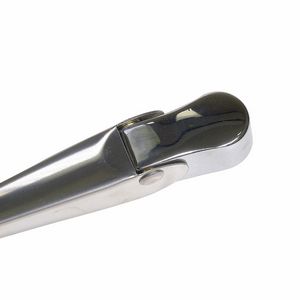

2 images

TR4, 4A, 250 and 5 Right Hand Wiper Arm for Right Hand Drive cars, standard type.

This arm is straight with a slight crank at the end of the arm. It is 11" long from the centre line of the spindle to the end of the arm.

Consider using heavy-duty part 131105X which has a wedge lock boss.

Technical Description

Drive Head: Push On
Length: 297mm
Blade Fitting: Bayonet
Arm Width: 5.2mm
Degrees of Crank: 15
Direction of crank: Left
How To Measure The Length: Centre of drive to the end of the arm

For a complete solution, use these arms in conjunction with blades GWB219 with insert RTR8521-40 and our improved wiper motor kit RTR8395-BK for TR4-4A and RTR8395-CK for TR250 and TR5.

If you have worn serrated wiper wheel box spindle drive bosses, resulting in the arms being a loose fit, this can be overcome by fitting wedge lock arms 131105X

To view the Triumph Catalogue Plates, please pick a car type

Part No.	Description and Comments	Price	Add to Cart
GWB219 CLICK FOR MORE INFO	WIPER BLADE TR4, 4A, 250 and 5 STAINLESS steel 10" Revington TR information: Windscreen Wiper Blade to suit narrow wiper arm fitted to TR4, 4A ,250 and 5 (as opposed to the slightly thicker arm used on TR6), Bright finish. Consider also modern silicone rubber insert RTR8521-40. This inset... READ MORE	£20.70 Ex VAT @ 20% £17.25	Available to order
RTR8521-40 CLICK FOR MORE INFO	WIPER REFILL SILICONE 16"	£15.00 Ex VAT @ 20% £12.50
RTR8395-BK CLICK FOR MORE INFO	WIPER UPGRADE KIT TR4-4A Revington TR information: Conversion Kit to upgrade the wiper system to replace the notoriously poor standard Motor and Wheelbox with a Heavy Duty Motor and Wheelboxes. The kit Includes all fittings and Instructions. TR4 and TR4A Wiper Systems are... READ MORE	£1068.72 Ex VAT @ 20% £890.60	Available to order
RTR8395-CK CLICK FOR MORE INFO	WIPER UPGRADE KIT TR250,5 Revington TR information: Conversion Kit to upgrade the wiper system to replace the notoriously poor standard Motor and Wheelboxes with a Heavy Duty Motor and Wheelboxes. The kit includes all fittings and Instructions. TR5 and TR250 Wiper Systems are... READ MORE	£994.80 Ex VAT @ 20% £829.00	Available to order
131105X CLICK FOR MORE INFO	WIPER ARM TR4/5 RH, RHD straight HEAVY DUTY Wedge lock Revington TR information: TR4, 4A, 250 and 5 Right Hand Wiper Arm for Right Hand Drive cars. Heavy-duty design incorporating a Wedge Lock type drive head incorperating a screwed clamp to the serrated spindle. The wedge Lock feature provides... READ MORE	£55.30 Ex VAT @ 20% £46.08	Available to order
131106 CLICK FOR MORE INFO	WIPER ARM LH TR4/5 RHD cranked Revington TR information: TR4, 4A, 250 and 5 Left Hand Wiper Arm for Right Hand Drive cars, standard type. This arm has a 38° cranked bend to avoid the vent flap when open. Consider using heavy-duty part 131106X... READ MORE	£39.80 Ex VAT @ 20% £33.17
131106X CLICK FOR MORE INFO	WIPER ARM TR4/5 LH, RHD cranked HEAVY DUTY wedge lock Revington TR information: TR4, 4A, 250, 5 Left Hand Wiper Arm for Right Hand Drive cars uprated. Heavy-duty design incorporating a Wedge Lock type drive head incorperating a screwed clamp to the serrated spindle. The wedge Lock feature provides... READ MORE	£55.30 Ex VAT @ 20% £46.08

GWB219

CLICK FOR
MORE INFO

WIPER BLADE TR4, 4A, 250 and 5 STAINLESS steel 10"

Revington TR information: Windscreen Wiper Blade to suit narrow wiper arm fitted to TR4, 4A ,250 and 5 (as opposed to the slightly thicker arm used on TR6), Bright finish. Consider also modern silicone rubber insert RTR8521-40. This inset... READ MORE

£20.70

Ex VAT @ 20%
£17.25

RTR8521-40

CLICK FOR
MORE INFO

WIPER REFILL SILICONE 16"

£15.00

Ex VAT @ 20%
£12.50

RTR8395-BK

CLICK FOR
MORE INFO

WIPER UPGRADE KIT TR4-4A

Revington TR information: Conversion Kit to upgrade the wiper system to replace the notoriously poor standard Motor and Wheelbox with a Heavy Duty Motor and Wheelboxes. The kit Includes all fittings and Instructions. TR4 and TR4A Wiper Systems are... READ MORE

£1068.72

Ex VAT @ 20%
£890.60

RTR8395-CK

CLICK FOR
MORE INFO

WIPER UPGRADE KIT TR250,5

Revington TR information: Conversion Kit to upgrade the wiper system to replace the notoriously poor standard Motor and Wheelboxes with a Heavy Duty Motor and Wheelboxes. The kit includes all fittings and Instructions. TR5 and TR250 Wiper Systems are... READ MORE

£994.80

Ex VAT @ 20%
£829.00

131105X

CLICK FOR
MORE INFO

WIPER ARM TR4/5 RH, RHD straight HEAVY DUTY Wedge lock

Revington TR information: TR4, 4A, 250 and 5 Right Hand Wiper Arm for Right Hand Drive cars. Heavy-duty design incorporating a Wedge Lock type drive head incorperating a screwed clamp to the serrated spindle. The wedge Lock feature provides... READ MORE

£55.30

Ex VAT @ 20%
£46.08

131106

CLICK FOR
MORE INFO

WIPER ARM LH TR4/5 RHD cranked

Revington TR information: TR4, 4A, 250 and 5 Left Hand Wiper Arm for Right Hand Drive cars, standard type. This arm has a 38° cranked bend to avoid the vent flap when open. Consider using heavy-duty part 131106X... READ MORE

£39.80

Ex VAT @ 20%
£33.17

131106X

CLICK FOR
MORE INFO

WIPER ARM TR4/5 LH, RHD cranked HEAVY DUTY wedge lock

Revington TR information: TR4, 4A, 250, 5 Left Hand Wiper Arm for Right Hand Drive cars uprated. Heavy-duty design incorporating a Wedge Lock type drive head incorperating a screwed clamp to the serrated spindle. The wedge Lock feature provides... READ MORE

£55.30

Ex VAT @ 20%
£46.08

Car Type	Plate	Plate Title	Plate No.	Triumph Part Description	No per Unit
TR4	AD	ELECTRICAL EQUIPMENT: WINDSCREEN WIPER ASSEMBLY.	ADI5	Wiper arm - R.H. R.H.S.	1
TR4A	AL	ELECTRICAL EQUIPMENT: WINDSCREEN WIPER ASSEMBLY.	AL24	Wiper arm R.H. R.H.S.	1
TR5	AK	ELECTRICAL EQUIPMENT: WINDSCREAN WIPER MOTOR, GEARBOXES BLADES AND ARMS	AK24	Arm, wiper R.H. Bright finish-R.H.S. only	1
