WIPER ARM TR4/5 RH, LHD cranked HEAVY DUTY wedge lock

Part No:

131107X

Price

£55.30

Price Ex VAT @ 20%

£46.08

AVAILABLE This part is available to order

3 images

About This Part

TR4, 4A, 250, 5 Right Hand Wiper Arm for Left Hand Drive cars uprated. Heavy-duty design incorporating a Wedge Lock type drive head incorperating a screwed clamp to the serrated spindle.

The wedge Lock feature provides a serrated wedge acting on the drive boss, tightened by an external screw. When the screw is tightened the wedge is forced against the boss for a firm fit however worn the boss is, ideal when the aluminium serrated spindle head is worn and will not hold a standard arm. All Rally cars should use this arm.

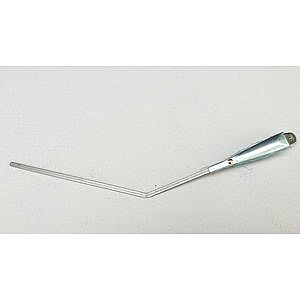

This arm has a 38° cranked bend to avoid the vent flap when open.

Technical Description

Drive Head: Wedge Lock
Length: 305mm
Blade Fitting: Bayonet
Arm Width: 5.2mm
Degrees of Crank: 38 in the middle of the arm, none at the bayonet end
Direction of crank: Right
How To Measure The Length: Centre of drive to the end of the arm

For a complete solution, use these arms in conjunction with blades GWB219 with insert RTR8521-40 and our improved wiper motor kit RTR8395-BK for TR4-4A and RTR8395-CK for TR250 and TR5.

No catalogue plates are available

Part No.	Description and Comments	Price	Add to Cart
131108X CLICK FOR MORE INFO	WIPER ARM TR4, 4A, 5, 250 LH, LHD straight HEAVY DUTY wedge lock Revington TR information: TR4, 4A, 250 and 5 Left Hand Wiper Arm for Left Hand Drive cars. Heavy-duty design incorporating a Wedge Lock type drive head incorperating a screwed clamp to the serrated spindle. The wedge Lock feature provides... READ MORE	£55.30 Ex VAT @ 20% £46.08	Available to order
GWB219 CLICK FOR MORE INFO	WIPER BLADE TR4, 4A, 250 and 5 STAINLESS steel 10" Revington TR information: Windscreen Wiper Blade to suit narrow wiper arm fitted to TR4, 4A ,250 and 5 (as opposed to the slightly thicker arm used on TR6), Bright finish. Consider also modern silicone rubber insert RTR8521-40. This inset... READ MORE	£20.70 Ex VAT @ 20% £17.25	Available to order
RTR8521-40 CLICK FOR MORE INFO	WIPER REFILL SILICONE 16"	£15.00 Ex VAT @ 20% £12.50	Available to order
RTR8395-BK CLICK FOR MORE INFO	WIPER UPGRADE KIT TR4-4A Revington TR information: Conversion Kit to upgrade the wiper system to replace the notoriously poor standard Motor and Wheelbox with a Heavy Duty Motor and Wheelboxes. The kit Includes all fittings and Instructions. TR4 and TR4A Wiper Systems are... READ MORE	£1068.72 Ex VAT @ 20% £890.60	Available to order
RTR8395-CK CLICK FOR MORE INFO	WIPER UPGRADE KIT TR250,5 Revington TR information: Conversion Kit to upgrade the wiper system to replace the notoriously poor standard Motor and Wheelboxes with a Heavy Duty Motor and Wheelboxes. The kit includes all fittings and Instructions. TR5 and TR250 Wiper Systems are... READ MORE	£994.80 Ex VAT @ 20% £829.00	Available to order
131107 CLICK FOR MORE INFO	ARM WIPER RH FOR LHD TR4-5 cranked Revington TR information: TR4, 4A, 250 and 5 Right Hand Wiper Arm for Left Hand Drive cars, standard type. This arm has a 38° cranked bend to avoid the vent flap when open and has a slight crank... READ MORE	£39.80 Ex VAT @ 20% £33.17
131108 CLICK FOR MORE INFO	WIPER ARM LH FOR LHD TR4, 4A, 5, 250. straight Revington TR information: TR4, 4A, 250 and 5 Left Hand Wiper Arm for Left Hand Drive cars, standard type. This arm is straight with a slight crank at the end of the arm. It is 11" long from... READ MORE	£39.80 Ex VAT @ 20% £33.17
