WIPER ARM TR4, 4A, 5, 250 LH, LHD straight HEAVY DUTY wedge lock

Part No:
131108X
Price
£55.30
Price Ex VAT @ 20%
£46.08

AVAILABLE This part is available to order

Image 1
2 images

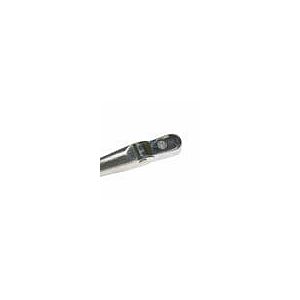

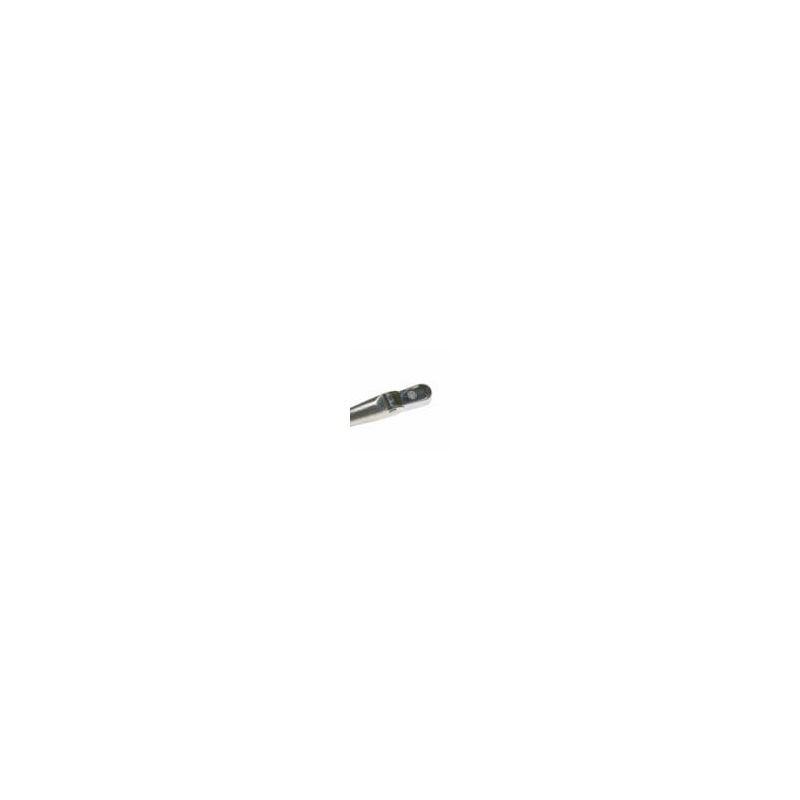

TR4, 4A, 250 and 5 Left Hand Wiper Arm for Left Hand Drive cars. Heavy-duty design incorporating a Wedge Lock type drive head incorperating a screwed clamp to the serrated spindle.

The wedge Lock feature provides a serrated wedge acting on the drive boss, tightened by an external screw. When the screw is tightened the wedge is forced against the boss for a firm fit however worn the boss is, ideal when the aluminium serrated spindle head is worn and will not hold a standard arm. All Rally cars should use this arm.

This arm is straight with a slight crank at the end of the arm. It is 11" long from the centre line of the spindle to the end of the arm.

Technical Description

  • Drive Head: Push On
  • Length: 297mm
  • Blade Fitting: Bayonet
  • Arm Width: 5.2mm
  • Degrees of Crank: 15
  • Direction of crank: Right
  • How To Measure The Length: Centre of drive to the end of the arm

For a complete solution, use these arms in conjunction with blades GWB219 with insert RTR8521-40 and our improved wiper motor kit RTR8395-BK for TR4-4A and RTR8395-CK for TR250 and TR5.
