WASHER DIFF 0.027" thich TR2-6
IN STOCK This part is immediately available

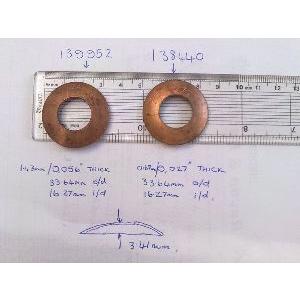

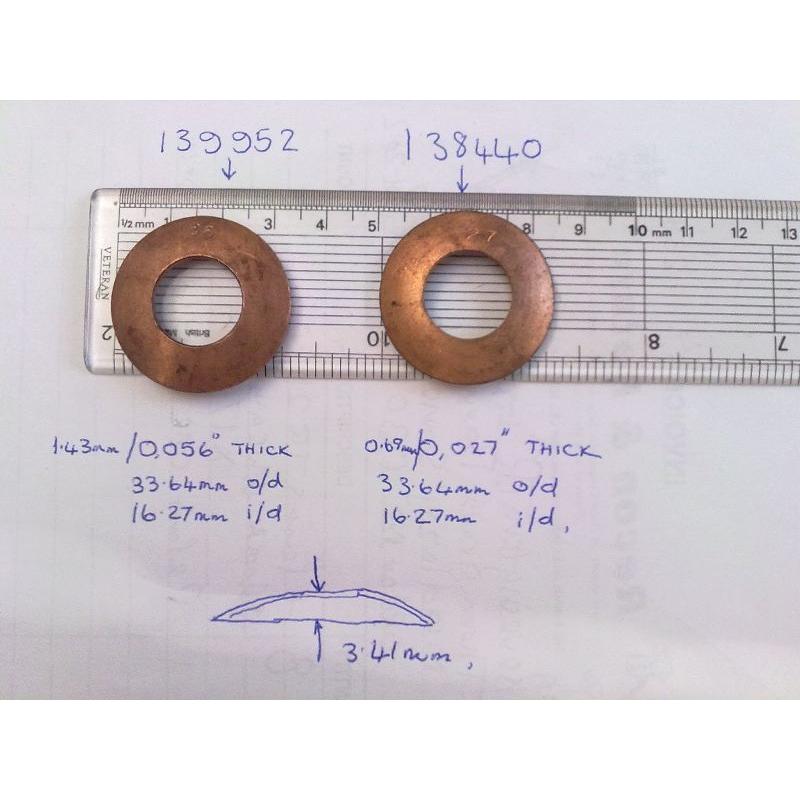

Thrust Washer 0.027" ( 0.686mm) thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm.
The Differential fitted to TR2 8, Dolomite 2.5PI etc. use a common arrangement of thrust washers in conjunction with pinion gears (100823 or 153385). A complete range of thicknesses is shown below allowing excessive wear to be eliminated by use of one or a combination of thrust washers.
138440 0.027 ' 139952 0.056
147249 0.030 139953 0.060"
138441 0.035" 139954 0.064"
148805 0.041" 160375 0.065-67"
056793 0.048 139955 0.068"
139951 0.052" 139956 0.072"
TR s TR2-3- with a Lockheed axle use pinion gear 100823
Engine, Transmission, wheels/Tyres and Heating/Cooling
To view the Triumph Catalogue Plates, please pick a car type
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
056793 |
DIFF PINION THRUST 0.048 INCHThis item has been superceded by 139951 - see below |
||
|
139951 |
THRUST WASHER 51/53 THOURevington TR information: Thrust washer 0.052" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE |
£9.07 Ex VAT @ 20% |
|
|
153385SH |
GEAR DIFF PLANET TR3-6 SHRevington TR information: Please consider complete differential carrier assemblies 302155X and 302155XSH. . |
£62.45 Ex VAT @ 20% |
|
|
100823SH |
Second Hand DIFF PLANET GEAR TR2Revington TR information: A selection of various thicknesses of cupped washer are available from which suitable sizes can be selected as required to give zero backlash The Differential fitted to TR2 8, Dolomite 2.5PI etc. use a common arrangement... READ MORE |
£68.14 Ex VAT @ 20% |
|
|
138441 |
SHIM 0.035"Revington TR information: Thrust Washer 0.035" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE |
£5.28 Ex VAT @ 20% |
|
|
160375 |
THRUST 65-67 THOURevington TR information: Thrust Washer 0.065-67" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE |
£7.01 Ex VAT @ 20% |
|
|
147249 |
THRUST WASHER 0.030 INCHRevington TR information: Thrust Washer 0.030" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE |
£1.67 Ex VAT @ 20% |
|
|
139955 |
THRUST WASHER 0.068"Revington TR information: Thrust Washer 0.068" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE |
£7.60 Ex VAT @ 20% |
|
|
139956 |
THRUST WASHER 0.072"Revington TR information: Thrust Washer 0.072" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE |
£7.60 Ex VAT @ 20% |
|
|
139951 |
THRUST WASHER 51/53 THOURevington TR information: Thrust washer 0.052" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE |
£9.07 Ex VAT @ 20% |
|
 |
139952 |
THRUST WASHER 55/57 THOURevington TR information: Thrust Washer 0.056" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE |
£8.70 Ex VAT @ 20% |
|
|
139953 |
THRUST WASHER 59/61 THOURevington TR information: Thrust Washer 0.060" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE |
£11.57 Ex VAT @ 20% |
|
|
139954 |
THRUST WASHER 63/65 THOURevington TR information: Thrust Washer 0.064" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE |
£15.88 Ex VAT @ 20% |
|
|
148805 |
WASHER SHIM 0.041"Revington TR information: Thrust Washer 0.041" thick. These thrust washers are dished, have an internal diameter of 16.26mm, an outside diameter of 33.24mm and are dished by approximately 2.68mm. A selection of various thicknesses of cupped washer are available... READ MORE |
£12.17 Ex VAT @ 20% |
