TRIUMPH PLATES - Browse Original Triumph Catalogue Plates
WIPER ARM LHD STRAIGHT LH dull silver TR6 up to CF1/CR1 wedge lock
Part No:
151887X
Price
£43.86
Price Ex VAT @ 20%
£36.55
AVAILABLE This part is available to order

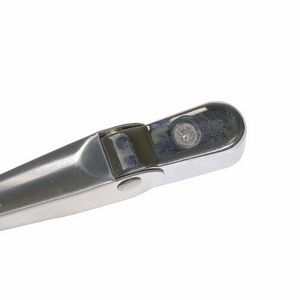

TR6CC and CP Left Hand Wiper Arm for Left Hand Drive cars, 7.2mm wide arm, bayonet blade fitting, dull silver. Heavy-duty design incorporating a Wedge Lock type drive head incorperating a screwed clamp to the serrated spindle.

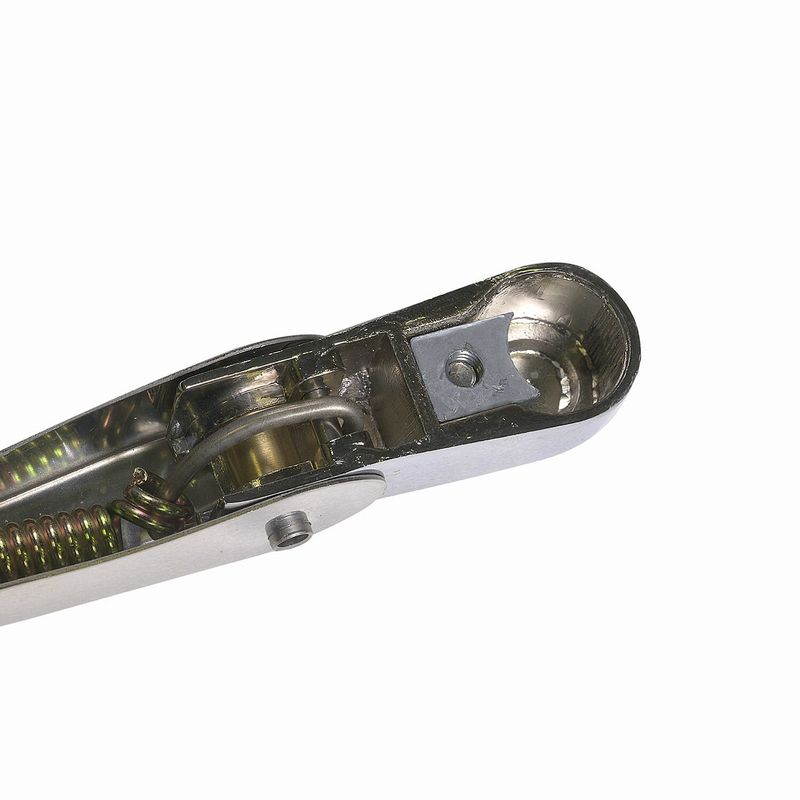

The wedge Lock feature provides a serrated wedge acting on the drive boss, tightened by an external screw. When the screw is tightened the wedge is forced against the boss for a firm fit however worn the boss is, ideal when the aluminium serrated spindle head is worn and will not hold a standard arm. All Rally cars should use this arm.
Technical Description
- Drive Head: Wedge Lock
- Length: 305mm
- Blade Fitting: Bayonet
- Arm Width: 7.2mm
- Degrees of Crank: 15
- Direction of crank: Right
- How To Measure The Length: Centre of drive to the end of the arm
