TRIUMPH PLATES - Browse Original Triumph Catalogue Plates
Wiper Motor Fitted from TR3 chassis number TS12568 to TR4 body number 7783CT (RHD) and 30CT (LHD). Not available new, please use second hand part 505124SH or reconditioned part 505124EX or one of our conversion kits. See below.
The original parts books do not reflect the current TR2 5 owner's needs or indeed the way parts are available for purchase. The following may be helpful.
Wiper motor fitments are as follows: -
TR2 Motor part No. 501684. TSI TS996 single speed CRT type. Wiper spacing 10"
TR2 TR3 Motor part No. 501684. TS997 TS12567 CRT type. Wiper spacing 12"
TR3 TR4 Motor part No. 505124. TS12568 CT7783 (RHD) and CT30 (LHD) DR2 type. Wiper spacing 14 ¾"
TR4 Motor part No. 510985. From CT7784 (RHD) & CT31 (LHD). DR3A type. Single speed
TR4A 5 Motor part No. 514821. Two speed DR3A type (also optional equipment TR3 from TS12568 onwards.
The following kits have proved immensely popular with drivers who like to see where they are going. The kits include a 14W round bodied wiper motor which is much stronger than the original TR2-5 items, wheel boxes, tubes, a mounting bracket and full instructions. Two speeds are provided, self-park and the ability to fit an intermittent operation kit.
RTR8395-AK Kit of parts to fit 14W type wipers to TR2-3B
RTR8395-BK Kit of parts to fit 14W type wiper system to TR4-4A
RTR8395-CK Kit of parts to fit 14W type wiper system to TR5, 250
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
505124SH |

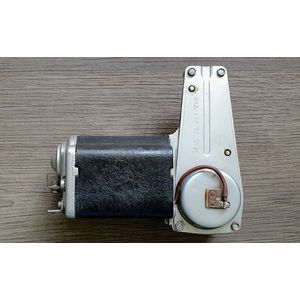

Second Hand WIPER MOTOR DR2 TR3-3A-4
Revington TR information: Revington TR supply this Wiper Motor Second Hand Complete but can offer no guarantee about its ability to perform. Order a rebuilt part 505124EX if a part guaranteed to work is required. The original parts books... READ MORE |
£140.40 Ex VAT @ 20% |
|
 |
505124EX |
WIPER MOTOR DR2 TR3-3A-4
Revington TR information: Exchange DR2 Type wiper motor. The gear wheel from your old unit will need to be fitted (it should give 130 degree sweep). Fitted from TR3 from TS12568, 3A and 4 up to body number 7783CT... READ MORE |
£332.69 Ex VAT @ 20% |
|
 |
505124G130SH |
Second Hand DR2 GEAR WHEEL 130Revington TR information: DR2 gear wheel 130 degree Note: - Gears offering different sweeps are available to. Please enquire. |
£30.25 Ex VAT @ 20% |
|
|
17H5431 |
W.MOTOR MOUNTING (BUSH & PIN)Revington TR information: This is an assembly consisting of one pin, one nut, two washers and one rubber mount. A kit consisting of 3 assemblies 17H5431 can be bought as 17H5431K. The mounting rubber can be bought own its... READ MORE |
£9.25 Ex VAT @ 20% |
|
 |
RTR8395-AK
|
WIPER UPGRADE KIT TR2-3BRevington TR information: Conversion Kit to upgrade the wiper system on TR2-3B to replace the notoriously poor standard Motor and Wheelbox with a Heavy Duty Motor and Wheelboxes. Includes all fittings and Instructions. TR2-3B Wiper Systems are notoriously poor... READ MORE |
£1131.60 Ex VAT @ 20% |
|
 |
RTR8395-CK
|
WIPER UPGRADE KIT TR250,5Revington TR information: Conversion Kit to upgrade the wiper system to replace the notoriously poor standard Motor and Wheelboxes with a Heavy Duty Motor and Wheelboxes. The kit includes all fittings and Instructions. TR5 and TR250 Wiper Systems are... READ MORE |
£994.80 Ex VAT @ 20% |
|
 |
RTR8395-BK
|
WIPER UPGRADE KIT TR4-4ARevington TR information: Conversion Kit to upgrade the wiper system to replace the notoriously poor standard Motor and Wheelbox with a Heavy Duty Motor and Wheelboxes. The kit Includes all fittings and Instructions. TR4 and TR4A Wiper Systems are... READ MORE |
£1068.72 Ex VAT @ 20% |
