WIPER MOTOR DR2 TR3-3A-4
Part No:
505124EX
Price
£332.69
Price Ex VAT @ 20%
£277.24
Deposit *
£50.00

AVAILABLE This part is available to order

* Deposit Required: A deposit is required for this part. This will be refunded in full or in part on receipt of exchange item, depending on the condition of the part received. Vat at the prevailing rate will be added to the deposit if applicable.

Image 1
2 images

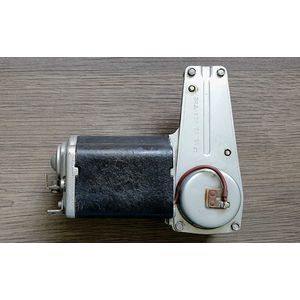

Exchange DR2 Type wiper motor. The gear wheel from your old unit will need to be fitted (it should give 130 degree sweep). Fitted from TR3 from TS12568, 3A and 4 up to body number 7783CT RHD and 30CT LHD

The rubber feet are available separately as a kit 17H5431. Consider second hand part 505124SH. See below
Note: - This wiper motor is used in a variety of applications and can be fitted with various sweeps of the wiper motor main gear. We therefore supply wiper motors reconditioned with no gear, or the gear it came to us with. Please change over the gear from your motor to ensure the sweep will be the same as you had before. In the case of a motor supplied with a gear fitted, we require all the unused parts returned, i.e. gear, washers top and bottom and the retaining clip.

The original parts books do not reflect the current TR2 5 owner's needs or indeed the way parts are available for purchase. The following may be helpful.
Wiper motor fitments are as follows: -
TR2 Motor part No. 501684. TSI TS996 single speed CRT type. Wiper spacing 10"
TR2 TR3 Motor part No. 501684. TS997 TS12567 CRT type. Wiper spacing 12"
TR3 TR4 Motor part No. 505124. TS12568 CT7783 (RHD) and CT30 (LHD) DR2 type. Wiper spacing 14 ¾"
TR4 Motor part No. 510985. From CT7784 (RHD) & CT31 (LHD). DR3A type. Single speed
TR4A 5 Motor part No. 514821. Two speed DR3A type (also optional equipment TR3 from TS12568 onwards.

The following kits have proved immensely popular with drivers who like to see where they are going. The kits include a 14W round bodied wiper motor which is much stronger than the original TR2-5 items, wheel boxes, tubes, a mounting bracket and full instructions. Two speeds are provided, self-park and the ability to fit an intermittent operation kit.

RTR8395-AKKit of parts to fit 14W type wipers to TR2-3B
RTR8395-BKKit of parts to fit 14W type wiper system to TR4-4A
RTR8395-CKKit of parts to fit 14W type wiper system to TR5, 250
