PLATE ASSY GUIDE DZUS RH UNPLATED
IN STOCK This part is immediately available

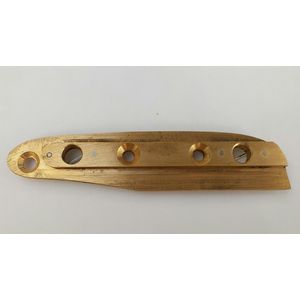

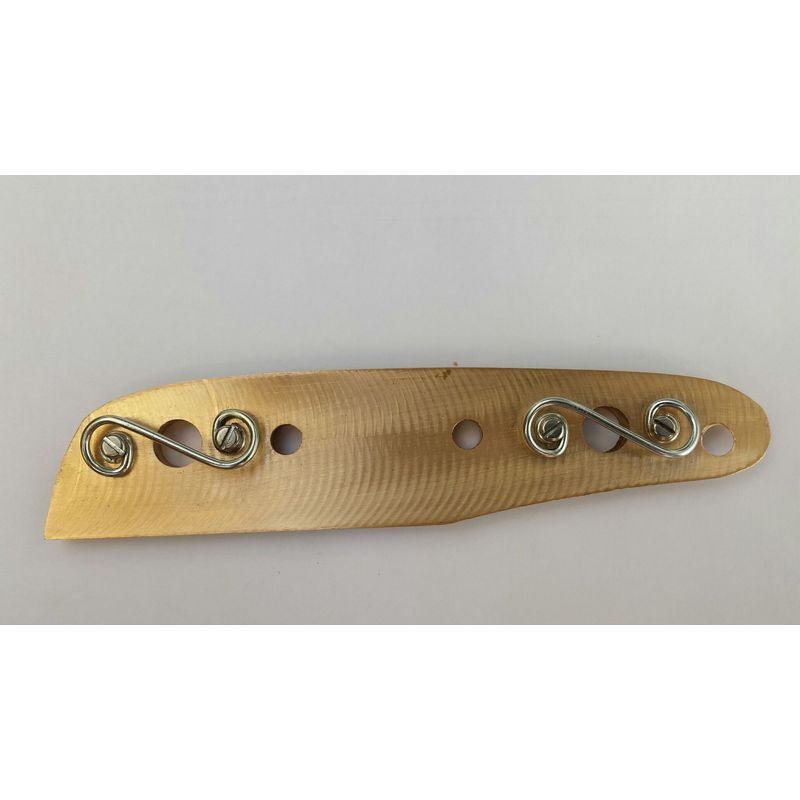

This unplated right hand windscreen stanchion Guide Plate is the type that is screwed to the bodywork of TR's 2-3 and has two Dzus fastener springs attached to the back. This guide plate is machined from a bronze casting.
We supply these unplanted fully machined, without chrome plating them. This is our preferred method of supplying these guide plates as having tried them on various stanchions, we find the shape of the stanchions varies a lot, particularly if they have been rechomed at any time and therefore will have been polished. Supplying this part unplated gives the customer the opportunity to file the edge so that it fits your stanchions as well as can be, they can then be Chrome plated or fitted as they are. This part was originally supplied as part number 552819, chrome plated.
4 types of windscreen stanchion were used on TR2-3B. We have listed them below along with the appropriate guide used (if applicable) as follows: -
12 plates in total
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
552819 |
PLATE ASSY GUIDE DZUS RH CHROMERevington TR information: This chrome plated right hand windscreen stanchion Guide Plate is the type that is screwed to the bodywork of TR's 2-3 and has two Dzus fastener springs attached to the back. It is rare for us... READ MORE |
£172.19 Ex VAT @ 20% |
|
|
552819-1 |
PLATE NON-DZUS GUIDE RH CHROMERevington TR information: This chrome plated right hand windscreen stanchion Guide Plate is the none Dzus type that is used in conjunction with the type of bolt on stanchion that has a groove inside to accommodate it and serves... READ MORE |
£172.19 Ex VAT @ 20% |
|
 |
552819-1UP |
PLATE NON-DZUS GUIDE RH UNPLATEDRevington TR information: This unplated right hand windscreen stanchion Guide Plate is the non Dzus type that is used in conjunction with the type of bolt on stanchion that has a groove inside to accommodate it and serves no... READ MORE |
||
|
552818 |
PLATE ASSY GUIDE DZUS LH CHROMERevington TR information: This chrome plated left hand windscreen stanchion Guide Plate is the type that is screwed to the bodywork of TR's 2-3 and has two Dzus fastener springs attached to the back. It is rare for us... READ MORE |
£172.19 Ex VAT @ 20% |
|
 |
552818UP |
PLATE ASSY GUIDE DZUS LH UNPLATEDRevington TR information: This unplated left hand windscreen stanchion Guide Plate is the type that is screwed to the bodywork of TR's 2-3 and has two Dzus fastener springs attached to the back. This guide plate is machined from... READ MORE |
£137.39 Ex VAT @ 20% |
|
|
552818-1 |
PLATE NON-DZUS GUIDE LH CHROMERevington TR information: This chrome plated left hand windscreen stanchion Guide Plate is the none Dzus type that is used in conjunction with the type of bolt on stanchion that has a groove inside to accommodate it and serves... READ MORE |
£172.19 Ex VAT @ 20% |
|
|
552818AL |
PLATE ASSY STANCHION GUIDE LH ALLYRevington TR information: Stanchion Guide Plate Right hand made from aluminium. We have a limited run of these parts which we are selling in pairs. Please order 1 x 552819AL and 1 x 552818AL. Be aware that these are... READ MORE |
£120.02 Ex VAT @ 20% |
|
|
552819AL |
PLATE ASSY STANCHION GUIDE RH ALLYRevington TR information: Stanchion Guide Plate Right hand made from aluminium. We have a limited run of these parts which we are selling in pairs. Please order 1 x 552819AL and 1 x 552818AL. Be aware that these are... READ MORE |
£120.02 Ex VAT @ 20% |
|
 |
552818-1UP |
PLATE NON-DZUS GUIDE LH UNPLATEDRevington TR information: This unplated left hand windscreen stanchion Guide Plate is the non Dzus type that is used in conjunction with the type of bolt on stanchion that has a groove inside to accommodate it and serves no... READ MORE |
||
|
552818BKTSH |
Second Hand BRACKET SECURING STANCHION PLATE LH |
£22.16 Ex VAT @ 20% |
|
|
552818SH |
Second Hand SCREEN SUPPORT DZUS LHRevington TR information: 4 types of windscreen stanchion were used on TR2-3B as follows: - 552181/2 TR2-3 Chrome plated brass; Dzus type using guide plates 552818/9 with Dzus spring 560671/2 TR3A Bolt type Aluminium without guide plates 560627/8 TR3A Chrome plated brass;... READ MORE |
||
|
552819SH |
Second Hand SCREEN SUPPORT DZUS RH |
||
|
554722 |
SPRING DZUS TR2-3A STANCHIONRevington TR information: 25.4mm between centres. See 603079X for longer version. |
£6.41 Ex VAT @ 20% |
