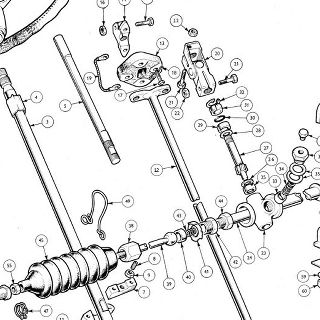

TRIUMPH PLATES - Browse Original Triumph Catalogue Plates
STEERING COLUMN STAY BAR TR5-6
Part No:
611531
NOT AVAILABLE This part is no longer available
Not available new, use second hand part 611531SH
4 styles of lower stay bar were used on TR4-TR6 as follows:
The early bar 611834 has one end turned at 90 degrees and is fitted to TR4 and 4A.
The later single stay bar fitted to TR5, 250 and 6 is straight, part number 611531 fitted to TR250, 5, 6 up to CP50000 and CC50000 without a steering lock.
A pair of stay bars part number 147892 and 147893 fitted to TR4A, 250, 5, 6 up to CP50000 and CC50000 with a steering lock.
A single 'H' frame stay bar part number 154168 fitted to TR6 from CP50001 and CC50001. See below
The early bar 611834 has one end turned at 90 degrees and is fitted to TR4 and 4A.
The later single stay bar fitted to TR5, 250 and 6 is straight, part number 611531 fitted to TR250, 5, 6 up to CP50000 and CC50000 without a steering lock.
A pair of stay bars part number 147892 and 147893 fitted to TR4A, 250, 5, 6 up to CP50000 and CC50000 with a steering lock.
A single 'H' frame stay bar part number 154168 fitted to TR6 from CP50001 and CC50001. See below
