BRACKET SET Aero screen OE STYLE TR2-3

Kit No:
700896BKT
Price
£267.16
Price Ex VAT @ 20%
£222.63

AVAILABLE This part is available to order

Image 1
6 images

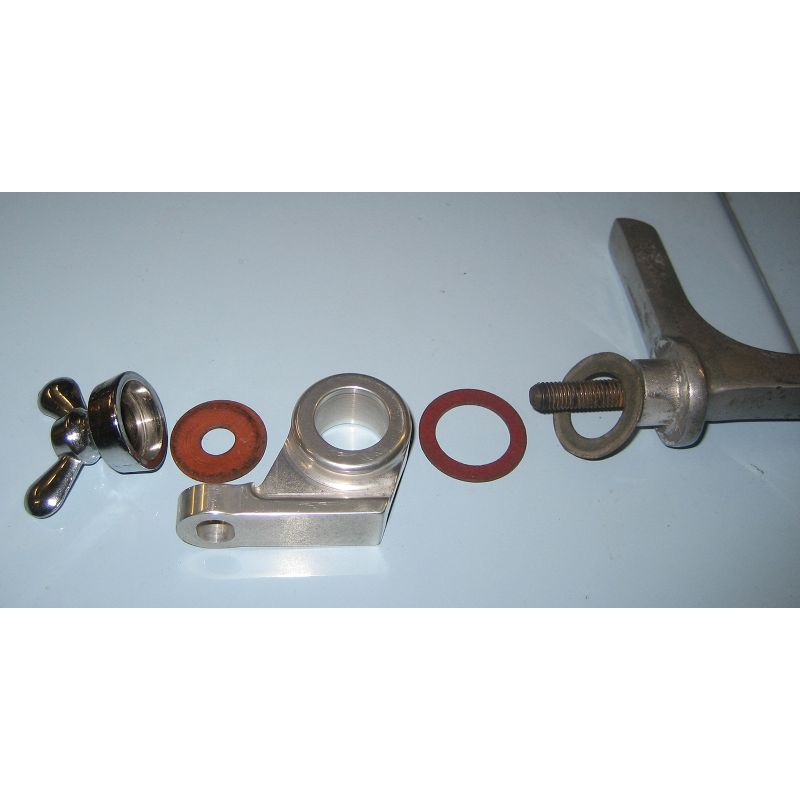

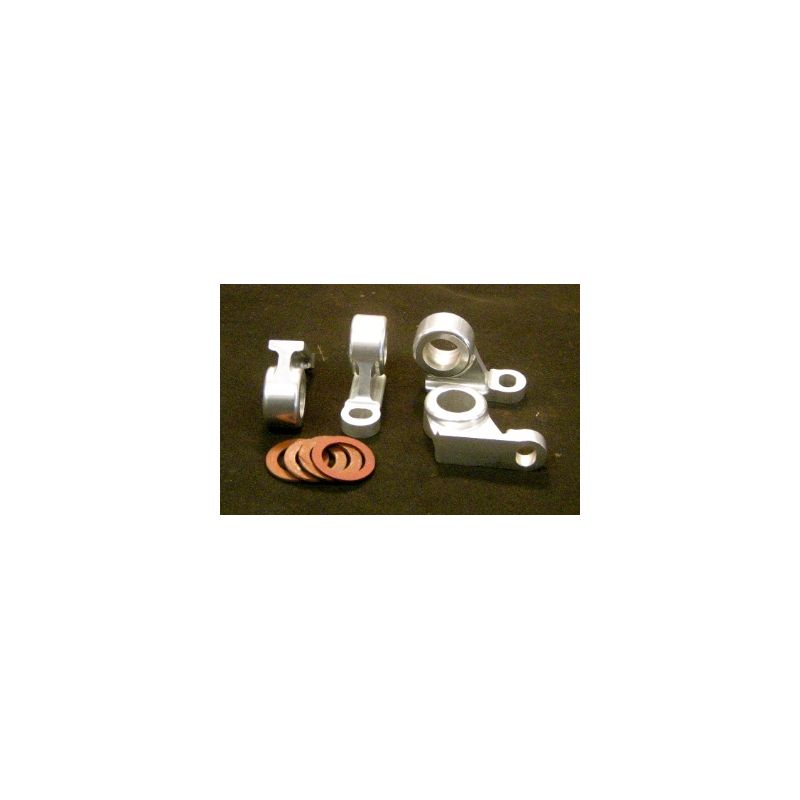

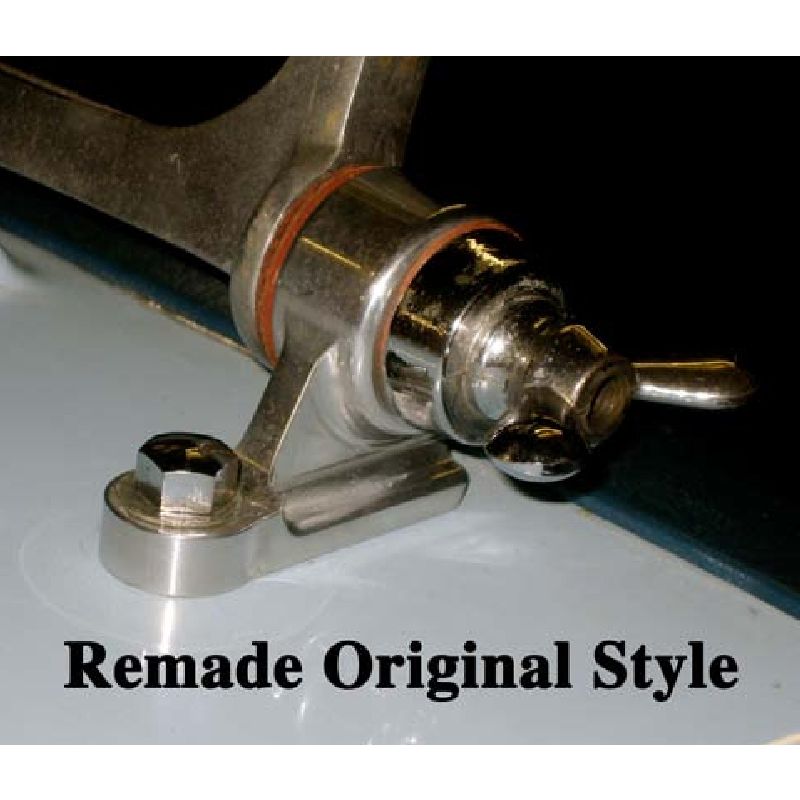

Reproduction Original Style Aeroscreen Mounting Bracket set. Suitable for TR2-3 with the chrome headed bolts on the top of the scuttle, it is crucuila tha the body shell is an early shell wi these 4 screw holes in place. These brackets will enable Derrington type aero screens to be fitted properly rather than using the nasty pedestals supplied with the aero screens.

Full fitting instructions are provided, please see the drawing images to see if these brackets will fit your car and aero screens. If in doubt  see below: -

Special Notes Before Buying - Please make 3 measurements.

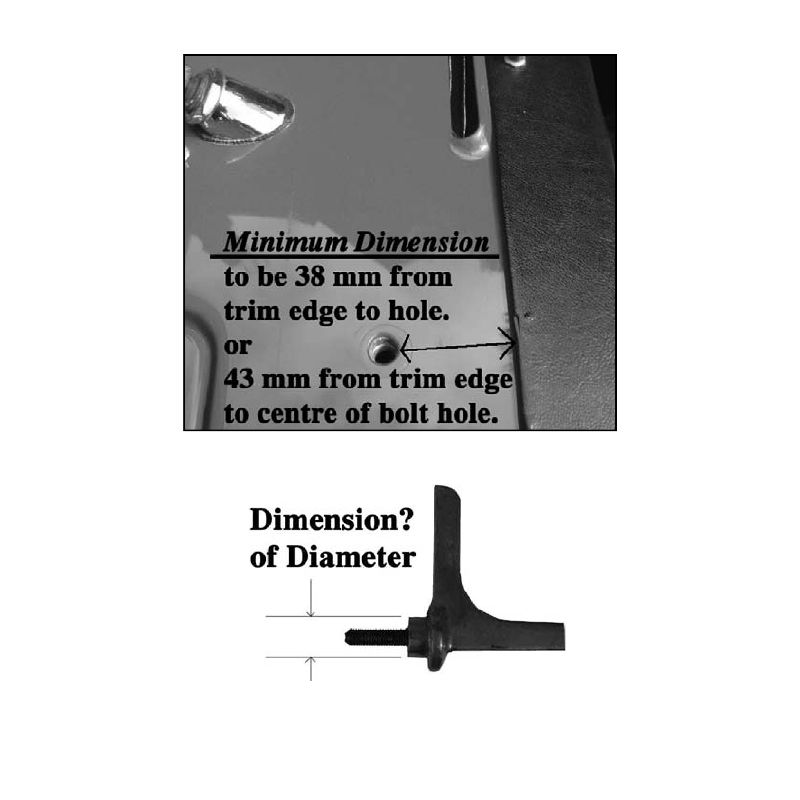

1. The distance from the edge of the aeroscreen mounting bolt hole to the dash top capping trim on your car. This dimension must be greater than 38 mm to the hole edge or 43 mm to the centre of the bolt.

2. The diameter of the mounting spigot of your chosen aeroscreens .The brackets are made to fit aeroscreens with a spigot of 19.25 mm or 3/4" diameter. One aeroscreen maker produces items that do not have a round spigot, dimensions vary from 18 to 21 mm oval. It is recommended that an oval aeroscreen spigot is filed, to make it more circular/round to fit the mounting bracket.

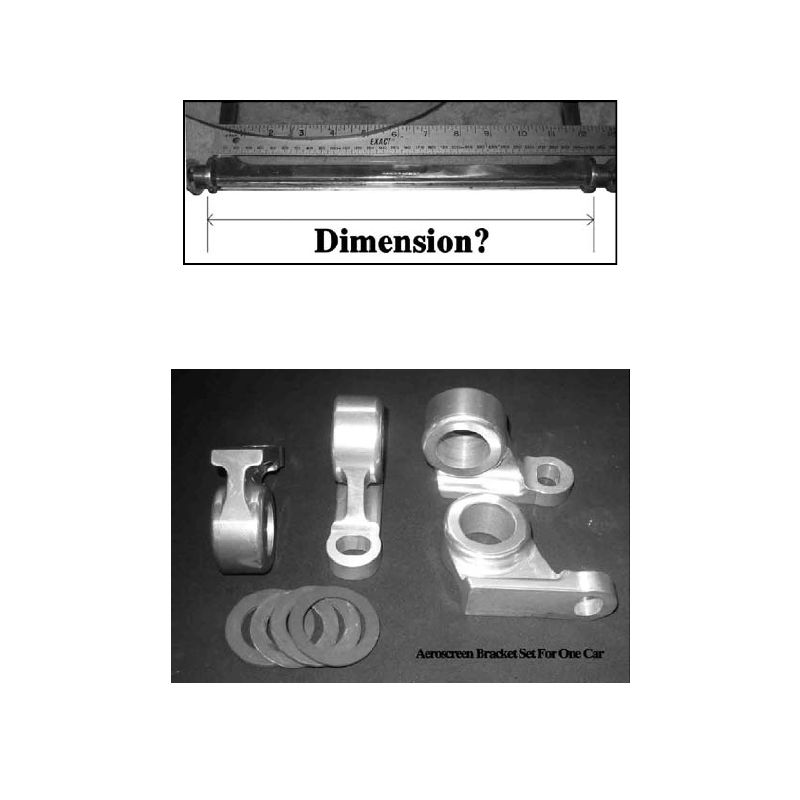

3. The width of the mounting faces of your chosen aeroscreens.The brackets are designed to fit aeroscreens of 310 mm to 320 mm width.
