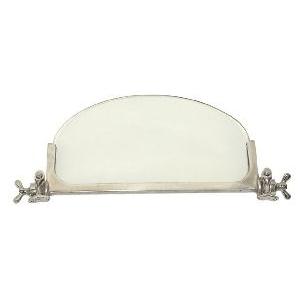

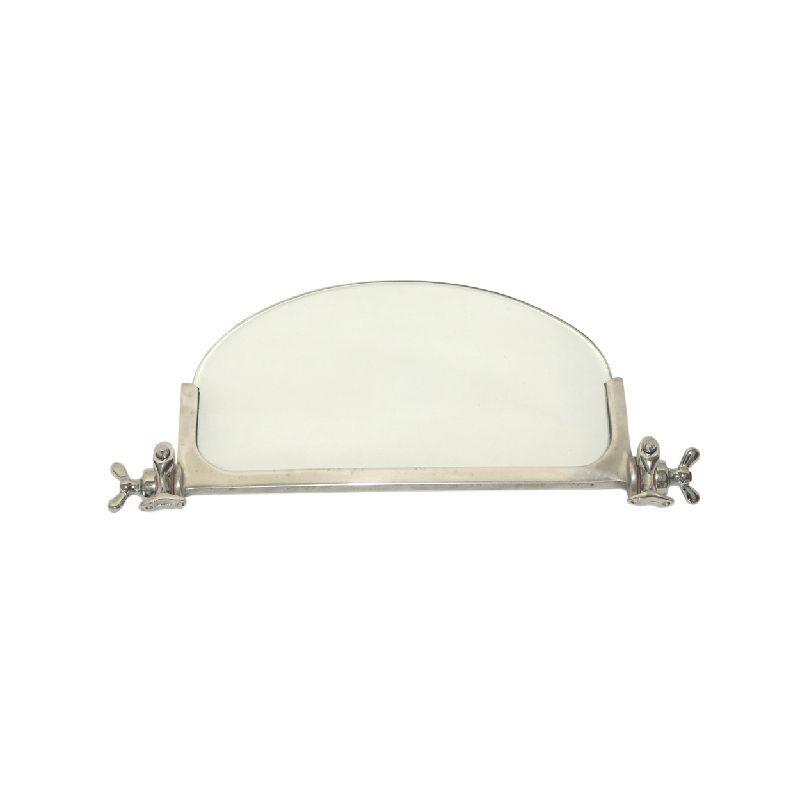

TR2-3B Acroscreen. "Derrington" type. Price each single screen. Period style aero screen of the Derrington type, cast aluminium frame, chrome fittings. 2 required per car.

Note: TR2-3A's have a pre-drilled scuttle with captive nuts below to which the original aeroscreen stanchions are fixed with one bolt each side of the aeroscreen.
Derrington type aeroscreens are a universal design where the stanchion is designed to be secured to the scuttle by 2 screws through each stanchion (half of kit 700896DFK is supplied with each aeroscreen). The Derrington screen is therefore not a direct replacement.

To fit Derrington aeroscreens to TR2-3B's it is necessary to drill through the scuttle so that the stanchions can be attached.

An alternative solution is to manufacture a small plate to which the Derrington aeroscreen stanchions can be screwed. This in turn can be bolted to the original fixing. Revington TR do not offer such a plate as the design is a matter of personal choice.

However we do offer a set of specially designed feet part number 700896BKT, which fit onto the the scuttle secured via the original bolt fixings. Check your scuttle has these 4 screws as they were omitted on later TR3A shells.
