Second Hand RH FR CHANNEL TR4-6

Part No:
850431SH
Price
£55.03
Price Ex VAT @ 20%
£45.86

AVAILABLE This part is available to order

Image 1
1 image

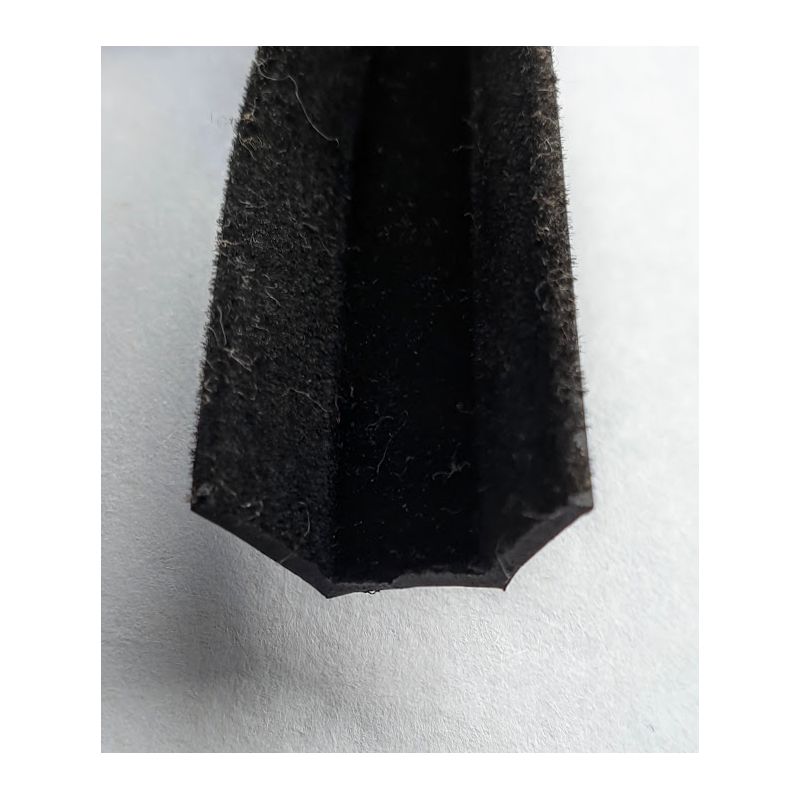

Consider insert 850430FT


Identification

TR4-6 door glass runners can be difficult to differentiate, one from another. There are 6 part numbers.
1. The bottom attachment bracket attaches to the inner panel so for example when viewing a left hand rear runner, from the rear, the leg will point to the right.
2. Front. TR4-6 share the same part and are easily identified by the upper attachment bracket being at 45 degrees to match the slope of the front of the door.
3. TR4-4A rears have the upper brackets spaced at 87mm
4. TR250, 5, 6 rears have the upper brackets spaced at 63mm


Part numbers

Part Number

Fitted to

Left or Right

Front or back

upper bracket spacing
850430 TR4,4A, 250, 5, 6 Left Front N/A
850431 TR4,4A, 250, 5, 6 Right Front N/A
850432 TR4,4A Left Rear 87mm
850433 TR4,4A Right Rear 87mm
812436 TR250, 5, 6 Left Rear 63mm
812437 TR250, 5, 6 Right Rear 63mm
