FRAME ONLY S/SCREEN LH TR3-3A ALLY

Part No:
900682NFAL
Price
£303.16
Price Ex VAT @ 20%
£252.63

AVAILABLE This part is available to order

Image 1
2 images

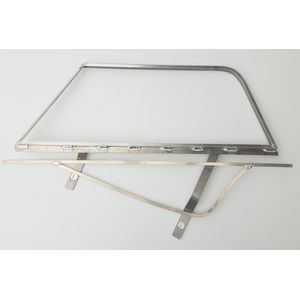

Side Screen Frame only Left Hand; TR3-3A type with sliding two piece window, wedge attachment and a separate lower frame. This frame is aluminium.

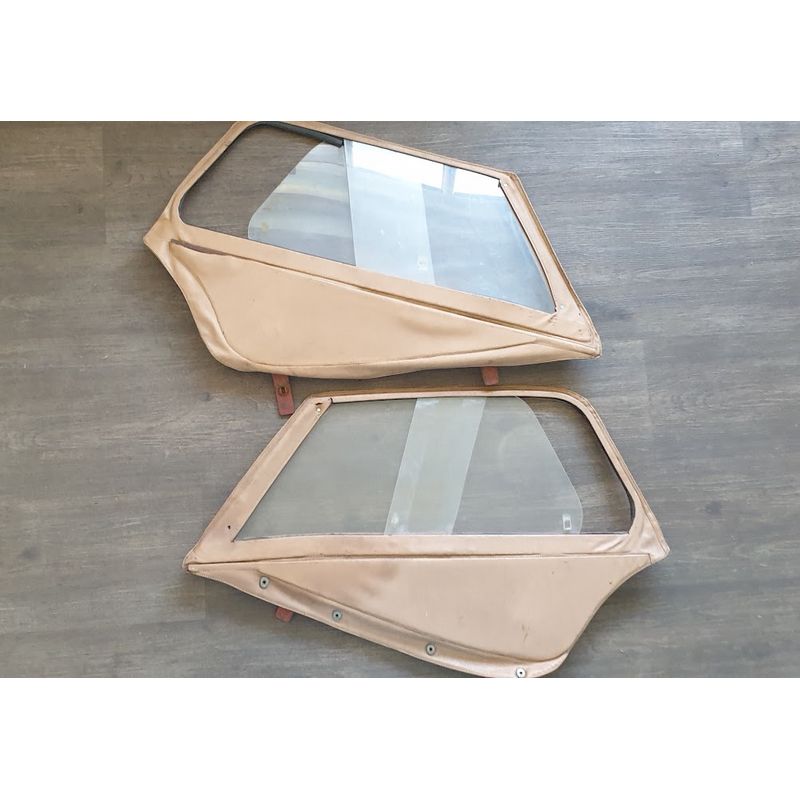

Revington TR have reintroduced a range of sidescreen frames in both steel and aluminium to suit all needs. These can be adjusted to suit the individual car then covered; an addition service Revington TR can offer.

Our aluminium frames are significantly lighter than the steel original frames, weighing only 2.2kg when incorporated into a finished sidescreen compared with 4.1kg for the original steel framed sidescreen.


The following variations are available: -

900385NF: Steel, Left Hand TR2-3 one piece window, with separate lower frame in flap and zip, wedge attachment.
900386NF: Steel, Right Hand TR2-3 one piece window, with separate lower frame in flap and zip, wedge attachment.
900385NFAL: Aluminium, Left Hand TR2-3 one piece window, with separate lower frame in flap and zip, wedge attachment.
900386NFAL: Aluminium, Right Hand TR2-3 one piece window, with separate lower frame in flap and zip, wedge attachment.

900682NF: Steel, Left Hand TR3-3A sliding window, with separate lower frame in flap and zip, wedge attachment.
900683NF: Steel, Right Hand TR3-3A sliding window, with separate lower frame in flap and zip, wedge attachment.
900682NFAL: Aluminium, Left Hand TR2-3 one piece window, with separate lower frame in flap and zip, wedge attachment.
900683NFAL: Aluminium, Right Hand TR2-3 one piece window, with separate lower frame in flap and zip, wedge attachment.

901286NF: Steel, Left Hand TR3A sliding window, with fixed lower frame, no zip, Dzus attachment.
901287NF: Steel, Right Hand TR3A sliding window, with fixed lower frame, no zip, Dzus attachment.
901286NFAL: Aluminium, Left Hand TR3A sliding window, with fixed lower frame, no zip, Dzus attachment.
901287NFAL: Aluminium Right Hand TR3A sliding window, with fixed lower frame, no zip, Dzus attachment.

901286NF-1AL: Aluminium, Left Hand TR2-3 sliding window, with fixed lower frame, no zip, Wedge attachment. Not an original fitment this arrangement allows the sliding window to be utilised on early wedge bracket cars.
901287NF-1AL: Aluminium, Right Hand TR2-3 sliding window, with fixed lower frame, no zip, Wedge attachment. Not an original fitment this arrangement allows the sliding window to be utilised on early wedge bracket cars.
Please note that steel sidescreen frames are only made to special order. Aluminium frames are kept as a stock line.
