BLK S/SCREEN RH TR3

Part No:
900683
Price
£302.40
Price Ex VAT @ 20%
£252.00

CURRENTLY UNAVAILABLE

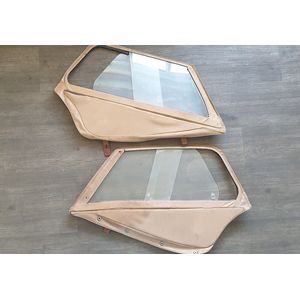

Image showing 900682/3 second hand for reference with zips missing and one with no fasteners.
Image showing 900682/3 second hand for reference with zips missing and one with no fasteners.
1 image

Wedge type, with sliding window, lifting flap and no zip.

Revington TR have reintroduced a range of sidescreen frames in both steel and aluminium to suit all needs. These can be adjusted to suit the individual car then covered; an addition service Revington TR can offer.
The following variations are available: -
900385NF Steel Left Hand TR2-3 one piece window, with separate lower frame in flap and zip, wedge attachment.
900386NF Steel Right Hand TR2-3 one piece window, with separate lower frame in flap and zip, wedge attachment.
900385NFAL Aluminium Left Hand TR2-3 one piece window, with separate lower frame in flap and zip, wedge attachment.
900386NFAL Aluminium Right Hand TR2-3 one piece window, with separate lower frame in flap and zip, wedge attachment.

900682NF Steel Left Hand TR3-3A sliding window, with separate lower frame in flap and zip, wedge attachment.
900683NF Steel Right Hand TR3-3A sliding window, with separate lower frame in flap and zip, wedge attachment.
900682NFAL Aluminium Left Hand TR2-3 one piece window, with separate lower frame in flap and zip, wedge attachment.
900683NFAL Aluminium Right Hand TR2-3 one piece window, with separate lower frame in flap and zip, wedge attachment.

901286NF Steel Left Hand TR3A sliding window, with fixed lower frame, no zip, Dzus attachment.
901287NF Steel Right Hand TR3A sliding window, with fixed lower frame, no zip, Dzus attachment.
901286NFAL Aluminium Left Hand TR3A sliding window, with fixed lower frame, no zip, Dzus attachment.
901287NFAL Aluminium Right Hand TR3A sliding window, with fixed lower frame, no zip, Dzus attachment.

901286NF-1AL Aluminium Left Hand TR2-3 sliding window, with fixed lower frame, no zip, Wedge attachment. Not an original fitment this arrangement allows the sliding window to be utilised on early wedge bracket cars.
901287NF-1AL Aluminium Right Hand TR2-3 sliding window, with fixed lower frame, no zip, Wedge attachment. Not an original fitment this arrangement allows the sliding window to be utilised on early wedge bracket cars.

Four basic types of sidescreen (side Curtain) were used on TR2-3B as follows: -
900385, 6 - TR2. Small Dzus fastener, fixed window, none fixed lower flap with zip and wedge fixing. Fitted from TS1 to TS5255. All colours were supplied under these part numbers
900709, 10, 11, 12, 13, 14 - TR3. Large Dzus fastener, fixed window, none fixed lower flap with zip and wedge fixing. Fitted from TS5256 to TS8636. Colours were supplied under separately under these part numbers
900682, 3, 4, 5 and 553933, 4 - TR3A. Large Dzus fastener, sliding window, none fixed lower flap without zip and wedge fixing. Fitted from TS8636 to TS28825. Colours were supplied under separately under these part numbers
901286, 7, 8, 9, 90, 1 - TR3A. Large Dzus fastener, sliding window, fixed lower flap without zip and Dzus fixing. Fitted from TS28825 on. Colours were supplied under separately under these part numbers

Many owners these days like the idea of having a sliding window with a fixed lower flap but for use with wedge door mountings. Whilst this was never an original fitment, Revington TR have included this hybrid design in there range of new frames. See 901286NF-1AL and 901287NF-1AL
