RAD OIL 9 ROW 1/2"BSP ALUMINIUM

Part No:
ARA221-2

NOT AVAILABLE This part is no longer available

Main
Main
2 images

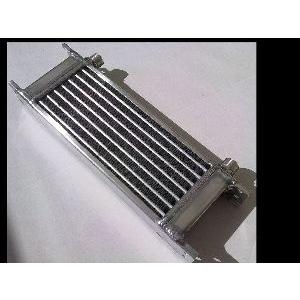

This is a high quality product and is our most popular oil cooler Radiator. It is a 13 row equivalent (but has 9 rows) oil cooler Radiator of full aluminium construction. Suitable for most road applications, it has 1/2"BSP fittings.

This Aluminium oil cooler has improved performance over the standard vacuum brazed oil cooler Radiator ARA221 even though it has fewer rows.
A high quality oil cooler radiator system aids engine cooling in all cars where high ambient temperatures are experienced or the engine is under extreme load such as a competition environment.
This product is 97mm tall, features all aluminium construction with welded joints, good flow, excellent heat dissipation and high oil capacity.

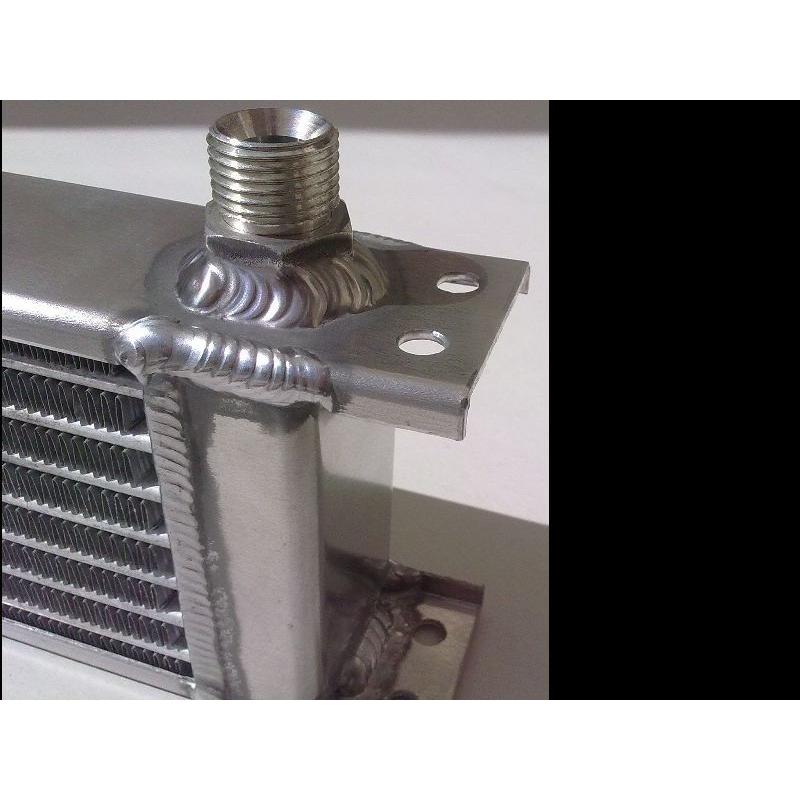

The fully welded construction ensures the product has the highest resistance to cracking due to vibration or union disassembly.

Larger oil cooler Radiators with 16 rows (12 for aluminium) are available under the part number series RTR1102 with ½ or 5/8 BSP fittings. Larger still oil cooler Radiators are available to special order as are Radiators with fittings other than BSP.

These oil coolers can also be supplied painted black with a special paint that will not reduce cooling ability. A small extra charge will be applied.
