TRIUMPH PLATES - Browse Original Triumph Catalogue Plates
H4 CONVERSION KIT LUCAS NO PILOT RHD - PAIR
IN STOCK This part is immediately available

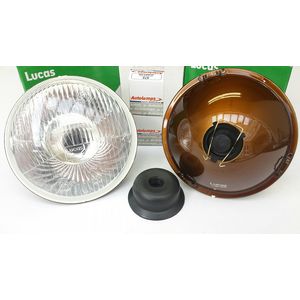

TR2-8 RHD Lucas Headlamp set consisting of 2 lamps and 2 H4 halogen bulbs. these lamps have no pilot lamp.
There is much confusion between the TR250, TR5 and TR6 parts books as to the correct part numbers for headlamps. In most TR6 parts books for instance 514578 sealed beam unit is listed for both Home Market (i.e. Right Hand Drive) and USA, which is of course Left hand Drive.
To clear the fog we have listed below suitable fitments.
Right Hand Drive
GLU101 Sealed beam unit
512241RH P45T Asymmetric with separate bulb (not supplied)
GAC4022A Pair of lamps. Comes with two H4 Halogen bulbs
Left Hand Drive
514578 Sealed beam unit
512241 P45T Asymmetric with separate bulb (not supplied)
LULUB803 Pair of lamps. Comes with two H4 Halogen bulbs
Bulbs
GLB410 P45T Asymmetric. Clear 45/40W
GLB411 P45T Asymmetric. Cadmium Yellow 45/40W
GLB2983 P45T Asymmetric. Clear Quartz Halogen 60/55W
GLB472 H4 Halogen Clear 60/55W
GLB476 H4 Halogen Cadmium Yellow 60/55W
RTR8464 H4 Halogen Clear PIAA 60/55W but with 130/120W equivalent output
RTR8463 H4 Halogen Clear PIAA 80/80W but with 150/150W equivalent output
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
GLB472 |
BULB H4 HALOGEN 60/55W 12 VRevington TR information: TR2-8 H4 bulb clear. 60/55W 12V |
£11.06 Ex VAT @ 20% |
|
|
GLB472SH |
BULB H4 HALOGEN 60/55W 12 V second hand |
£6.12 Ex VAT @ 20% |
|
|
GLB2983 |
BULB H4 P45T HALOGEN 12V |
£17.54 Ex VAT @ 20% |
|
|
GLB410 |
BULB HEAD LAMP |
£4.30 Ex VAT @ 20% |
|
 |
RTR8464
|
BULB PIAA H4 60/55 (130/125) EACHRevington TR information: Platinum Competition H4 bulb 60/55W by PIAA with an equivalent output of 130/120W. This bulb is useful where a dynamo is used and the extra drain of the higher power RTR8463 is undesirable. This bulb is... READ MORE |
£78.32 Ex VAT @ 20% |
|
 |
RTR8463
|
BULB PIAA H4 80/80 (150/150) EACHRevington TR information: Platinum Competition H4 bulb 80/80W by PIAA with an equivalent output of 150/150W. This bulb is not 'E' marked. Please check local laws to be sure this bulb can be used legally on the public highway.... READ MORE |
£87.40 Ex VAT @ 20% |
|
|
GLB411 |
H/LAMP BULB YELLOW |
£6.10 Ex VAT @ 20% |
|
|
GLB476 |
H4 BULB YELLOWRevington TR information: TR2-6 H4 bulb yellow 60/55W |
£28.30 Ex VAT @ 20% |
|
|
WPS4699 |
H4 CONV WITH PILOT LEFTHAND DRIVE WIPACRevington TR information: TR2-8 LHD WIPAC Halogen conversion per pair clear bulb with pilot light. The headlamps on TR2's have often been described as glow-worms or fag ends. TR6 standard lamps are not much better. These H4 Halogen conversions... READ MORE |
£89.59 Ex VAT @ 20% |
|
 |
GAC4023A |
H4 CONVERSION KIT LUCAS + PILOT RHD (PAIR)Revington TR information: TR2-8 RHD Per pair clear bulb with pilot light, Lucas. The headlamps on TR2's have often been described as glow-worms or fag ends. TR6 standard lamps are not much better. These H4 Halogen conversions should improve... READ MORE |
£83.16 Ex VAT @ 20% |
|
|
GAC4022A |
H4 CONVERSION KIT LUCAS NO PILOT RHD - PAIRRevington TR information: TR2-8 RHD Lucas Headlamp set consisting of 2 lamps and 2 H4 halogen bulbs. these lamps have no pilot lamp.
The headlamps on TR2's have often been described as glow-worms, TR6 standard lamps are not... READ MORE |
£118.20 Ex VAT @ 20% |
|
|
GAC4022ASH |
H4 CONVERSION KIT LUCAS NO PILOT RHD (Used) |
£59.09 Ex VAT @ 20% |
|
|
GAC4023B |
H4 CONVERSION KIT REPRO +PILOT RHDRevington TR information: TR2-8 RHD Per pair clear bulb with pilot light, Wipac. The headlamps on TR2's have often been described as glow-worms or fag ends. TR6 standard lamps are not much better. These H4 Halogen conversions should improve... READ MORE |
£79.20 Ex VAT @ 20% |
|
|
WPS4695 |
H4 SET LHD NO PILOT WIPAC WITH BULBSRevington TR information: TR2-8 LHD Per pair WIPAC, no pilot light, clear bulb. The headlamps on TR2's have often been described as glow-worms or fag ends. TR6 standard lamps are not much better. These H4 Halogen conversions should improve... READ MORE |
£82.25 Ex VAT @ 20% |
|
|
LULUB803 |
HALOGEN CONVERSION LHD NO PILOT LUCASRevington TR information: TR2-8 LHD Lucas Headlamp set consisting of 2 lamps and 2 H4 halogen bulbs. these lamps have no pilot lamp. The headlamps on TR2's have often been described as glow-worms. TR6 standard lamps are not much... READ MORE |
£128.45 Ex VAT @ 20% |
|
|
512241RH |
LAMP P45T RHDRevington TR information: There is much confusion between the TR250, TR5 and TR6 parts books as to the correct part numbers for headlamps. In most TR6 parts books for instance 514578 sealed beam unit is listed for both Home... READ MORE |
||
|
514578 |
LAMP SEALED BEAM LHDRevington TR information: There is much confusion between the TR250, TR5 and TR6 parts books as to the correct part numbers for headlamps. In most TR6 parts books for instance 514578 sealed beam unit is listed for both Home... READ MORE |
||
|
GLU101 |
LIGHT UNIT SEALED BEAM RHDThis item has been superceded by 13H3471A - see below |
||
|
13H3471A |
LAMP UNIT (60/45W) with Pilot |
£24.84 Ex VAT @ 20% |
|
|
512241 |
P45T HEADLAMP LHDRevington TR information: There is much confusion between the TR250, TR5 and TR6 parts books as to the correct part numbers for headlamps. In most TR6 parts books for instance 514578 sealed beam unit is listed for both Home... READ MORE |
