MOTOR WIPER 14W TR6 EXCHANGE
IN STOCK This part is immediately available

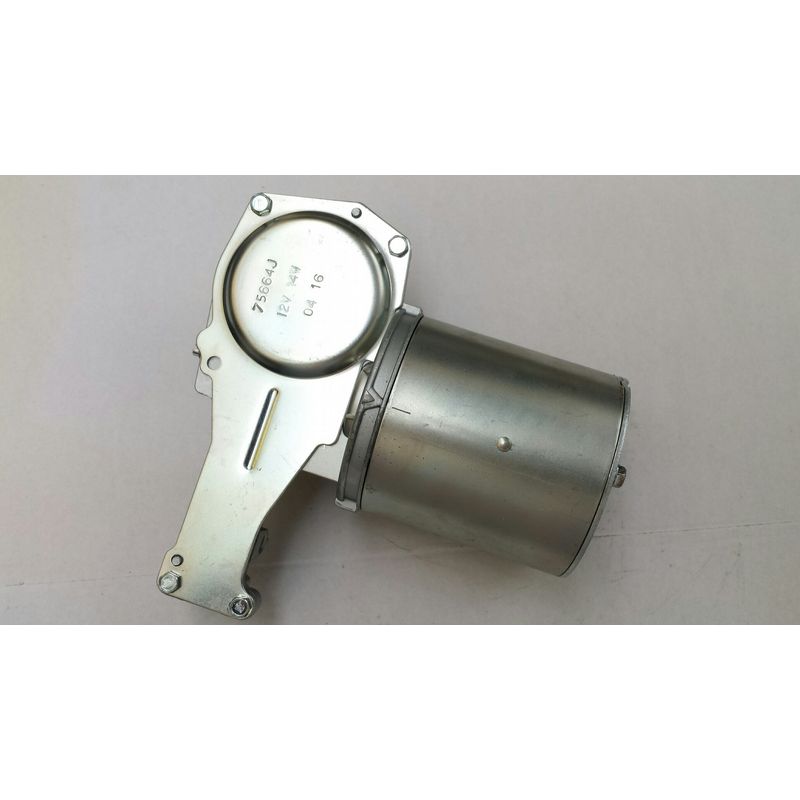

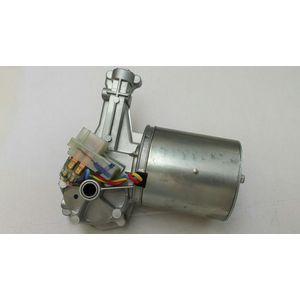

Exchange Wiper Motor 14W type. The gear wheel from your old unit will need to be fitted (it should give 115 degree sweep). Consider second hand part GXE7708SH.
A new gearwheel can be purchased (a TR6 has a sweep of 115 degrees) part number 37H3048.
When fitting a new gearwheel, a washer pack part number RTR8288 may be needed.
Consider also second hand part GXE7708SH. See below
For reference TR2-5 Wiper motor fitments are as follows: -
TR2 Motor part No. 501684. TSI TS996 single speed CRT type. Wiper spacing 10"
TR2 TR3 Motor part No. 501684. TS997 TS12567 CRT type. Wiper spacing 12"
TR3 TR4 Motor part No. 505124. TS12568 CT7783 (RHD) and CT30 (LHD) DR2 type. Wiper spacing 14 ¾"
TR4 Motor part No. 510985. From CT7784 (RHD) & CT31 (LHD). DR3A type. Single speed
TR4A 5 Motor part No. 514821. Two speed DR3A type (also optional equipment TR3 from TS12568 onwards.
32 plates in total
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
37H3048 |
GEAR WIPER TR6 115 DEGRevington TR information: When fitting this gearwheel you may need the washers and circlip as some new gearwheels come with these supplied and some do not. Order kit RTR8288 Note: - Gears offering different sweeps are available to. Please enquire. If... READ MORE |
£72.31 Ex VAT @ 20% |
|
|
GXE7708 |
MOTOR WIPER 14W TR6Revington TR information: Wiper motor 14W type. These new units come without a gearwheel as the unit is used in many applications with differing sweep requirements. The gearwheel from your old unit will need to be fitted to the... READ MORE |
£88.94 Ex VAT @ 20% |
|
 |
625533X |
PLATE TR6 type WIPER MOTOR MNTG TR4-5Revington TR information: Wipe Motor Support Bracket for 14W motor. This version of 625533 bolts to the body rather than being welded and is intended for TR4, 4A, 250 and 5 when converting to the stronger wiper motor system... READ MORE |
£59.00 Ex VAT @ 20% |
|
|
625533 |
PLATE WIPER MOTOR MOUNTING TR6Revington TR information: Plate, wiper motor support TR6. this part is welded to the bulkhead however we can also offer 625533X which is a similar product which bolts in place. . |
£77.72 Ex VAT @ 20% |
|
|
GXE7708SCREW |
SCREW WIPER MOTOR |
£1.00 Ex VAT @ 20% |
|
|
GXE7708SH |
Second Hand MOTOR WIPER 14W TR6Revington TR information: Revington TR supply this Wiper Motor Second Hand Complete but can offer no guarantee about its ability to perform. Order a rebuilt part GXE7708EX if a part guaranteed to work is required. For reference TR2-5 Wiper... READ MORE |
£88.74 Ex VAT @ 20% |
|
|
RTR8288
|
WASHER & CIRCLIP KITRevington TR information: This kit consists of a bevel washer (fitted between the gear and body), shim washer and circlip (both fitted on the end of the shaft) which are used to secure the gearwheel in 14W type wiper... READ MORE |
£4.98 Ex VAT @ 20% |
|
|
GXE7708P |
WIPER MOTOR PLUG |
£14.50 Ex VAT @ 20% |
