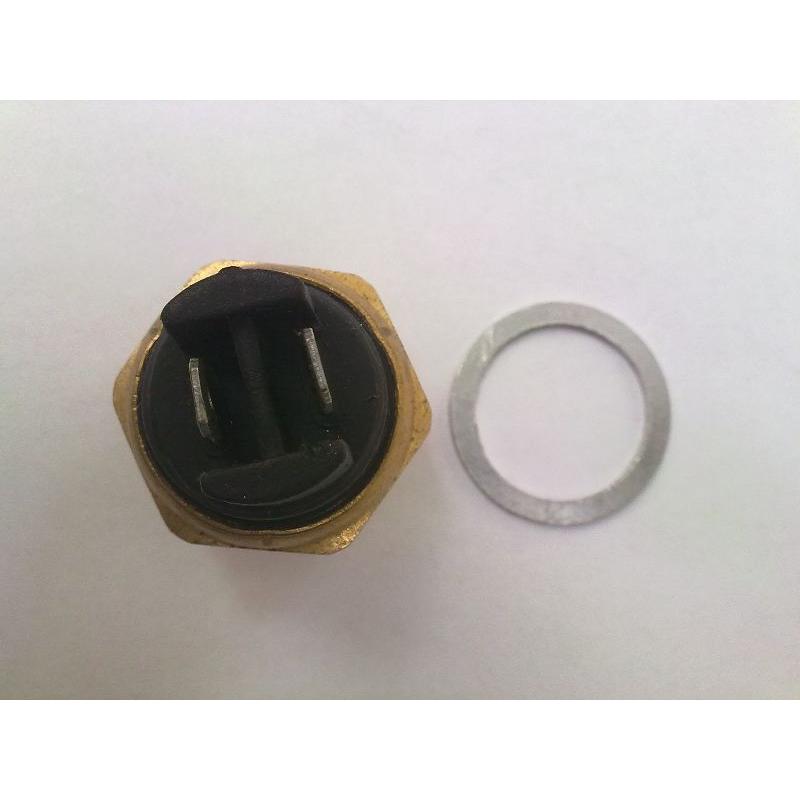

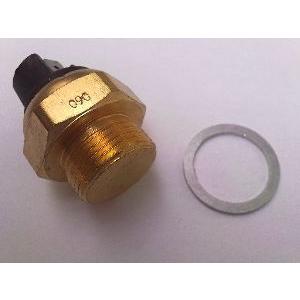

SWITCH THERMO ON @ 88°C OFF @ 74°C
IN STOCK This part is immediately available
This switch is intended to control a relay RTR8012 which in turn operates an engine electric fan. The switch turns on at 88 degree C, off at 74 degree C. Thread size: M22 x 1.5mm. Seal with washer WF1121846. This switch will only take the current of a relay, say about 500ma whereas the fan will draw as much 25 amps on start up.
With the switch turning the fan on and off it will work, but not for very long before its contacts will burn out.Revington TR offer a range of Radiator Cooling Fan kits split into 3 groups as follows: -
- RTR1488K one Universal kit
- RTR1416 series is our Standard range which includes a higher quality Fan than kit RTR1488K, 'Pull Through' Clamps to attach the fan directly to the radiator core, and an Adjustable Thermostatic Temperature Controller (In Line Electronic Type).
- RTR1483 series is our Deluxe range which includes the same high quality Fan that is used in the RTR1416 series, Bespoke Brackets to attach the Fan to the radiator frame, and an Adjustable Thermostatic Temperature Controller (In Line Electronic Type).
In addition for those who wish to compose their own kit, the various individual components can be ordered separately. These are listed below but fit into the following categories: -
- Fans
- Switch and relay kits
- Adjustable Temperature Switch and relay kits
- Adjustable Temperature Switch incorporated into TR2-4A or TR5-6 down pipe and relay kits
- Fixed Temperature Switch incorporated into TR2-4A or TR5-6 down pipe and relay kits
- Fixed Temperature Switches
- Crank Bolt Sets
- 'Pull Through' Clamps
Tip: - Always clean hose connections thoroughly and rough up shiny pipes onto which hoses will be fitted. Use Heldite sealant around the inside of the hose. This ensures a perfect seal without undue hose clip pressure being needed.
Engine, Transmission, wheels/Tyres and Heating/Cooling
46 plates in total
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
RTR1028K
|
CRANK WASHER & BOLT SET TR5-6Revington TR information: TR250, 5, 6 and Saloon etc. Crank washer and short bolt set. Used when fan, hub and extension are removed, usually in conjunction with the installation of an electric fan behind the radiator. Converting a Triumph... READ MORE |
£33.43 Ex VAT @ 20% |
|
 |
RTR1483-1B
|
FAN CONTROLLER IN HOSE 32mmRevington TR information: This Engine Fan Controller (EFC) is suitable for all hoses with an internal diameter of 32mm; that makes it suitable for TR250, 5, 6 and 7. Revotec adjustable EFC's can be retro fitted to any existing... READ MORE |
£135.97 Ex VAT @ 20% |
|
 |
RTR1483-1A
|
FAN CONTROLLER IN HOSE 35mm TR2-4ARevington TR information: This Engine Fan Controller (EFC) is suitable for all hoses with an internal diameter of 35mm; that makes it suitable for TR2-4A, when an additional short hose 133309OS is required. Revotec adjustable EFC's can be retro... READ MORE |
£137.10 Ex VAT @ 20% |
|
 |
RTR1483-1D
|
FAN CONTROLLER SCREW M22x1.5mmRevington TR information: This Engine Fan Controller (EFC) is suitable for all cars which have an M22x1.5mm threaded boss in the radiator, header tank or down tube Revotec adjustable EFC's can be retro fitted to any existing electric radiator... READ MORE |
£135.97 Ex VAT @ 20% |
|
 |
TDC5001-125 |
HELDITE 125ml TIN WITH APPLICATORRevington TR information: This excellent jointing compound is supplied in a tin with an applicator brush. Heldite provides a perfect gas and fluid seal. Not available to Customer outside of the UK. Applied with an applicator brush integral with... READ MORE |
£14.39 Ex VAT @ 20% |
|
 |
RTR1389AK
|
KIT ADJ. FAN SWITCH/PIPE TR2-4ARevington TR information: This kit is used to switch an electrical engine fan on and off; it fits TR2-4A and includes a down pipe adapted to take a screw in thermo switch, relay, adjustable thermo switch, fittings and fitting... READ MORE |
£211.61 Ex VAT @ 20% |
|
 |
RTR1389BK
|
KIT ADJ. FAN SWITCH/PIPE TR250, 5, 6 UKRevington TR information: This kit is used to switch an electrical engine fan on and off; it fits TR250, 5, 6 with a UK spec. radiator fitted and includes a down pipe adapted to take a screw in thermo... READ MORE |
£211.61 Ex VAT @ 20% |
|
 |
RTR1389CK
|
KIT ADJ. FAN SWITCH/PIPE TR250, 5, 6 USARevington TR information: This kit is used to switch an electrical engine fan on and off; it fits TR250, 5, 6 with a USA spec. radiator fitted and includes a down pipe adapted to take a screw in thermo... READ MORE |
£211.61 Ex VAT @ 20% |
|
 |
130039SST |
PIPE WITH ADAPTORRevington TR information: TR2-4A Radiator pipe in stainless steel, with boss to accept electrical fan direct operation switch, IM50090, RTR1483-1D etc. Fitting Tips Rough up the surface of the pipe with emery cloth where the hose will fit to... READ MORE |
£47.72 Ex VAT @ 20% |
|
 |
158417SST |
PIPE WITH SWITCH PORT 6 CYL CARBRevington TR information: TR6 USA radiator pipe in stainless steel, with boss to accept electrical fan direct operation switch, IM50090 etc. |
£54.00 Ex VAT @ 20% |
|
 |
145398SST |
PIPE WITH SWITCH PORT TR5/6Revington TR information: TR5-6 All non USA cars, radiator pipe stainless steel with boss to accept electrical fan direct operation switch, IM50090, RTR1383-1D etc. Fitting Tips Rough up the surface of the pipe with emery cloth where the... READ MORE |
£72.43 Ex VAT @ 20% |
|
 |
RTR9113ZIPS
|
PULL THROUGH FAN MOUNT KIT OF 4Revington TR information: These ties are strong enough to hold a radiator electric fan firmly against the radiator core. The kit includes 4 ties, nuts and soft pads |
£14.93 Ex VAT @ 20% |
|
 |
RTR1483-2A
|
RADIATOR COOLING FAN 280mm (11") SUCTIONRevington TR information: This 280mm (11") suction fan (in a 12" casing) assembly by Revotec is manufactured to OEM quality standards and will provide excellent cooling. These fans ( for other part numbers) are a great way to... READ MORE |
£132.12 Ex VAT @ 20% |
|
 |
RTR1483-2B
|
RADIATOR COOLING FAN 355mm (14") SUCTIONRevington TR information: This 355mm (14") suction fan assembly by Revotec is manufactured to OEM quality standards and will provide excellent cooling. These fans ( for other part numbers) are a great way to control the temperature of... READ MORE |
£150.17 Ex VAT @ 20% |
|
 |
RTR8012
|
RELAY 12V 30A GEN PURPOSERevington TR information: General purpose 12V 30A relay for use with all high power auxiliary equipment for best performance of equipment and to minimise fire risk due to wiring overload |
£11.57 Ex VAT @ 20% |
|
 |
IM50250 |
SWITCH THERMO ON @ 88°C OFF @ 74°CRevington TR information: This switch is intended to control a relay RTR8012 which in turn operates an engine electric fan. The switch turns on at 88 degree C, off at 74 degree C. Thread size: M22 x 1.5mm. Seal... READ MORE |
£32.22 Ex VAT @ 20% |
|
 |
IM50090 |
THERMO SWITCH ON @ 86°C OFF @ 81°CRevington TR information: This switch is intended to control a relay RTR8012 which in turn operates an engine electric fan. The switch turns on at 86 degrees C, off at 81 degrees C. Thread size: M22 x 1.5mm. Seal... READ MORE |
£36.06 Ex VAT @ 20% |
|
|
IM50200 |
THERMO SWITCH ON @ 92°C OFF @ 87°CRevington TR information: This switch is intended to control a relay RTR8012 which in turn operates an engine electric fan. The switch turns on at 92 degree C, off at 87 degree C. Thread size: M22 x 1.5mm. Seal... READ MORE |
£32.22 Ex VAT @ 20% |
|
 |
RTR1027K
|
WASHER SET CRANK TR2-4ARevington TR information: TR2-4A Crank washer and short bolt set for use when the engine fan hub extension is removed. This kit secures the fan pulley and inner hub (which the front oil seal bears on) to the crankshaft.... READ MORE |
£23.33 Ex VAT @ 20% |
