FLYWHEEL RING GEAR FITTED

RTR Upgrade
Part No:
RTR1012CPG
Price
£757.96
Price Ex VAT @ 20%
£631.63

AVAILABLE This part is available to order

1 image

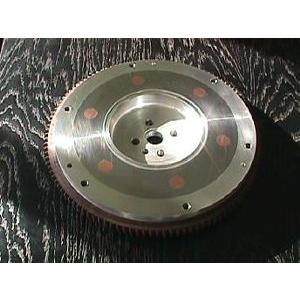

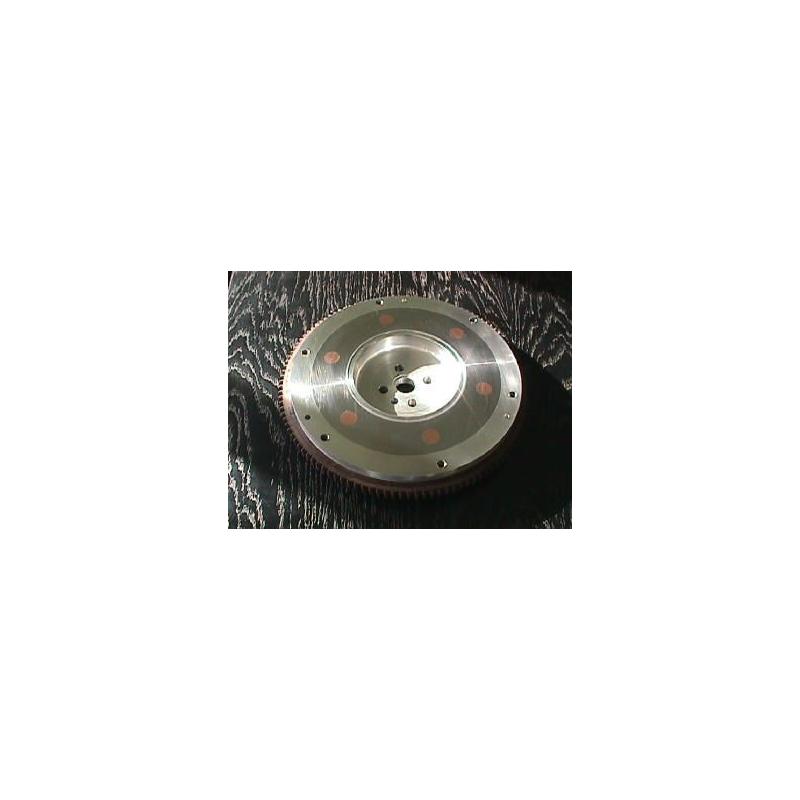

TR250, 5, 6. Aluminium flywheel for increased engine response and reliability. Superbly machined with steel clutch face, these weigh 4.2kg + 1.2kg ring gear (5.4kg Total) (Standard TR5-6CP weight 9.6kg with ring gear)

The Flywheel is supplied machined to fit a standard crankshaft and is drilling and tapped to take a standard TR4A-6 diaphragm type 8-1/2" clutch. The flywheel is designed to accept a standard ring gear part number 201350, which can be supplied separately. See below (except RTR1012CPG, RTR1012CPXG, RTR1012CRG and RTR1012CRXG where the ring gear is already fitted).
Note 1: - When attaching an aluminium flywheel to the crankshaft, it is important that plate UKC6339SH listed below is used to ensure the clamping load is evenly spread and that the heads of the attachment bolts don't dig into the softer aluminium.
Note 2: - When changing a flywheel it is important to know if you have a 'short back' or 'long back' crankshaft. Please read information sheet IS0035 (downloadable via the link below) to find out how to identify the crankshaft in your engine.
