ROLLER ROCKER SET WP TR2-4A HIGH RATIO

RTR Upgrade
Part No:
RTR1195-1.65-1K

NOT AVAILABLE This part is no longer available

Image 1
1 image

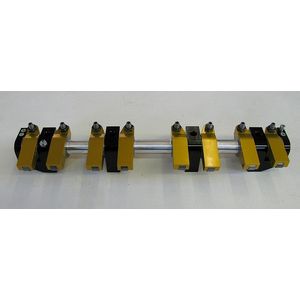

TR2-4A roller rocker set. 1.65:1 ratio. Produced from aircraft specification aluminium. This complete kit includes a new shaft, billet machined aluminium pedestals incorporating rocker end supports, spacers and 8 roller rockers.

No other modifications are required with the exception of the rocker cover. It will be necessary to use an aluminium rocker cover of the RTR1098 series or RTR1099 series as the rockers foul the standard tin cover.
Benefits include reduced value gear wear and less power loss as a result of low friction and more rigid construction. This kit increases the ratio to 1.65:1 giving 6% extra lift. Kit part number RTR1195-1.55K retains the standard rocker ratio of 1.55:1. When coupled with a few other modifications, such as exhaust system RTR2074K and possibly a gas flowed head, the extra lift provided by this 1.65:1 kit will give a noticeable power increase, without the need to install a longer duration camshaft or increase the compression ratio. When a high lift camshaft is to be installed, use the 1.55:1 ratio kit, to avoid valve contact with pistons.

We also have economy sets available which include a new shaft and 8 roller rockers, which you build into a rocker assembly using your existing pedestals and springs/spacers, RTR1195-1.55K and RTR1195-1.65K. See below

GENERAL INFORMATION
There are two types of roller rocker sets, varying only in the ratio between camshaft lift and the resultant valve lift. The standard ratio for a Triumph TR2-4A and TR250, 5, 6 is 1.55:1 meaning that for every 1mm of camshaft lift, the valve will move 1.55mm.
1.55 :1 ratio is the standard ratio and will change nothing with respect to the engine set up but offers less resistance in the valve train bringing longer life to the affected components and to a very small extent increased power due to less resistance for the engine to overcome.
1.65:1 ratio increases the lift from the same cam, offers the same benefits and the 1.55:1 set and can increase the performance but this by no means certain as the condition of the engine and the components in it will affect this. Also, the extra lift has to be accommodated by the components in the valve train. A competent mechanic needs to check that the valve springs will not become coil bound, the rocker geometry is adjusted, the push are the right length and that there are no interferences between components.
After all this has proved satisfactory the engine will need re-tuning on a rolling road for best results.
Revington TR can undertake this work on their 400hp rolling road.
