KIT ADJ. FAN SWITCH/PIPE TR2-4A

RTR Upgrade
Part No:
RTR1389AK
Price
£211.61
Price Ex VAT @ 20%
£176.34

AVAILABLE This part is available to order

EFC M22
EFC M22
3 images

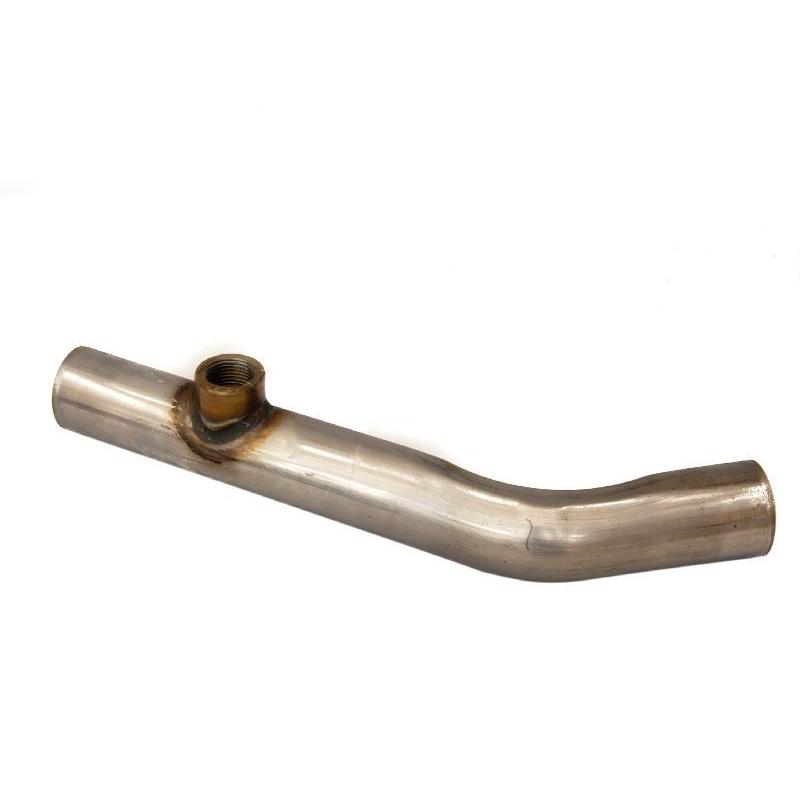

This kit is used to switch an electrical engine fan on and off; it fits TR2-4A and includes a down pipe adapted to take a screw in thermo switch, relay, adjustable thermo switch, fittings and fitting instructions.

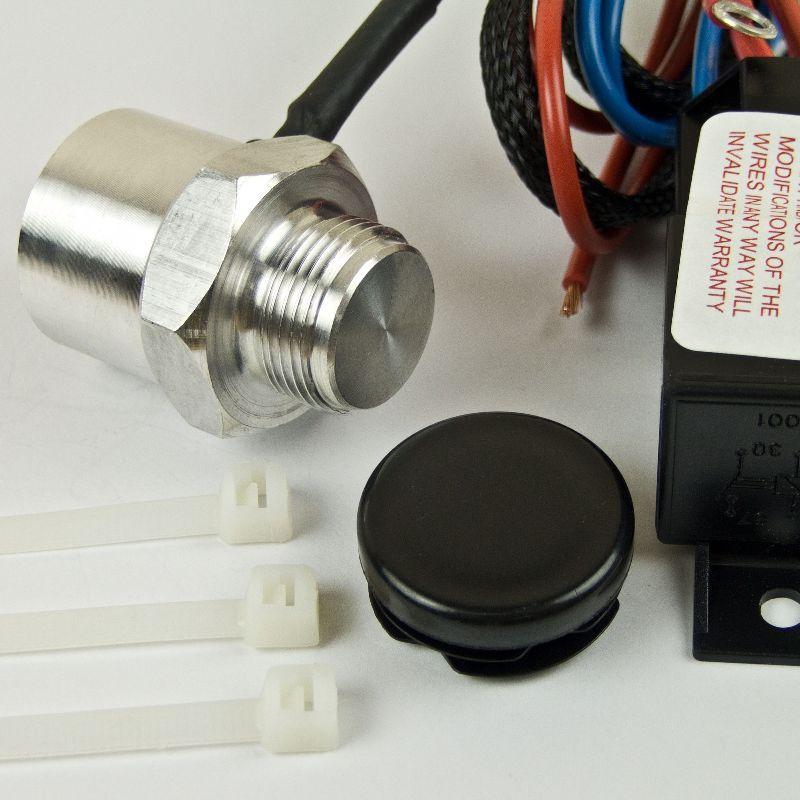

The Revotec adjustable switching unit used in this kit incorporates the latest type of surface mounted electronic sensor to monitor the temperature of the water in the cooling system. The sensor is screwed into the water pipe, thus eliminating the need for capillary probes or radiator mounted clip on devices. This ensures that the coolant flow is not impaired, accurate temperature control is maintained and effective sealing of the coolant system is assured.

  • No probes or capillary tubes
  • OEM quality
  • Accurate heat control range from 70 - 120°C
  • Kit Includes a sensor kit, adapted down pipe, additionasl woring fuse holder and connectors. The sensor sub kit includes a relay, cable ties, a cap for the sensor, 700mm of wiring loom wired into the sensor and the relay mounting and fitting instructions.
  • Light weight
  • 12 Volt. Negative earth only

Revington TR offer a range of Radiator Cooling Fan kits split into 3 groups as follows: -
  • RTR1488K one Universal kit
  • RTR1416 series is our Standard range which includes a higher quality Fan than kit RTR1488K, 'Pull Through' Clamps to attach the fan directly to the radiator core, and an Adjustable Thermostatic Temperature Controller (In Line Electronic Type).
  • RTR1483 series is our Deluxe range which includes the same high quality Fan that is used in the RTR1416 series, Bespoke Brackets to attach the Fan to the radiator frame, and an Adjustable Thermostatic Temperature Controller (In Line Electronic Type).

In addition for those who wish to compose their own kit, the various individual components can be ordered separately. These are listed below but fit into the following categories: -
  • Fans
  • Switch and relay kits
    • Adjustable Temperature Switch and relay kits
    • Adjustable Temperature Switch incorporated into TR2-4A or TR5-6 down pipe and relay kits
    • Fixed Temperature Switch incorporated into TR2-4A or TR5-6 down pipe and relay kits
    • Fixed Temperature Switches
    • Crank Bolt Sets
    • 'Pull Through' Clamps

    Tip: - Always clean hose connections thoroughly and rough up shiny pipes onto which hoses will be fitted. Use Heldite sealant around the inside of the hose. This ensures a perfect seal without undue hose clip pressure being needed.
