FAN CONTROLLER IN HOSE 35mm TR2-4A

RTR Upgrade
Part No:
RTR1483-1A
Price
£137.10
Price Ex VAT @ 20%
£114.25

IN STOCK This part is immediately available

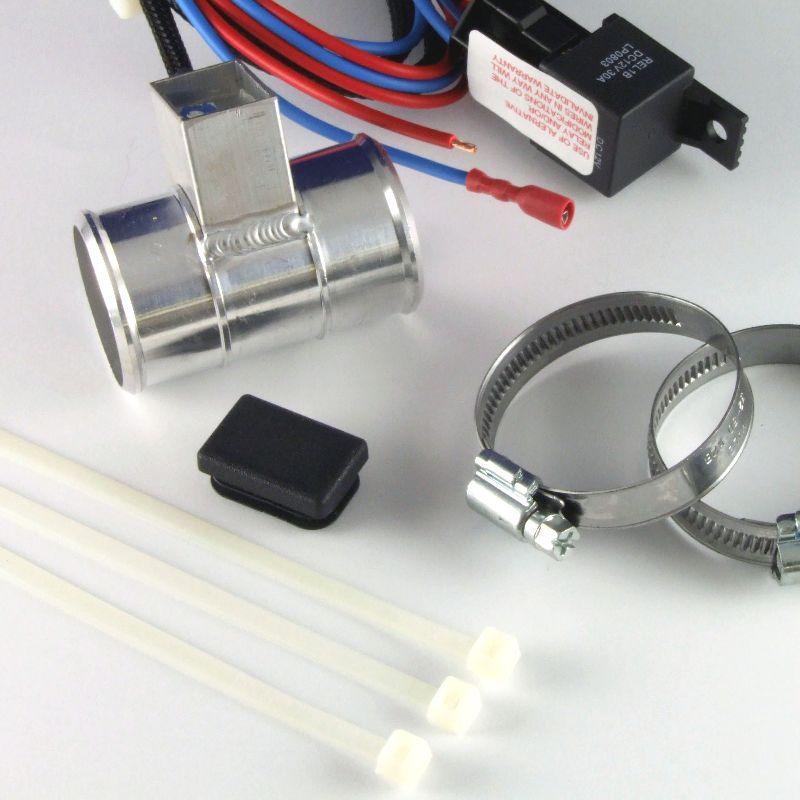

EFC 35
EFC 35
1 image

This Engine Fan Controller (EFC) is suitable for all hoses with an internal diameter of 35mm; that makes it suitable for TR2-4A, when an additional short hose 133309OS is required.

Revotec adjustable EFC's can be retro fitted to any existing electric radiator cooling fan system to give precise switching, adjustable through a wide temperature range, of the cooling fan. These units use the latest type of surface mounted electronic sensor to monitor the temperature of the water in the cooling system and are designed to fit neatly into the cooling system without using capillary probes or radiator mounted clip on devices. This ensures that the coolant flow is not impaired, accurate temperature control is maintained and effective sealing of the coolant system is assured.
  • No probes or capillary tubes
  • OEM quality
  • Accurate heat control range from 70 - 120°C
  • Kit Includes a relay & 700mm of wire
  • Light weight
  • 12 Volt. Negative earth only
There are 2 types of EFC available: In line Hose Fitting - this type of EFC fits directly into the top or bottom hose depending upon available space. The hose should be cut and the EFC installed according to the instructions. Threaded Fitting - this type of EFC screws directly into the radiator or the down pipe (Typically TR2-6 with a boss added to the down pipe with an M22 x 1.5mm thread). Revington TR offer a range of Radiator Cooling Fan kits split into 3 groups as follows: -
  • RTR1488K one Universal kit
  • RTR1416 series is our Standard range which includes a higher quality Fan than kit RTR1488K, 'Pull Through' Clamps to attach the fan directly to the radiator core, and an Adjustable Thermostatic Temperature Controller (In Line Electronic Type).
  • RTR1483 series is our Deluxe range which includes the same high quality Fan that is used in the RTR1416 series, Bespoke Brackets to attach the Fan to the radiator frame, and an Adjustable Thermostatic Temperature Controller (In Line Electronic Type).
In addition for those who wish to compose their own kit, the various individual components can be ordered separately. These are listed below but fit into the following categories: -
  • Fans
  • Switch and relay kits
    • Adjustable Temperature Switch and relay kits
    • Adjustable Temperature Switch incorporated into TR2-4A or TR5-6 down pipe and relay kits
    • Fixed Temperature Switch incorporated into TR2-4A or TR5-6 down pipe and relay kits
    • Fixed Temperature Switches
    • Crank Bolt Sets
    • 'Pull Through' Clamps
    Tip: - Always clean hose connections thoroughly and rough up shiny pipes onto which hoses will be fitted. Use Heldite sealant around the inside of the hose. This ensures a perfect seal without undue hose clip pressure being needed.
