FAN CONTROLLER SCREW M22x1.5mm
IN STOCK This part is immediately available
This Engine Fan Controller (EFC) is suitable for all cars which have an M22x1.5mm threaded boss in the radiator, header tank or down tube
Revotec adjustable EFC's can be retro fitted to any existing electric radiator cooling fan system to give precise switching of the cooling fan, adjustable through a wide temperature range.These units use the latest type of surface mounted electronic sensor to monitor the temperature of the water in the cooling system and are designed to fit neatly into the cooling system without using capillary probes or radiator mounted clip on devices. This ensures that the coolant flow is not impaired, accurate temperature control is maintained and effective sealing of the coolant system is assured.
- No probes or capillary tubes
- OEM quality
- Accurate heat control range from 70 - 120°C

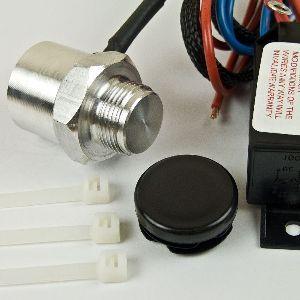

- Kit Includes the sensor a relay, cable ties, a cap for the sensor, 700mm of wiring loom wired into the sensor and the relay mounting and fitting instructions.
- Light weight
- 12 Volt. Negative earth only
There are 2 types of EFC available:
In line Hose Fitting - this type of EFC fits directly into the top or bottom hose depending upon available space. The hose should be cut and the EFC installed according to the instructions. RTR1483-1D is not this type, but is included for reference here as we have this type in our range

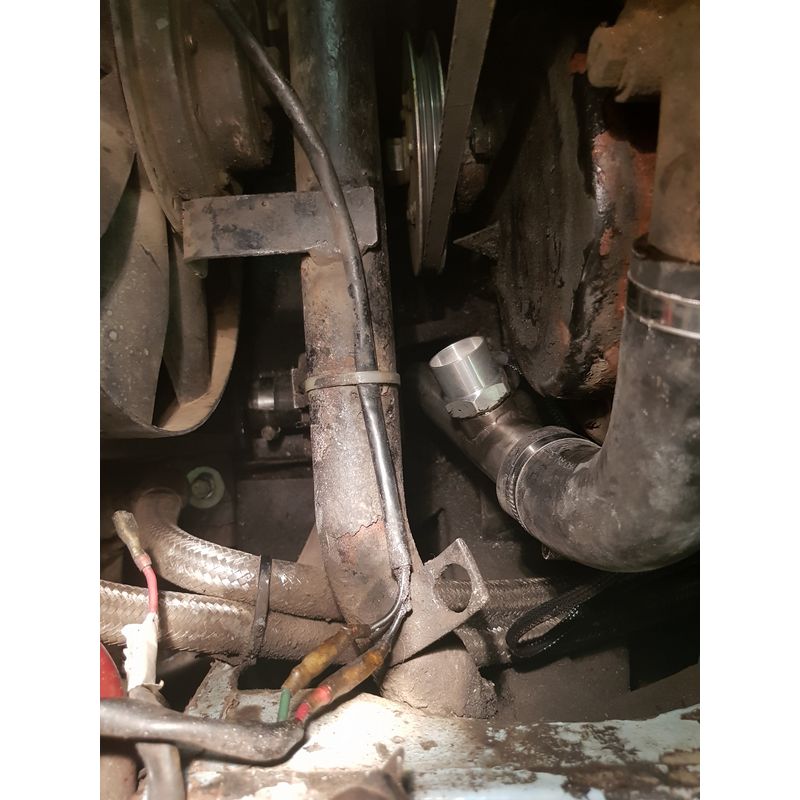

Threaded Fitting - this type of EFC screws directly into the radiator or the down pipe (Typically TR2-6 with a boss added to the down pipe with an M22 x 1.5mm thread). This the RTR1483-1D type
Revington TR offer a range of Radiator Cooling Fan kits split into 3 groups as follows: -
- RTR1488K one Universal kit
- RTR1416 series is our Standard range which includes a higher quality Fan than kit RTR1488K, 'Pull Through' Clamps to attach the fan directly to the radiator core, and an Adjustable Thermostatic Temperature Controller (In Line Electronic Type).
- RTR1483 series is our Deluxe range which includes the same high quality Fan that is used in the RTR1416 series, Bespoke Brackets to attach the Fan to the radiator frame, and an Adjustable Thermostatic Temperature Controller (In Line Electronic Type).
In addition for those who wish to compose their own kit, the various individual components can be ordered separately. These are listed below but fit into the following categories: -
- Fans
- Switch and relay kits
- Adjustable Temperature Switch and relay kits
- Adjustable Temperature Switch incorporated into TR2-4A or TR5-6 down pipe and relay kits
- Fixed Temperature Switch incorporated into TR2-4A or TR5-6 down pipe and relay kits
- Fixed Temperature Switches
- Crank Bolt Sets
- 'Pull Through' Clamps
Tip: - Always clean hose connections thoroughly and rough up shiny pipes onto which hoses will be fitted. Use Heldite sealant around the inside of the hose. This ensures a perfect seal without undue hose clip pressure being needed.
46 plates in total
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
130039SST |
PIPE WITH ADAPTORRevington TR information: TR2-4A Radiator pipe in stainless steel, with boss to accept electrical fan direct operation switch, IM50090, RTR1483-1D etc. Fitting Tips Rough up the surface of the pipe with emery cloth where the hose will fit to... READ MORE |
£47.72 Ex VAT @ 20% |
|
 |
145398SST |
PIPE WITH SWITCH PORT TR5/6Revington TR information: TR5-6 All non USA cars, radiator pipe stainless steel with boss to accept electrical fan direct operation switch, IM50090, RTR1383-1D etc. Fitting Tips Rough up the surface of the pipe with emery cloth where the... READ MORE |
£72.43 Ex VAT @ 20% |
|
 |
TDC5001-125 |
HELDITE 125ml TIN WITH APPLICATORRevington TR information: This excellent jointing compound is supplied in a tin with an applicator brush. Heldite provides a perfect gas and fluid seal. Not available to Customer outside of the UK. Applied with an applicator brush integral with... READ MORE |
£14.39 Ex VAT @ 20% |
|
 |
RTR1028K
|
CRANK WASHER & BOLT SET TR5-6Revington TR information: TR250, 5, 6 and Saloon etc. Crank washer and short bolt set. Used when fan, hub and extension are removed, usually in conjunction with the installation of an electric fan behind the radiator. Converting a Triumph... READ MORE |
£33.43 Ex VAT @ 20% |
|
 |
RTR1483-1B
|
FAN CONTROLLER IN HOSE 32mmRevington TR information: This Engine Fan Controller (EFC) is suitable for all hoses with an internal diameter of 32mm; that makes it suitable for TR250, 5, 6 and 7. Revotec adjustable EFC's can be retro fitted to any existing... READ MORE |
£135.97 Ex VAT @ 20% |
|
 |
RTR1483-1A
|
FAN CONTROLLER IN HOSE 35mm TR2-4ARevington TR information: This Engine Fan Controller (EFC) is suitable for all hoses with an internal diameter of 35mm; that makes it suitable for TR2-4A, when an additional short hose 133309OS is required. Revotec adjustable EFC's can be retro... READ MORE |
£137.10 Ex VAT @ 20% |
|
 |
RTR1483-1C
|
FAN CONTROLLER IN HOSE 38mmRevington TR information: This Engine Fan Controller (EFC) is suitable for all hoses with an internal diameter of 38mm; that makes it suitable for TR8 and TR7 V8 conversions but check your particular top hose I/D Revotec adjustable EFC's... READ MORE |
£135.97 Ex VAT @ 20% |
|
 |
RTR1389AK
|
KIT ADJ. FAN SWITCH/PIPE TR2-4ARevington TR information: This kit is used to switch an electrical engine fan on and off; it fits TR2-4A and includes a down pipe adapted to take a screw in thermo switch, relay, adjustable thermo switch, fittings and fitting... READ MORE |
£211.61 Ex VAT @ 20% |
|
 |
RTR1389/5-6K
|
KIT FAN SWITCH/PIPERevington TR information: This kit switches an electrical engine fan on and off; it fits TR250, 5 and 6 with a UK spec. radiator fitted and includes a down pipe adapted to take a screw in thermo switch, relay,... READ MORE |
£146.20 Ex VAT @ 20% |
|
 |
RTR9113ZIPS
|
PULL THROUGH FAN MOUNT KIT OF 4Revington TR information: These ties are strong enough to hold a radiator electric fan firmly against the radiator core. The kit includes 4 ties, nuts and soft pads |
£14.93 Ex VAT @ 20% |
|
 |
RTR1483-2A
|
RADIATOR COOLING FAN 280mm (11") SUCTIONRevington TR information: This 280mm (11") suction fan (in a 12" casing) assembly by Revotec is manufactured to OEM quality standards and will provide excellent cooling. These fans ( for other part numbers) are a great way to... READ MORE |
£132.12 Ex VAT @ 20% |
|
 |
RTR1483-2B
|
RADIATOR COOLING FAN 355mm (14") SUCTIONRevington TR information: This 355mm (14") suction fan assembly by Revotec is manufactured to OEM quality standards and will provide excellent cooling. These fans ( for other part numbers) are a great way to control the temperature of... READ MORE |
£150.17 Ex VAT @ 20% |
|
 |
RTR1483-A
|
REVOTEC DELUX ELECTRIC FAN KIT 12" TR2-4Revington TR information: This kit includes a 280mm (11") suction fan in a 12" casing, crank bolt set (RTR1027K) mounting brackets and a precise adjustable temperature controller. This kit offers optimum cooling performance to ensure your engine runs... READ MORE |
£357.82 Ex VAT @ 20% |
|
 |
RTR1483-B
|
REVOTEC DELUX ELECTRIC FAN KIT 14" TR4ARevington TR information: This kit includes a 355mm (14") suction fan, mounting brackets and a precise adjustable temperature controller. This kit offers optimum cooling performance to ensure your engine runs in its designed temperature range to give best performance... READ MORE |
£339.78 Ex VAT @ 20% |
|
 |
RTR1483-C
|
REVOTEC DELUX ELECTRIC FAN KIT 14" TR5-TR250-TR6Revington TR information: This kit includes a 355mm (14") suction fan, mounting brackets and a precise adjustable temperature controller. This kit offers optimum cooling performance to ensure your engine runs in its designed temperature range to give best performance... READ MORE |
£357.82 Ex VAT @ 20% |
|
 |
RTR1416-AK
|
REVOTEC STANDARD ELECTRIC FAN KIT TR2-4ARevington TR information: This kit includes a 280mm (11") suction fan and a precise adjustable temperature controller. This kit offers optimum cooling performance to ensure your engine runs in its designed temperature range to give best performance and fuel... READ MORE |
£301.46 Ex VAT @ 20% |
|
 |
IM50090 |
THERMO SWITCH ON @ 86°C OFF @ 81°CRevington TR information: This switch is intended to control a relay RTR8012 which in turn operates an engine electric fan. The switch turns on at 86 degrees C, off at 81 degrees C. Thread size: M22 x 1.5mm. Seal... READ MORE |
£36.06 Ex VAT @ 20% |
|
 |
RTR1488K
|
UNIVERSAL 11" RADIATOR FAN KITRevington TR information: Economy Universal 11" Radiator Cooling Fan kit including a range of Adaptor Mounts, 'Pull Through' Clamps to attach the fan directly to the radiator core, and an Adjustable Thermostatic Temperature Controller (Bulb Type) The fan in... READ MORE |
£196.58 Ex VAT @ 20% |
