REVOTEC DELUX ELECTRIC FAN KIT 14" TR4A

RTR Upgrade
Part No:
RTR1483-B
Price
£339.78
Price Ex VAT @ 20%
£283.15

AVAILABLE This part is available to order

tech sheet
tech sheet
4 images

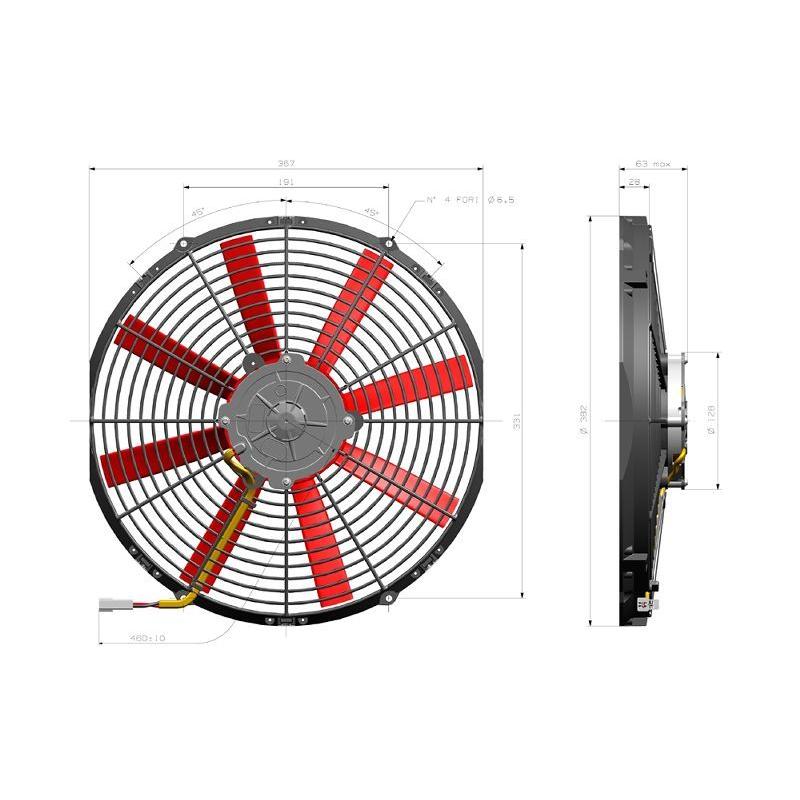

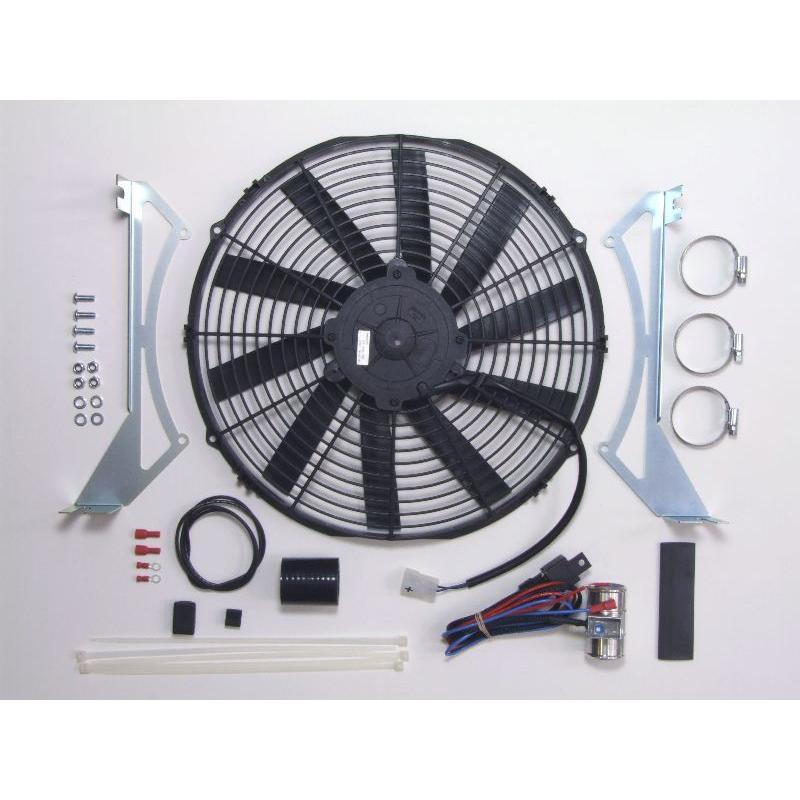

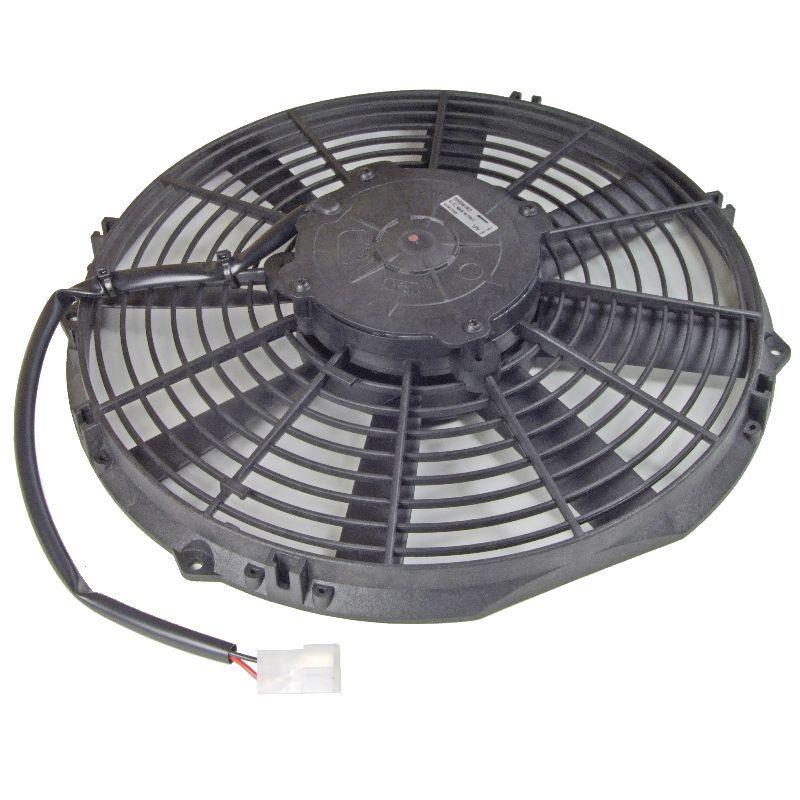

This kit includes a 355mm (14") suction fan, mounting brackets and a precise adjustable temperature controller.

This kit offers optimum cooling performance to ensure your engine runs in its designed temperature range to give best performance and fuel economy.
Unlike other fan kits that use universal mounting systems, this Revotec kit contains bespoke laser cut brackets that mount directly to the radiator lower mountings and the top stay connection points. The brackets are bright zinc plated to give a smart appearance and resist corrosion.

The fan in this kit is the sucking type which means it is intended to be fitted behind the radiator so that the fresh air is sucked through the radiator. The controller can be adjusted so that the fan comes on at a user defined temperature.

This high quality bespoke fan kit which includes the latest high efficiency fan and an adjustable electronic controller has been designed to replace the standard original mechanical fan, reducing the load on the engine, noise and improving both power and fuel economy.

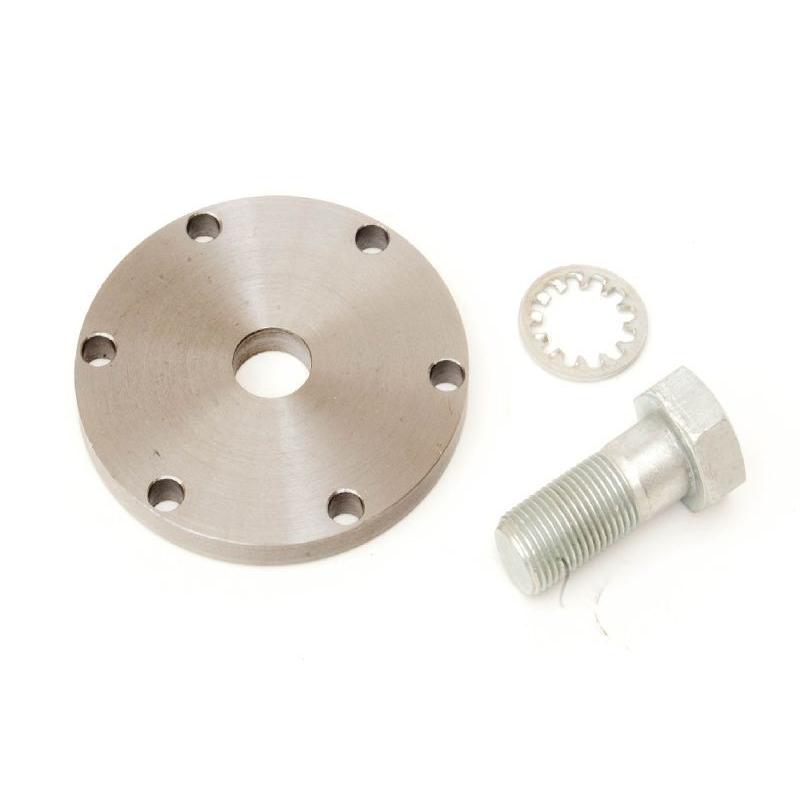

Please note: The standard crank mounted fan & extension will need to be removed and replaced with a crank bolt set consisting of a new bolt, spreader washer & lock washer included in the kit.

The controller supplied in this kit will only work on NEGATIVE EARTH cars.

Revington TR offer a range of Radiator Cooling Fan kits split into 3 groups as follows: -
  • RTR1488K one Universal kit
  • RTR1416 series is our Standard range which includes a higher quality Fan than kit RTR1488K, 'Pull Through' Clamps to attach the fan directly to the radiator core, and an Adjustable Thermostatic Temperature Controller (In Line Electronic Type).
  • RTR1483 series is our Deluxe range which includes the same high quality Fan that is used in the RTR1416 series, Bespoke Brackets to attach the Fan to the radiator frame, and an Adjustable Thermostatic Temperature Controller (In Line Electronic Type).

In addition for those who wish to compose their own kit, the various individual components can be ordered separately. These are listed below but fit into the following categories: -
  • Fans
  • Switch and relay kits
    • Adjustable Temperature Switch and relay kits
    • Adjustable Temperature Switch incorporated into TR2-4A or TR5-6 down pipe and relay kits
    • Fixed Temperature Switch incorporated into TR2-4A or TR5-6 down pipe and relay kits
    • Fixed Temperature Switches
    • Crank Bolt Sets
    • 'Pull Through' Clamps

    Tip: - Always clean hose connections thoroughly and rough up shiny pipes onto which hoses will be fitted. Use Heldite sealant around the inside of the hose. This ensures a perfect seal without undue hose clip pressure being needed.
