HEATER VALVE KIT TR2-3B STD & UNIVERSAL
AVAILABLE This part is available to order

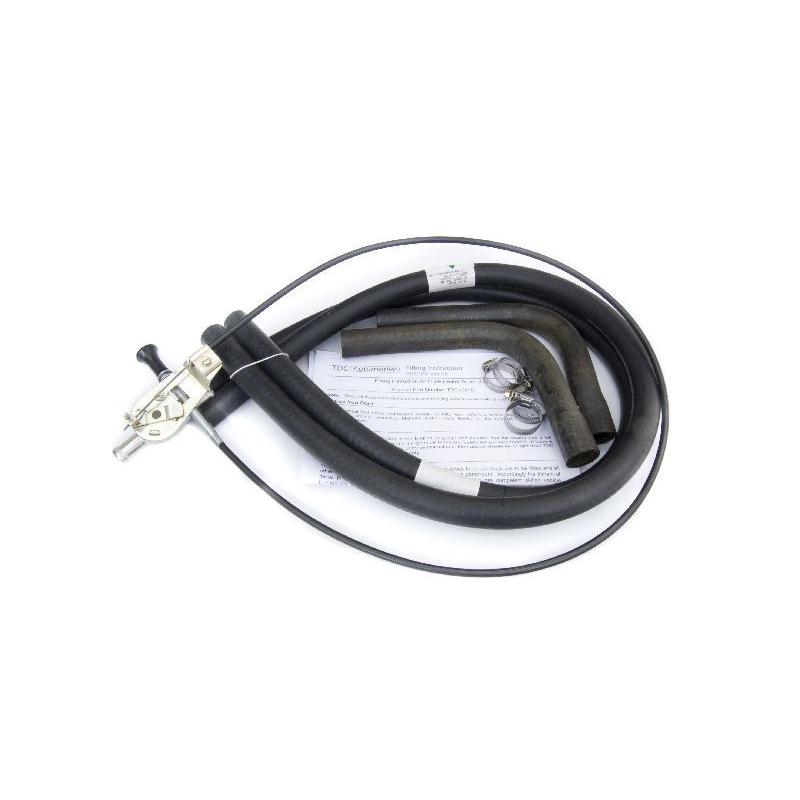

Universal Cabin operated Heater Water Valve Kit, includes a selection of suitable fittings, hoses and general Instructions. This kit enables precision control of heater water flow from within the cabin via a precision inline valve.
This Universal kit is suitable for all vehicles including TR2-3B with a standard heater. For other TR specific kits see belowThis kit includes a suitable selection of hoses allowing it to be fitted to many cars requiring a valve. The hoses allow adaptation from the valve to 13, 16 and 19mm pipe work, clips and fittings are included as well as a 1m long operating cable.
TR2-3B's don't have a valve that is accessible from the cockpit at all, all that is available is a crude tap located in the engine bay. This kit places an inline valve allowing control of the heater from within the cabin using the cable and knob included in the kit. When this heater valve kit is fitted the heater tap on the engine block will no longer be needed and can be replaced with feed pipe kit RTR1491K. See below
This clever inline valve (inline meaning it sits in the water hose) has an internal water flow regulating tumbler with a cleverly designed aperture shape. This means that increase in water flow is proportional to lever movement, providing sensitive control of heater water flow with a very smooth, friction free operation.
Engine, Transmission, wheels/Tyres and Heating/Cooling
78 plates in total
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
RTR1491K
|
HEATER FEED KIT TR2-3ARevington TR information: This kit of parts consists of an angled pipe and fittings to join the bulkhead heater feed hose to the rear top face of the cylinder head when a heater tap is not required. This would... READ MORE |
£41.28 Ex VAT @ 20% |
|
 |
RTR1486-1K
|
HEATER VALVE KIT for TR2-3B FITTED CLAYTON HEATERRevington TR information: Cabin operated Heater Water Valve Kit, suitable for TR2-3B cars fitted with a Clayton Heater (16mm tubes), includes all Fittings and Instructions. This kit enables accurate control of heater water flow from within the cabin via... READ MORE |
£155.40 Ex VAT @ 20% |
|
 |
RTR1395K
|
KIT HEATER UPGRADE TR2-3BRevington TR information: TR2-3B Improved Heater kit, incorporating Clayton's 4kW heater unit. This heater unit has 2 swivel outlet vents, 2 screen demist outlets and a 2-speed blower motor capable of delivering 200cubic meters/hour (115cfm). In addition to the... READ MORE |
£707.15 Ex VAT @ 20% |
|
 |
RTR1486-2K
|
HEATER VALVE KIT TR4-6Revington TR information: Improved Heater Water Valve Kit suitable for TR4, 4a, 250, 5 and 6, including all Fittings and Instructions. This kit replaces the poor standard equipment valve providing better control of heater water flow via a precision... READ MORE |
£171.44 Ex VAT @ 20% |
|
|
RTR1486-4K
|
HEATER VALVE KIT TR4-6 screw in typeRevington TR information: Improved Heater Water Valve Kit; includes new hose, all Fittings and Instructions. This kit replaces the poor standard valve with a new valve which screw directly into the original adaptor, providing better control of heater water... READ MORE |
£160.43 Ex VAT @ 20% |
