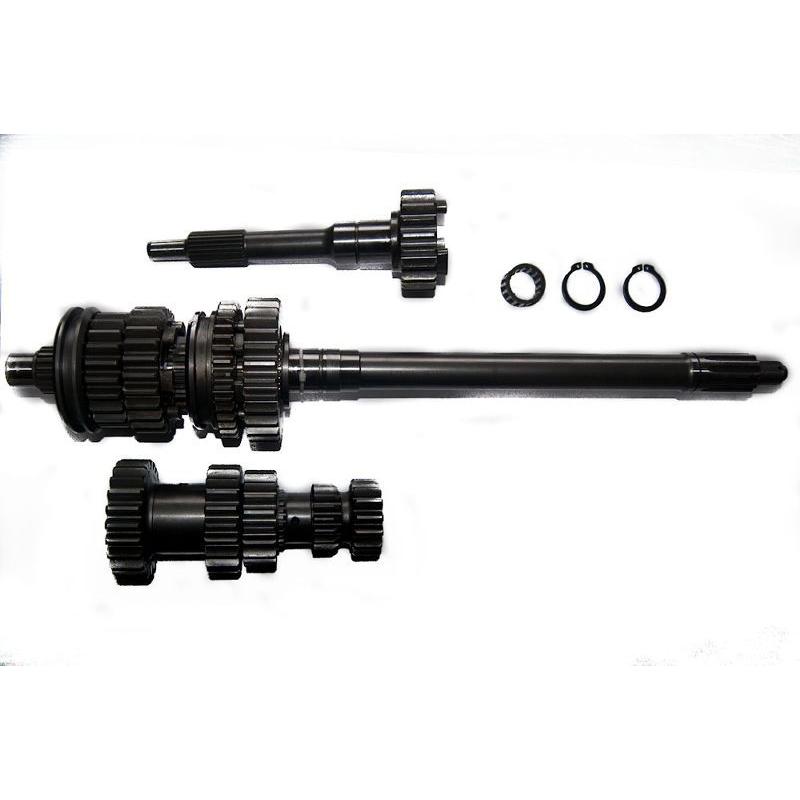

This racing gear set by Quaife offers 'dog' engagement and straight cut gears. Definitely for racing only as they are VERY noisy, the set includes a non-overdrive mainshaft.

The input shaft accepts a clutch plate with a 23 x 1" spline. Revington TR can supply a clutch plate of any diameter, solid or sprung, paddle type or fully faced with this spline to suit any customer requirement Straight cut close ratios gears minimise power losses and optimize performance. Kit uses needle roller bearings to support free running gears. Ratios:- The set includes the following ratios.

1st	2nd	3rd	4th
2.013	1.513	1.205	1:1
2.223

Please specify which first gear is required. As a guide if rolling starts are the norm, use the 2.013:1 first gear and if standing starts are the norm use the 2.223:1 first gear.
