UPPER FULCRUM KIT TR2-6

RTR Upgrade
Part No:
RTR3102K
Price
£321.25
Price Ex VAT @ 20%
£267.71

IN STOCK This part is immediately available

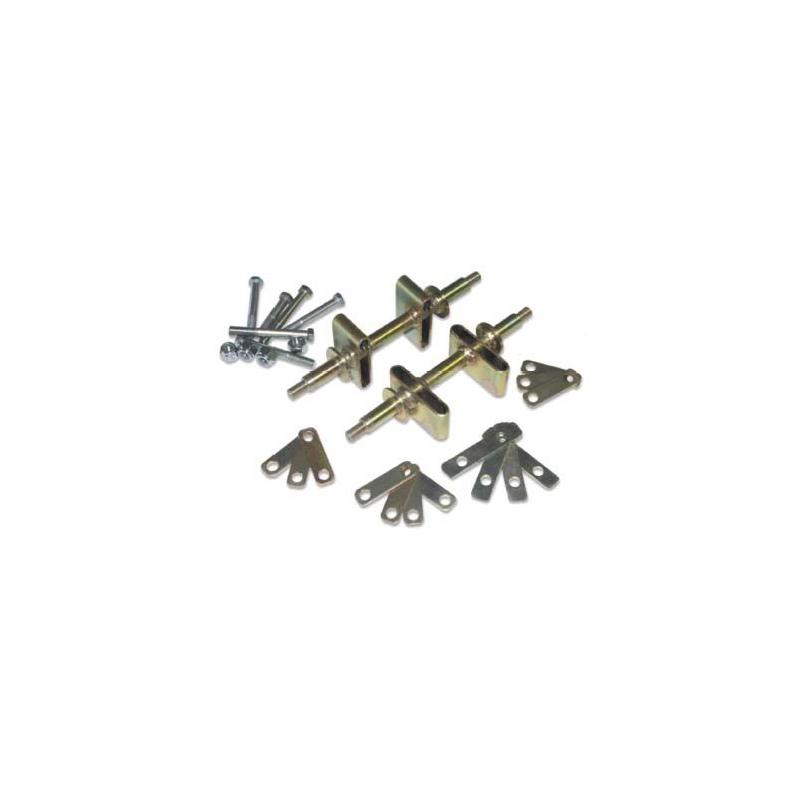

RTR3102K Upper Fulcum Kit .jpg

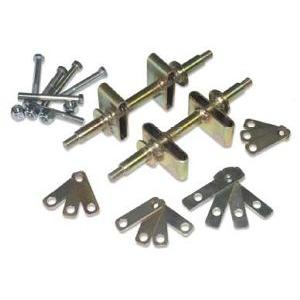

RTR3102K Upper Fulcum Kit .jpg
2 images

TR2-6 adjustable top fulcrum. Enables accurate setting of camber. This useful kit obviates the need to "cut and shut" wishbones to gain meaningful negative camber. Designed and developed by RevingtonTR in 1990 and still a best seller world wide!

This kit incorporates a new style fulcrum which can be slid over the top of the turret allowing accurate camber setting, with enough hardware so that the kit can be used on TR2-4 as well as TR4A to 6. This clever kit also incorporates two height settings, one for road and rally use and one for race use. these settings have been designed and verified by computer modelling techniques to improve road holding stability. Fitting instructions are emailed at time of sale.

Once set, a top plate provided is welded in place to secure the assembly (extra top plates are available should future alteration be required). The welding required is very minor. The top plate clamps the main body which slides under it to enable camber to be adjusted. Once set to the correct camber it is good practice to make a couple of small tack welds so the top plate is fixed to the main body. This kit uses late TR4 to TR6 type top wishbones and Top ball joint, and the late TR4 three degree caster trunnion, on TR2-4 cars. Standard 3 degree trunnions are retained on TR4A-6. Full instructions are included.

TR2 to early TR4 owners will need to purchase some standard late TR4-6 components. The wishbones are set wider than normal, spacers being provided to be selectively placed either side of the Top ball joint to ensure the vertical link is under no tension. This kit uses the standard TR2-TR4 vertical link so you do not need to change the vertical link. TR4A-6 use the standard vertical links.

The standard TR4-6 components required for TR2-early TR4 are : -
2 x 133504SHPC Top wishbone, second-hand powder coated. 2 x 133507SHPC Top wishbone, second-hand powder coated, 2 x GSJ131 Top ball joint, 1 x 133838 Lower trunnion RH, 1 x 133839 Lower trunnion LH.

The clearance to the inner wing can be very tight once installed and may need the inner wing to be relieved a very small amount to get clearance to the end of the upper fulcrum pin end.. The best way to get the clearance, if required, is to drill a hole about 1.5" using a hole cutter. This does have the added benefit of being able to get at the nuts on the end of the upper fulcrum pin if required. The hole can then be fitted with a suitable grommet to blank the hole off whilst still giving sufficient clearance. For reference the new fulcrum is 48mm tall.
A similar kit is available intended only for TR2-4 RTR3112K and RTR3174K is available for TR4A-6 too. see below
