Late TR4. This Fast Road/Rally full suspension package incorporates Superpro Polyurethane suspension bushes and is supplied for fitment to Late TR4's with unequal length upper wishbones providing 3° of caster.

This package is suitable for Very Fast road cars, which also take part in rallies where comfort is slightly compromised for performance.

As later TR4's have 3° of caster already, this kit DOES NOT includes components to introduce 3° Caster.

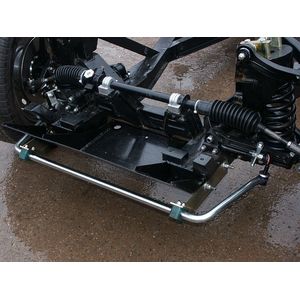

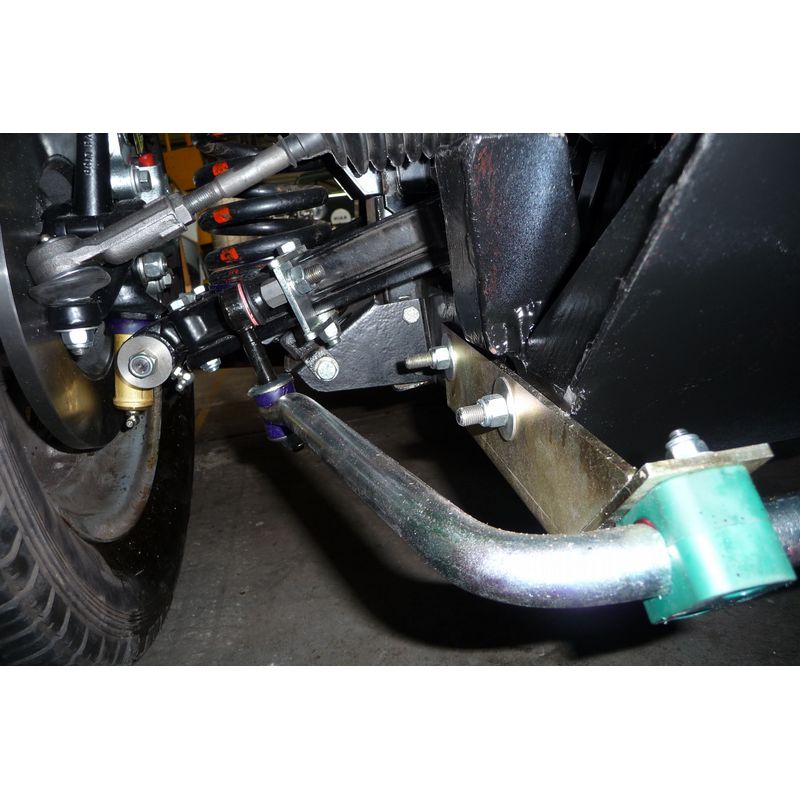

The kit is similar to the suspension package fitted to the works TR4 rally cars and includes; 450lb/in front springs, 185lb/in rear springs and a 1" front anti roll bar with conventional links. No rear anti-roll bar is fitted in keeping with FIA regulations.

SuperPro polyurethane bushes are supplied for the front wishbone. The 185lb/in springs at the rear are not uncomfortable and are exactly the same as those used on the works TR4 rally cars. with these stronger springs fitted, no rear ARB is needed. For a full list of contents and a fuller explanation of out kits take a look at our information sheet viewable at the 'Product Data Sheets' tab.

Revington TR's range of suspension packages should provide suitable suspension for any application. Below is a chart showing all the fast road/rally packages relevant to the TR4. This chart will help you choose which kit is best for you. Our range is split into early cars and later cars the difference being that early cars do NOT have 3° caster so for these cars we supply the appropriate top wishbone components to introduce this.



Customers should check carefully if they already have 3° caster upper wishbones. Take a look at the photo and note the shape of the arms and the style of the outer ball joint. If your top wishbone arrangement does NOT look like this, you do NOT have 3° caster front suspension and will need the suitable kit for the EARLY TR4. If your top wishbone arrangement DOES look like this, you DO have 3° caster front suspension and will need the suitable kit for the LATE TR4.

This Photo shows the upper wishbones fitted to our adjustable upper fulcrum which is also part of this kit.







Part Number Early TR4 with 0° Caster	Part Number  Late TR4 with 3° Caster	Short Description
RTR3631K	RTR3632K	Fast Road, 450lb/in front springs, 160lb/in rear springs 1" front ARB and 5/8" rear ARB
RTR3145PK	RTR3147PK	Fast Road/Rally, SuperPro polyurethane bushes, 450lb/in front springs, 185lb/in rear springs 1" front ARB with conventional links. NO rear ARB
RTR3145NK	RTR3147NK	Fast Road/Rally, Nylatron bushes, 450lb/in front springs, 185lb/in rear springs 1" front ARB with conventional links. NO rear ARB
RTR3146K	RTR3148K	Fast Road/Rally, Nylatron bushes, 450lb/in front springs, 185lb/in rear springs 1" front ARB with spherical bearing links. NO rear ARB

These can be seen in 'Related Products' below.

This part is listed on the following pages of the website, where further information and background reading may be found.

Suspension and steering » TR4 &4A Live Axle INTEGRATED SUSPENSION PACKAGES
Information Sheets » IS0013 - Integrated Suspension Packs TR2-6
