SPRING REAR 600 lb/in LIGHTBLUE/WHITE each

Home » Suspension and steering » ROAD SPRINGS » COIL SPRINGS » SPRING REAR 600 lb/in LIGHTBLUE/WHITE each

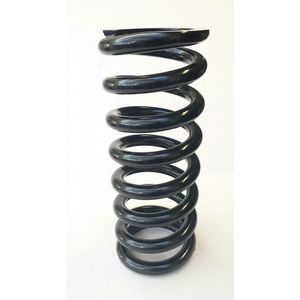

SPRING REAR 600 lb/in LIGHTBLUE/WHITE each

Part No:

RTR3666

NOT AVAILABLE This part is no longer available

1 image

600lb/in, 257mm (10.12") free length TR4A-6 Rear V fast road/ rally/ mild race. Matches RTR3665 to give Targa setup. Coded with one white, one blue stripe.

spec :
Rate 600 lb/in
free length 257mm
fitted length 238mm
wire dia.15mm with paint
no. of coils 8.5

Suspension and steering

5 plates in total

FRONT SUSPENSION Front Suspension Unit, Upper Fulcrum Pin - Innter, Upper Wishbone Arm Assembly - Front/Rear, Vertical Link, Stub Axle, Bottom Trunnion Assembly, Lower Wishbone Arm Assembly, Lower Spring Pan Assembly, Front Road Spring, Front Sock Absorber

PLATE AC - FRONT SUSPENSION Front Suspension Unit, Upper Fulcrum Pin - Innter, Upper Wishbone Arm Assembly - Front/Rear, Vertical Link, Stub Axle, Bottom Trunnion Assembly, Lower Wishbone Arm Assembly, Lower Spring Pan Assembly, Front Road Spring, Front Sock Absorber

PLATE AD - ANTI-ROLL BAR

STEERING Steering Wheel and Pad Assembly, Steering Wheel, Steering Column Assembly - Upper Outer & Upper Inner, Steering Column Lower, Flexible Coupling, Universal Joint, Rack and Pinion Steering Assembly, Inner Ball Joint Assembly, Tie Rod End Ball Joint Assembly, Mounting Rubber

PLATE AH - STEERING Steering Wheel and Pad Assembly, Steering Wheel, Steering Column Assembly - Upper Outer & Upper Inner, Steering Column Lower, Flexible Coupling, Universal Joint, Rack and Pinion Steering Assembly, Inner Ball Joint Assembly, Tie Rod End Ball Joint Assembly, Mounting Rubber

PLATE BQ - BODY AND FITTINGS: Steering Outer Column Steering Column Cowl Assembly, Steering Column Support Details

PLATE AF - INDEPENDENT REAR SUSPENSION Trailing Arm Assembly, Rear Road Springs, Rear Damper

Part No.	Description and Comments	Price	Add to Cart
RTR3665 CLICK FOR MORE INFO	FRONT SPRING 540 lb/in LIGHTBLUE/LIGHT BLUE each Revington TR information: 540lb/in, 224mm (8.82") free length. TR4A-6 front V fast road/ rally/ mild race. Matches RTR3666 to give Targa setup. Coded with 2 blue stripes spec : Rate 540 lb/in ... READ MORE	£100.13 Ex VAT @ 20% £83.44	Available to order
SPF2327K CLICK FOR MORE INFO	REAR SPRING INSULATOR x2 TR4AIRS-TR6 Revington TR information: TR4AIRS-6 rear spring insulator. Superpro Polyurethane version of 138823. 2 kits per car required. Each kit contains two insulators. Consider SPF2327-5K where extra lift is required	£33.19 Ex VAT @ 20% £27.66
RTR3667PK CLICK FOR MORE INFO	SUSPENSION PACKAGE TR4AIRS-6 TARGA Revington TR information: TR4A-6 Very Fast Road/Rally/Race suspension packed to our 'Targa' setup where original rear dampers need to be retained (we do supply the kit with telescopic rear dampers too if required). SuperPro bushes are used front and... READ MORE	£3323.90 Ex VAT @ 20% £2769.92	Available to order

RTR3665

CLICK FOR
MORE INFO

FRONT SPRING 540 lb/in LIGHTBLUE/LIGHT BLUE each

Revington TR information: 540lb/in, 224mm (8.82") free length. TR4A-6 front V fast road/ rally/ mild race. Matches RTR3666 to give Targa setup. Coded with 2 blue stripes spec : Rate 540 lb/in ... READ MORE

£100.13

Ex VAT @ 20%
£83.44

SPF2327K

CLICK FOR
MORE INFO

REAR SPRING INSULATOR x2 TR4AIRS-TR6

Revington TR information: TR4AIRS-6 rear spring insulator. Superpro Polyurethane version of 138823. 2 kits per car required. Each kit contains two insulators. Consider SPF2327-5K where extra lift is required

£33.19

Ex VAT @ 20%
£27.66

RTR3667PK

CLICK FOR
MORE INFO

SUSPENSION PACKAGE TR4AIRS-6 TARGA

Revington TR information: TR4A-6 Very Fast Road/Rally/Race suspension packed to our 'Targa' setup where original rear dampers need to be retained (we do supply the kit with telescopic rear dampers too if required). SuperPro bushes are used front and... READ MORE

£3323.90

Ex VAT @ 20%
£2769.92
