TRIUMPH PLATES - Browse Original Triumph Catalogue Plates
HOSE TEFLON LINED SS BRIADED.
AVAILABLE This part is available to order

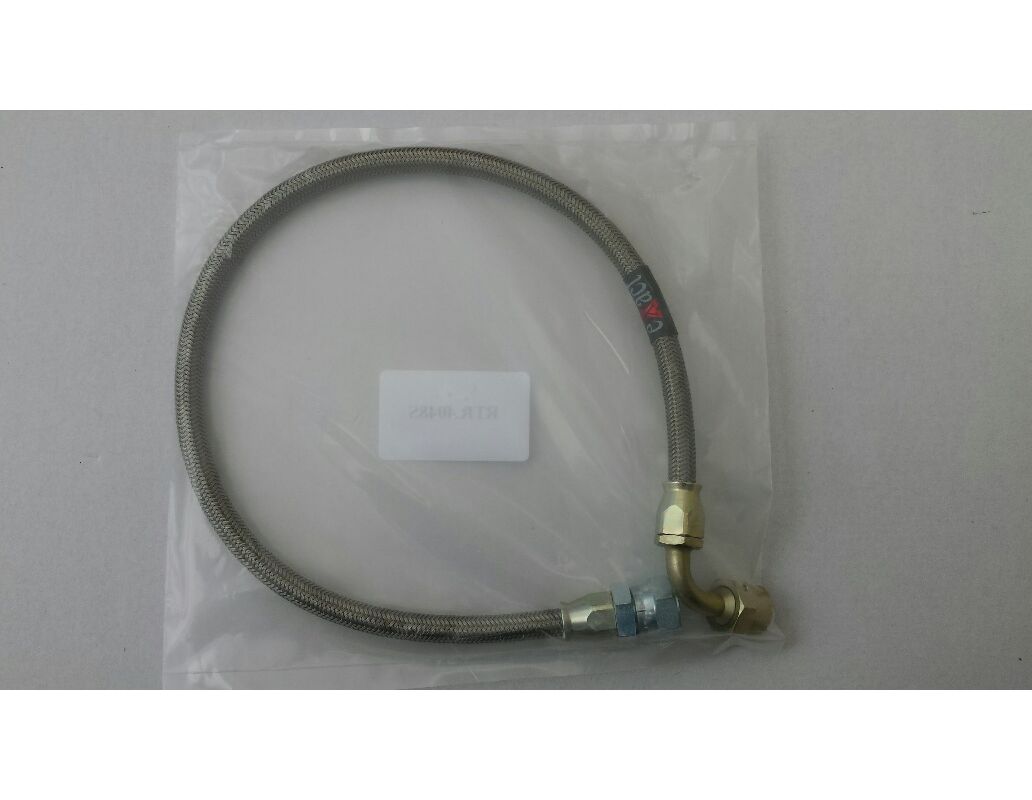

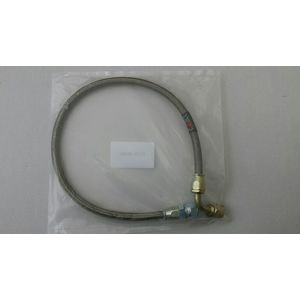

Teflon lined, stainless steel braided high pressure Hose 648mm (25") long with a straight union at one end and a 90 degree union at the other; suitable for use with RevingtonTR axial flow (Bosch type) Pump Kit.
Use this Teflon lined, stainless steel braided hose to replace 215642, Hose Pump to Pressure Relief Valve (PRV), when the new style PRV is installed as mentioned below.An even longer hose will be required if your PRV is still mounted on the chassis, (TR5 & earlyTR6); order 215585 or 215585SS, see below.
NOTE 1: We have found that braided stainless steel hose cannot be used in this position whilst the original PRV is still used due to the hard nature of the outer sheath, causing even more resonance than might have been evident with a rubber hose.
NOTE 2: Resonance is when the PRV fluctuates at a resonant frequency with the pulses generated by the fuel pump and an unpleasant droning noise is produced. This phenomenon is unlikely to occur with the original Lucas pump but is very likely when an axial flow pump is fitted. A longer soft hose RTR4048 when fitted from the pump to the original PRV usually cures this (a stainless Steel braded hose will make it worse) but brings with it another bit of bad news. As modern fuels are much more volatile than older fuels they can permeate through rubber hose and create an unpleasant smell in the boot. If this is unacceptable there is a definitive solution to all this. We have a modern PRV kit available RTR4456K which works on a different principle to the original type and does not resonate. The good news is that with this new PRV kit installed, a Teflon lined Stainless Steel braided hose, 215642SS or RTR4048-1 can be used from the pump to the PRV which will greatly reduce petrol smells in the boot with no fear of resonance.
Fuel and braking systems
26 plates in total
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
215642SS |
HOSE PUMP TO PRV SS TR6PIRevington TR information: Hose Braided Stainless Steel from petrol pump to Pressure Relief Valve (PRV) TR6 where the PRV is at the left hand side of the petrol tank (many TR5's will have been converted to this arrangement). This... READ MORE |
£108.91 Ex VAT @ 20% |
|
 |
RTR4456K
|
FUEL PRESSURE REGULATORRevington TR information: This Pressure Relief Valve (PRV) kit replaces the original PRV found in TR5's and TR6's and as it is of a modern diaphragm design, cures many problems inherent in the Lucas Mechanical Fuel Injection system. Key... READ MORE |
£205.37 Ex VAT @ 20% |
|
 |
RTR7259
|
SHIELD PUMP FUEL TR5-6PI OUTSIDERevington TR information: TR5 and 6PI under wing petrol pump shield. This aluminium shield is designed to protect a Bosch pump kit from mud and water thrown up by the rear wheel, when the pump is mounted outside under... READ MORE |
£99.55 Ex VAT @ 20% |
|
 |
RTR4050XK
|
Axial PUMP KIT PI cars, for fitment outside, with tap.Revington TR information: This High pressure Fuel Pump kit for TR5-6 Petrol Injection cars includes a motorsport grade axial pump, pre-filter and pressurised filter. Developed by RevingtonTR, externally mounted, this kit replaces the Lucas fuel pump and filter system... READ MORE |
£828.77 Ex VAT @ 20% |
|
 |
RTR4050K
|
Axial PUMP KIT, PI. Fitment in spare wheel well, with tapRevington TR information: Revington TR developed this high pressure pump kit based on a Bosch style axial flow pump and pressurised filter in the late 1980's. An on/off tap connected between the petrol tank and the first feed hose,... READ MORE |
||
 |
215585 |
FUEL SUPPLY PIPERevington TR information: Consider using 215585SS Stainless Steel braided hose, which is much harder wearing than the original rubber hose NOTE: We have found that stainless braided hose cannot be used in this position when a Bosch... READ MORE |
£43.13 Ex VAT @ 20% |
|
|
215585SS |
HOSE PRV FEED SSRevington TR information: Stainless Steel braded version of the standard TR5 hose. Beware of resonance if this hose is fitted with Bosch pump kits. see 'MORE' for details This hose will cause resonance if used in conjunction with a... READ MORE |
||
|
RTR4048
|
HOSE RUBBER PUMP - PRV 648mm (25")Revington TR information: High pressure Rubber Hose 648mm (25") long with a straight union at one end and a 90 degree union at the other; suitable for use with RTR axial flow (Bosch style) Pump Kits. N.B. See note... READ MORE |
£56.64 Ex VAT @ 20% |
|
 |
RTR4015
|
UNION PI FILTER OUTRevington TR information: Connector Male/Male 3/8"BSP x M12x1.25mm in steel Union - Bosch filter to PRV hose. This is not a standard TR fitting but if your set up has a 12mm outlet it will let you join up... READ MORE |
£8.95 Ex VAT @ 20% |
