DRUM ALFIN TYPE TR2-6 PER PAIR 9"

RTR Upgrade
Part No:
RTR4108
Price
£460.31
Price Ex VAT @ 20%
£383.59

AVAILABLE This part is available to order

Main
Main
2 images

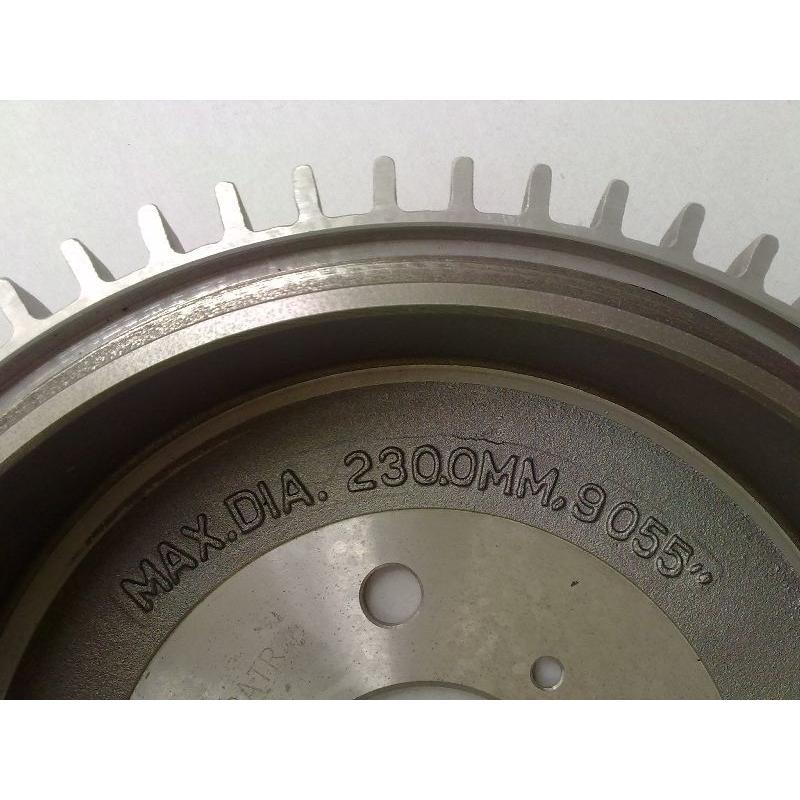

TR3-6 Alfin type brake drums. 9" X 1- 3/4"; Dissimilar to the original design, in that the cooling fins are transverse rather than the original radial fins. Cost is per pair.

Please note that these drums are specifically intended for TR4AIRS to TR6. The stud holes will need opening out to 14.5mm for TR2/3/4. Whilst we are not aware of any tests, the transverse fin design on the periphery of this drum suggests from an engineering point of view that the cooling would be superior to the original design with radial fins.
See 202267 below if you require the (much more expensive) original type.
