BRACKET Brake union RH chassis leg TR3-4

Part No:

RTR4326

Price

£13.18

Price Ex VAT @ 20%

£10.98

IN STOCK This part is immediately available

1 image

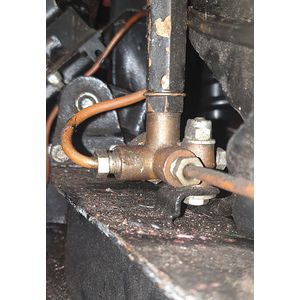

TR3-3B Bracket, welded to the RH chassis rail to support the 4 way brake union. This bracket can be welding to a Lockheed type chassis when changing to disc brakes. Enables later type brake fluid distribution union to be fitted.

Two bracket RTR4325 will be required too, to support the front brake hoses.

These two parts RTR4325 and RTR4326 are essential when fitting 4 pot calliper conversion kits in the series RTR4508

Fuel and braking systems

To view the Triumph Catalogue Plates, please pick a car type

Related Products

Part No.	Description and Comments	Price	Add to Cart
RTR4325 CLICK FOR MORE INFO	BRACKET BRAKE HOSE GIRLING TR3-3B Revington TR information: TR3-3B Bracket To support front brake hose. Welded too the bump stop. This bracket can be welding to a Lockheed type chassis when changing to disc brakes. Enables later type hoses to be fitted. two... READ MORE	£12.01 Ex VAT @ 20% £10.01
RTR4508XDSLK CLICK FOR MORE INFO	BILLET 4 POT KIT DRUM TR2-3 X + SLOTTED DISCS Revington TR information: TR2-3L Conversion kit, front drums to discs. A complete kit incorporating aluminium HiSpec billet 4 pot callipers and cross drilled and slotted 280mm diameter discs plus all fittings required to convert drums to discs. This huge... READ MORE	£2316.92 Ex VAT @ 20% £1930.77	Available to order
RTR4508PK CLICK FOR MORE INFO	BILLET 4 POT KIT DRUM TR2-3 PLAIN DISCS Revington TR information: TR2-3L Conversion kit, front drums to discs. A complete kit incorporating aluminium HiSpec billet 4 pot callipers and plain 280mm diameter discs plus all fittings required to convert drums to discs. This huge kit incorporates everything... READ MORE	£2223.82 Ex VAT @ 20% £1853.18	Available to order
RTR4508SLK CLICK FOR MORE INFO	BILLET 4 POT KIT DRUM TR2-3 SLOTTED DISCS Revington TR information: TR2-3L Conversion kit, front drums to discs. A complete kit incorporating aluminium HiSpec billet 4 pot callipers and slotted 280mm diameter discs plus all fittings required to convert drums to discs. including: Hubs, hub bearings,... READ MORE	£2270.36 Ex VAT @ 20% £1891.97	Available to order

Car Type	Plate	Plate Title	Plate No.	Triumph Part Description	No per Unit
TR2	M	CHASSIS FRAME.	M39	Bracket brake pipe union on right chassis leg TR3 from TS13046 onwards For Girling disc brakes only	1
TR3	M	CHASSIS FRAME.	M39	Bracket brake pipe union on right chassis leg TR3 from TS13046 onwards For Girling disc brakes only	1
TR4	N	CHASSIS FRAME AND RADIATOR SKID SHIELD.	N55	Bracket brake pipe union on right chassis leg	1
