TRIUMPH PLATES - Browse Original Triumph Catalogue Plates
VENTED 4 POT KIT TR3-4E BILLET 4 CALIPERS
AVAILABLE This part is available to order

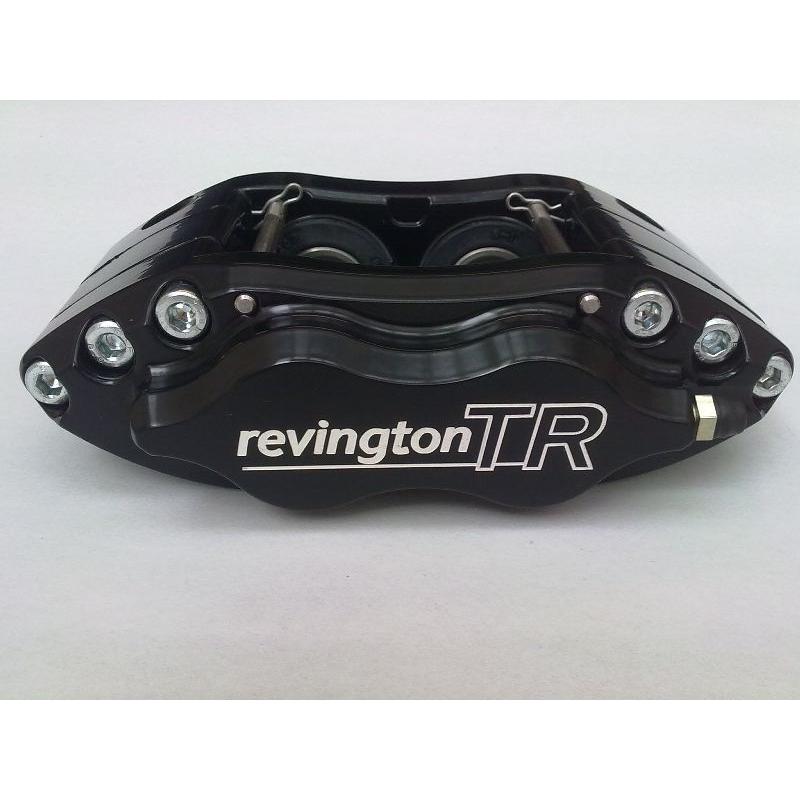

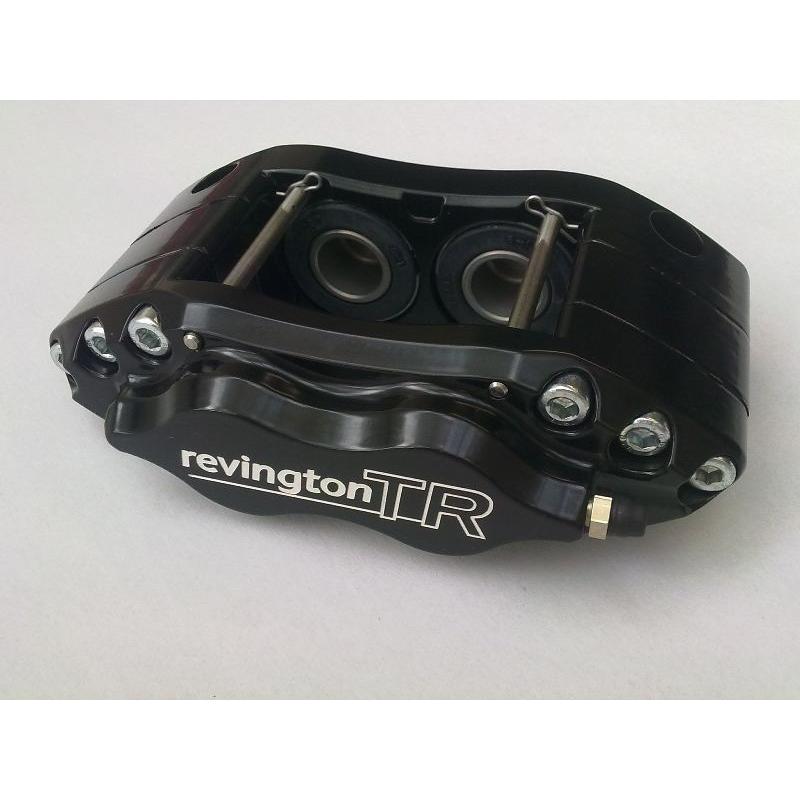

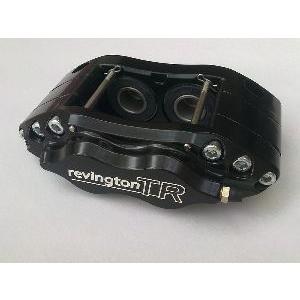

TR3 and early TR4 Aluminium Hi-Spec 4 pot caliper kit supplied with 284mm diameter vented and grooved discs 22mm thick. The discs are not handed. Adaptor brackets, pads, hoses, hardware and comprehensive instructions are included. This kit can be fitted to drum brake cars where either TR3 or TR6 caliper carriers and hubs are in use.
Replacement pad sets for this caliper are available in the range RTR4494-__ where the last two digits denote the pad material.
TR4Late, 250, 5 and 6 owners (cars with 275mm [10-13/16"] discs and later calipers) should ask for kit RTR4458K. This is the same kit as RTR4458-1K but with different adaptor brackets and hoses to suit the later configuration. See below
Consider upgrading your hub to our lightweight aluminium version, which is just as strong if not stronger than the original but dramatically reduces the suspensions' unsprung weight allowing the suspension to react more quickly thus improving the cars stability. See below for details
This kit can be fitted to drum brake cars where either TR3 or TR6 caliper carriers and hubs are in use. In addition Revington TR will be happy to build these kits into kit RTR3299K instead of steel calipers.
Fuel and braking systems
To view the Triumph Catalogue Plates, please pick a car type
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
RTR4494-09
|
BRAKE PAD SET MINTEX M1109 BILLET 4 DP2143Revington TR information: TR2-8 Mintex 1109 for RTR 4 pot billet 4 range This is an excellent road pad but alternatives do exist for brakes that are worked harder. |
£48.72 Ex VAT @ 20% |
|
 |
114284AL |
HUB FRONT TR3-6 ALUMINIUM eachRevington TR information: TR3-6 aluminium front hub. These hubs are much lighter than steel hubs, but just as strong if not stronger and weight just 1.074Kg. Consider wheel bearing strengthening spacer kit RTR3463K What cars does it fit? TR2-6 (TR2-3... READ MORE |
£304.72 Ex VAT @ 20% |
|
|
RTR4494X09
|
PAD SET Hi Spec with TR6 DISC & CARRIER ONLYRevington TR information: TR4A-6 Mintex 1109 for RTR 4 pot billet 4 range where smaller TR4A-6 discs are used |
£68.60 Ex VAT @ 20% |
|
|
RTR4494-66
|
PAD SET M1166 MINTEX BILLET 4 DP143Revington TR information: TR2-8 Mintex 1166 for RTR 4 pot billet 4 range This pad is a high metallic content pad for full race use. |
£457.03 Ex VAT @ 20% |
|
|
RTR4494-55
|
PAD SET MINTEX 1155 BILLET 4 DP143Revington TR information: TR2-8 Mintex 1155 for RTR 4 pot billet 4 range This pad is suitable for stage rally/hillclimb/mild race. |
£262.32 Ex VAT @ 20% |
|
|
RTR4494-44
|
PAD SET MINTEX M1144 BILLET 4 DP143Revington TR information: TR2-8 Mintex 1144 for RTR 4 pot billet 4 range This pad is suitable for fast road/rally. |
£124.19 Ex VAT @ 20% |
|
|
RTR4458K
|
VENTED 4 POT KIT TR4L-6 BILLET 4 CALIPERSRevington TR information: TR4Late, 250, 5 and 6 Aluminium Hi-Spec 4 pot caliper kit supplied with 284mm diameter vented, grooved discs 22mm thick. Adaptor brackets, pads, hoses, hardware and comprehensive instructions are included. This kit can be fitted to... READ MORE |
£1594.97 Ex VAT @ 20% |
