RevingtonTR classic bucket style seat trimmed in Black Leather with either black or white piping to customer choice, Designed by RevingtonTR, this seat provides comfort and security whilst being as wide as possible given the cabin size of a TR. The seat does not come with a headrest, if required please order RTR6114L headrest separately.

Please note that whilst the headrests are removable, simply by being pulled out (useful for fitting a tonneau cover), they are also height adjustable; they can be raised and lowered then are held in place by a clip on one leg or can rest on the top of the seat back.



This RevingtonTR Classic Style Bucket Seats is manufactured to our own design, identified by our RevingtonTR logo on the back rest, this being a very professional looking embroidering. Please let us know at the time of ordering if you would prefer to receive you seats without the RevingtonTR Logo.

These seats are suitable for TR2-8 and any other similar sized car you choose to put them in. As a guide, our seats have been successfully fitted to Mini, Spitfire, Vitesse and Austin Healey as well as many others. Please see the dimensions below and in the accompanying photographs for guidance.

Our seats are available in a wide range of colours in vinyl and leather (please see part numbers below). Our seats are built on our own design of frame, powder coated for long-term protection and incorporating multi point mounting plates offering a range of installation options.



If you require headrests please order these separately, RTR6114, RTR6114SP. RTR6114L or RTR6114LSP are listed below with other accessories. Slots in the side and in the cushion for a harness and crutch strap are not provided on the standard seat. These are costed separably under part number RTR6115 as not all customers require these.



Here at RevingtonTR we are continuously improving the product range we offer and our seats are no exception to this. Whilst we have been using improved frames and adjustable height headrests for some time, our seats are now trimmed using an improved seat cushion system that brings greater comfort to an already very comfortable seat. In addition we can now incorporate heater mats and a pump up lumber support feature. The part numbers for these additional costs are shown below.



Our standard production seats are trimmed to a high commercial standard by production methods, which will result in some very minor creasing of the material where it is required to hug tight curves. This creasing usually flattens out with use and warming and cooling in the sunshine.
RevingtonTR can arrange for seats and headrests to be trimmed to our usual high standard as part of a full car re-trim service, thus ensuring the seats match the interior perfectly.

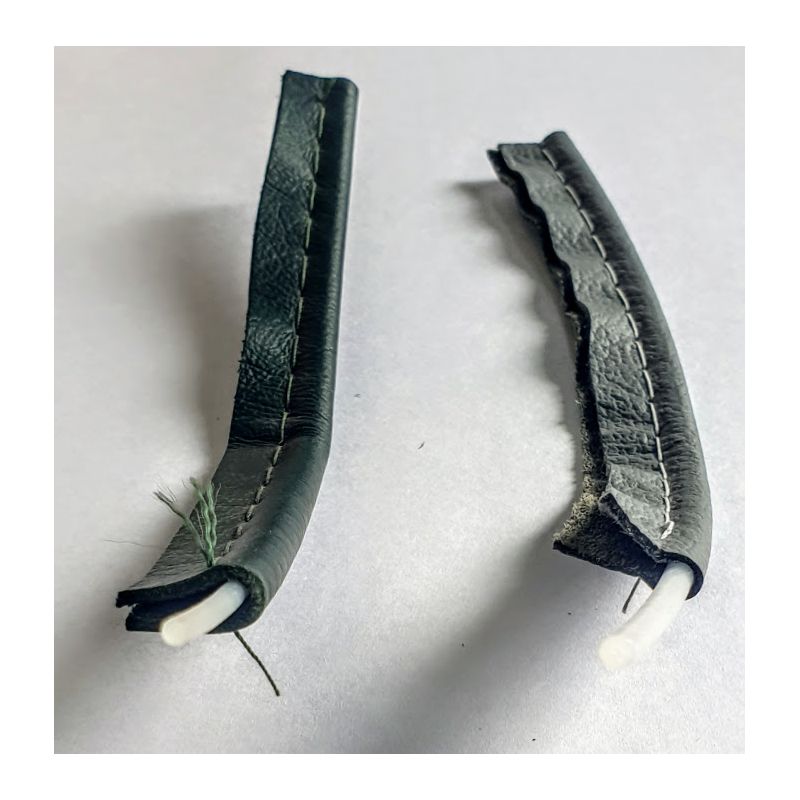

This part number is for a Black Leather seat with either black or white vinyl piping (please state which when ordering). Black  Leather piping can also be supplied at extra cost. The reason for the extra cost is explained under part number RTR6125LP. Other colours and finishes in Leather are supplied under part number RTR6125LSP. Vinyl seats are sold under part numbers RTR6125 and RTR6125SP. Whilst black or white vinyl piping is included in the cost of this seat, if piping of another colour vinyl is requested, this will need to be made up specially and at extra cost covered by part number RTR6125P. If leather piping is requires in a colour other than that of the seat, this will need to be quoted for separately as additional leather in another colour will need to purchased.



Seat Dimensions: -

The following dimensions will enable you to ensure our seats are suitable for your application.

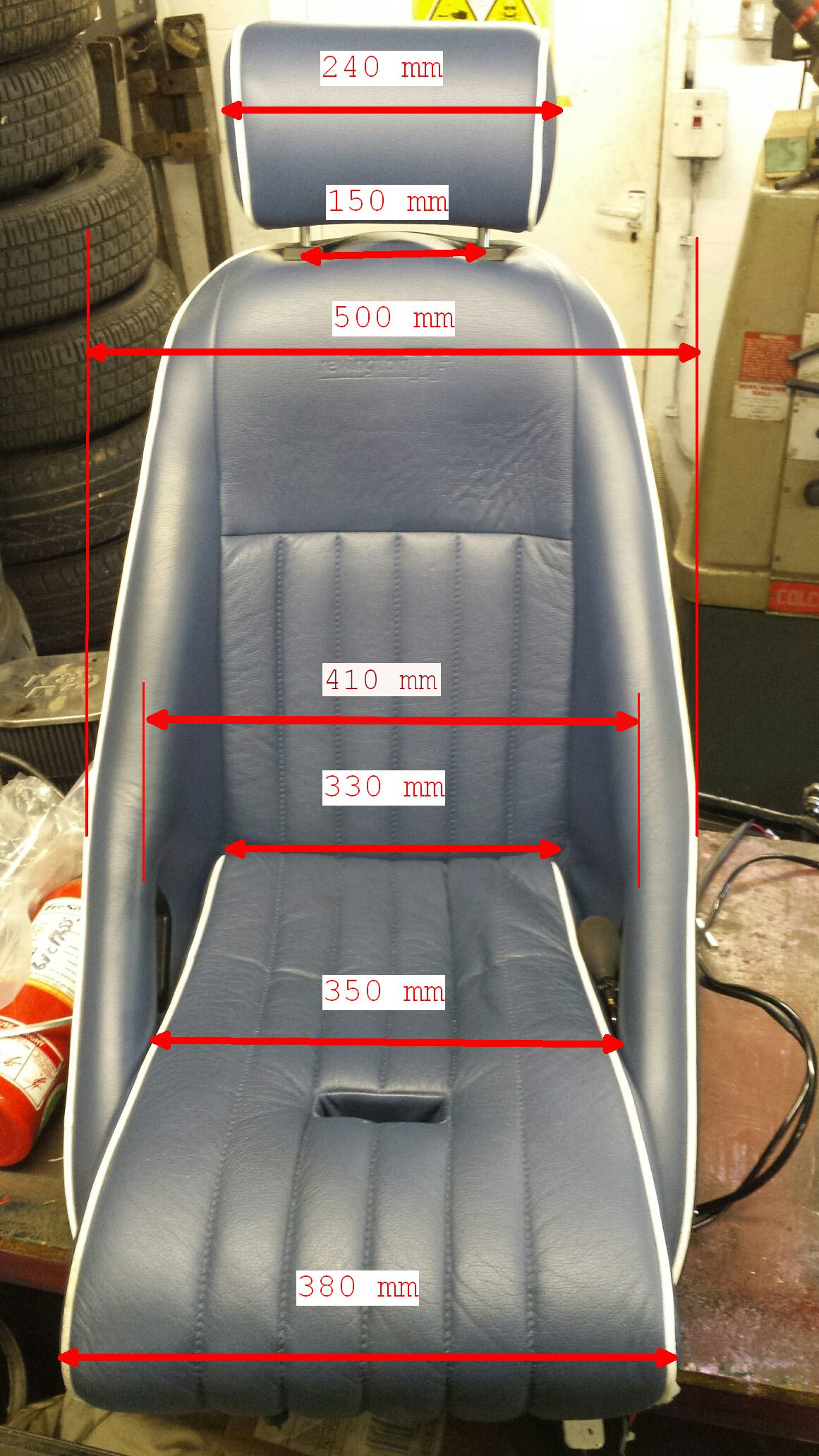

Width at the base of the seat cushion at the very back 350mm. Width between the hip side tubes 410mm inside, 500mm outside. The inside dimension of 410mm is the dimension important to most customers as this is the dimension that determines if you will fit in or not! This dimension can be increased by frame alteration in exceptional circumstances. we will be happy to discuss this with you. Height of the backrest 590mm. Length from front to back 460mm.

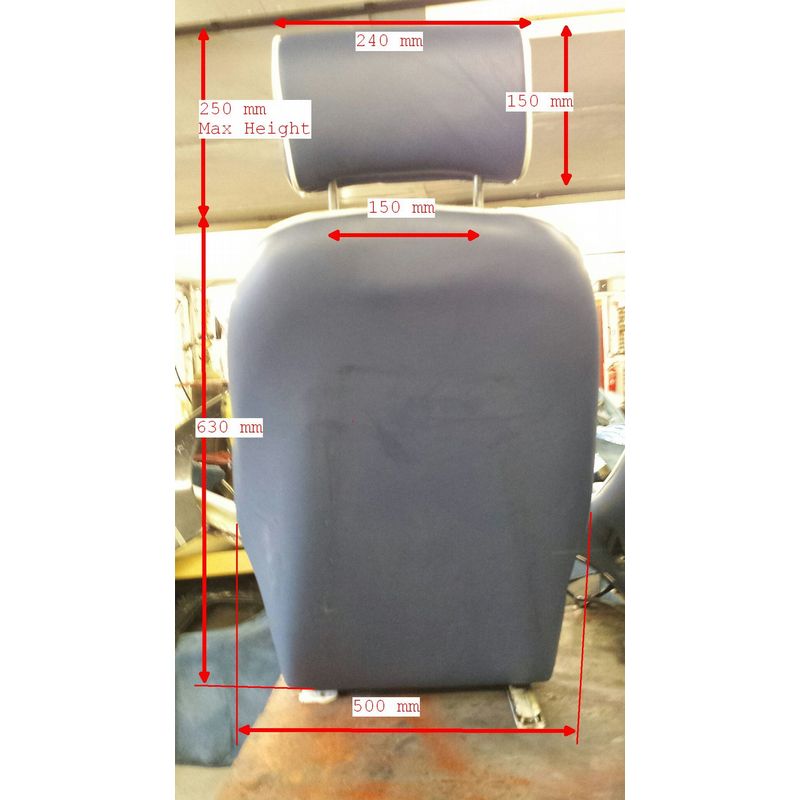

Further dimensioned photos of the side and the rear of the seat can be found  in the photo gallery.



Tip

If you are a person with a large frame and are concerned that the side flanks of our seat may be intrusive and uncomfortable, follow the simple procedure here to establish what will be a comfortable width for you and compare this with the dimensions listed here and in the photographs. If necessary the seat frame can be modified at additional cost by RevingtonTR before trimming.
