Vent and Duct kit TRS and Zoom style. Fits TR4-6

RTR Upgrade
Kit No:
RTR7019-1K

NOT AVAILABLE This part is no longer available

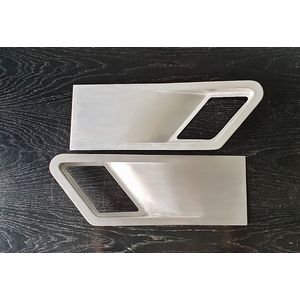

Gill, pair

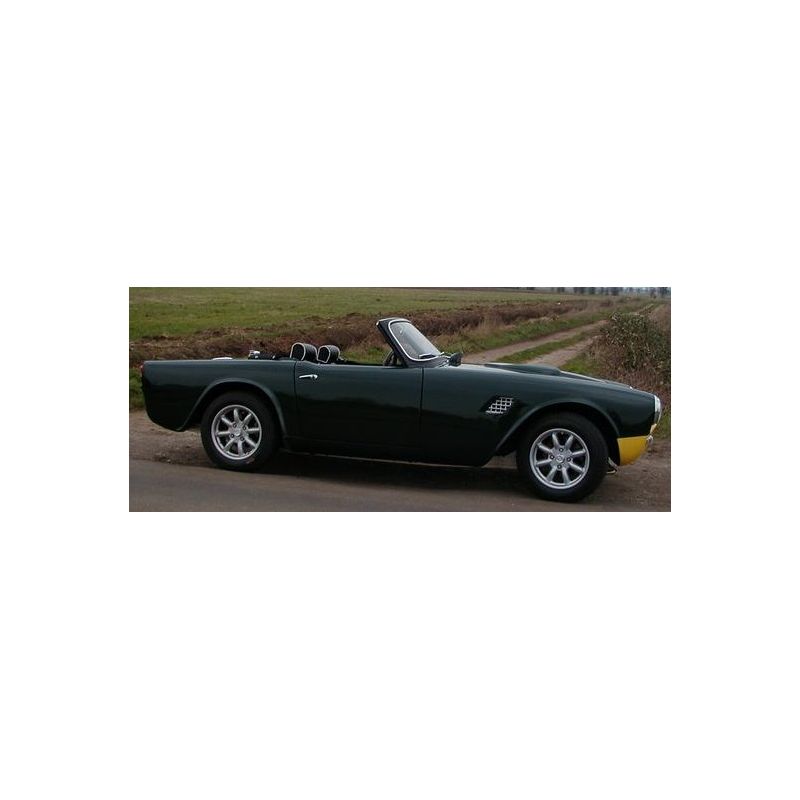

Set of vents and ducts with suitable grills to the style of that used on the Zoom prototype and TRS leMans race cars. These vents are an alternative to the rally TR4 style, performing the same job of removing unwanted hot air from the engine bay.

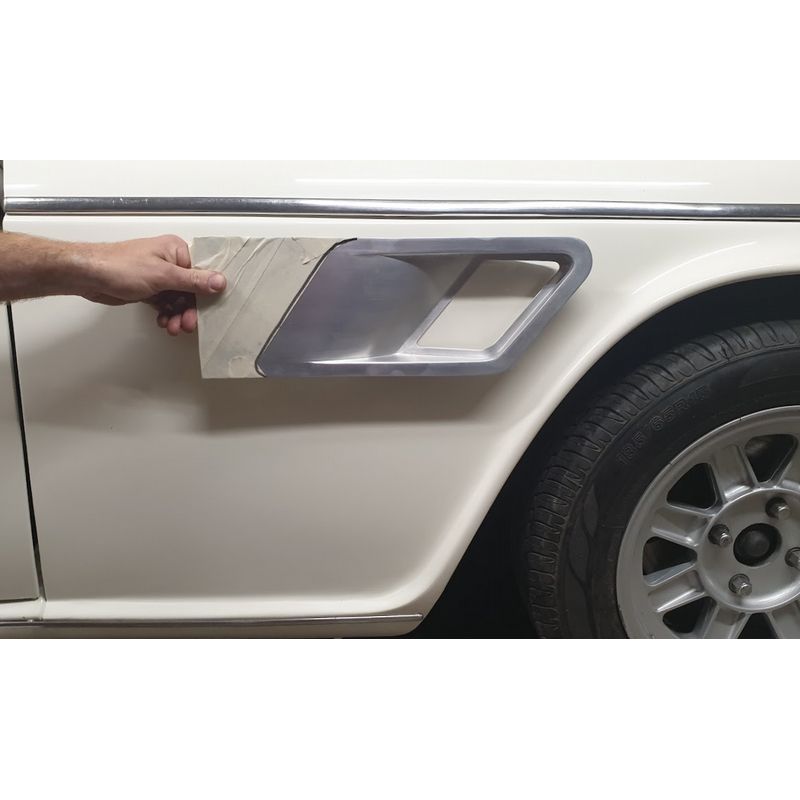

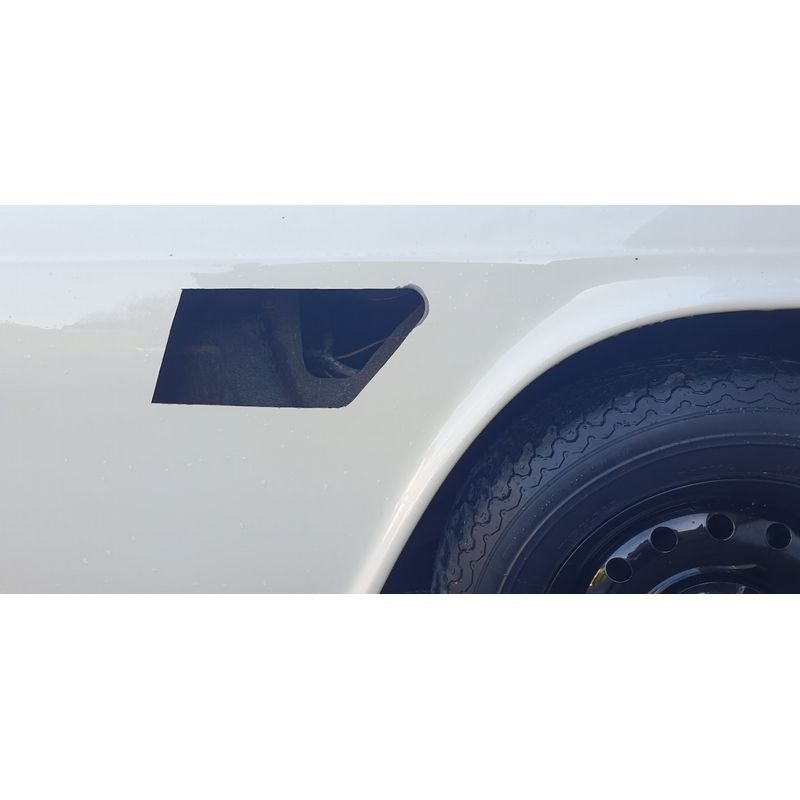

These vents or 'gills' are manufactured in steel and are usually welded to the wing. We can however also manufacture them from aluminum for riveting or gluing to the outer wing, or welding if your wings are aluminium. The inner wing is cut away where the pressing is (between the wheelarch and the bulkhead). The duct is positioned here between the inner wing and the vent on the outer wing thus providing a passage for hot air from the engine bay to atmosphere.

The kit includes all parts needed to complete the conversion. Please see the full list of parts under the 'Kit Contents' tab above.

As Neil Revington owns the only known Zoom prototype with RevingtonTR being responsible for the leMans TRS replicas and having had the privilege of working on a Genuine TRS, we are the only company in the world who can truly say the shape and positioning of these ducts we advise in our fitting instructions, is the same as the Zoom prototype. The patterns used are from Zoom prototype YKV260 front wings, removed temporarily during restoration and had clearly been there since the Vignale built the car.
