DUCT AND GRILL KIT TR4-6 FRONT WINGS

RTR Upgrade
Kit No:
RTR7019K
Price
£675.95
Price Ex VAT @ 20%
£563.29

AVAILABLE This part is available to order

Main
Main
6 images

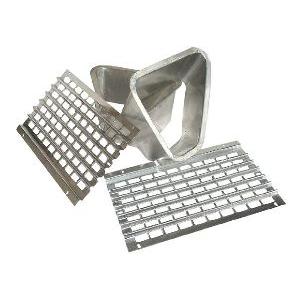

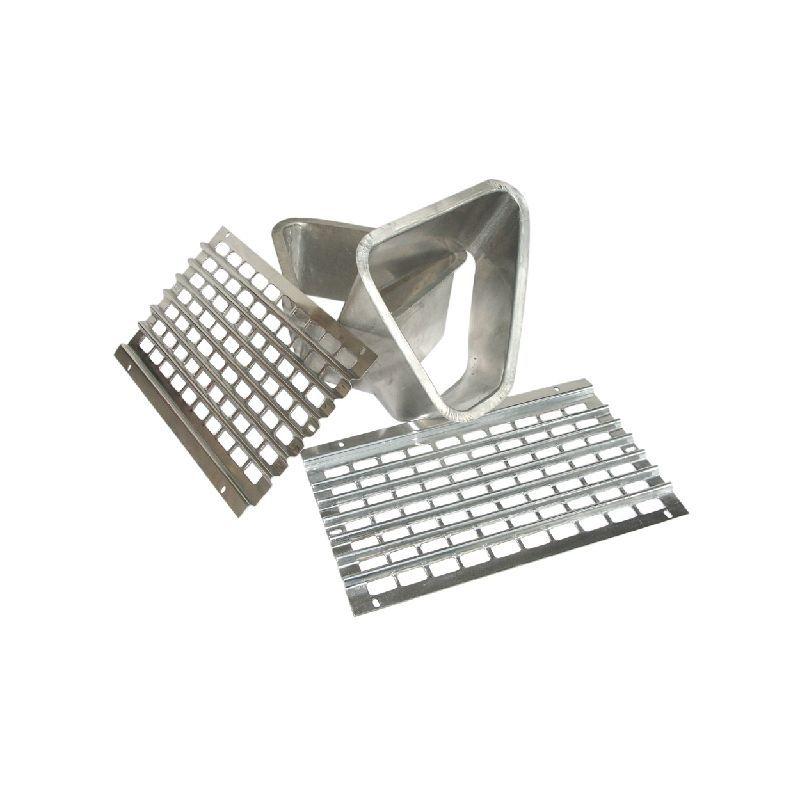

Pair of front wing vent ducts, aluminium as used on works cars TR4 rally cars. This kit includes the grills, fittings and instructions to ensure fitting is executed exactly as the works TR4's. Suitable for TR4-6

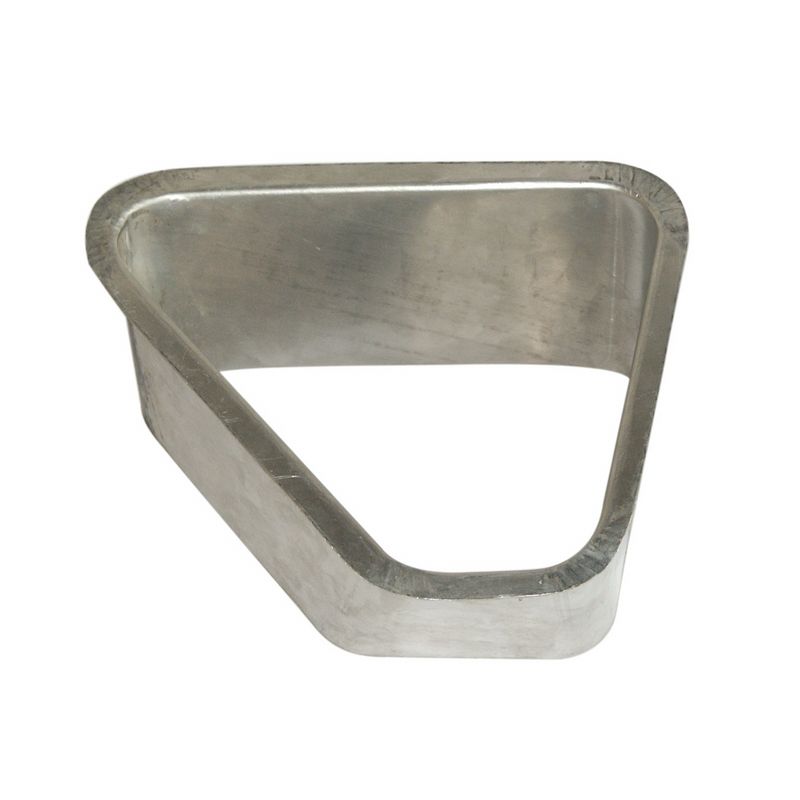

The shape of the duct matches the shape on the pressing of the inner wing on a TR4/5/6. By cutting out the pressing you cut out the correct shape.

Note: We realise these ducts appear to be expensive and we are continuously looking for new ways to manufacture them. However as the numbers required world-wide are relatively small they are currently hand made and as the shape is complex the cost reflects the time it takes to make them.

As RevingtonTR have rebuilt all 3 ex-works TR4 rally cars, 3CV, 4VC and 6VC we are the only company in the world who can truly say the shape and positioning of these ducts we advise in our fitting instructions, is the same as the works cars. The pattern used is from 6VC and had clearly been there since the factory had built the car.

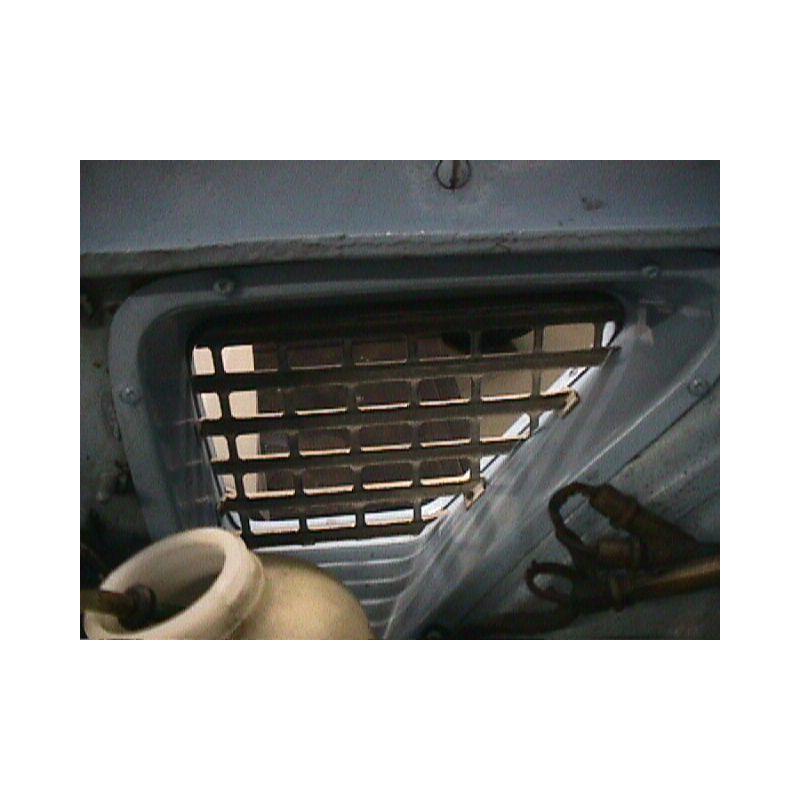

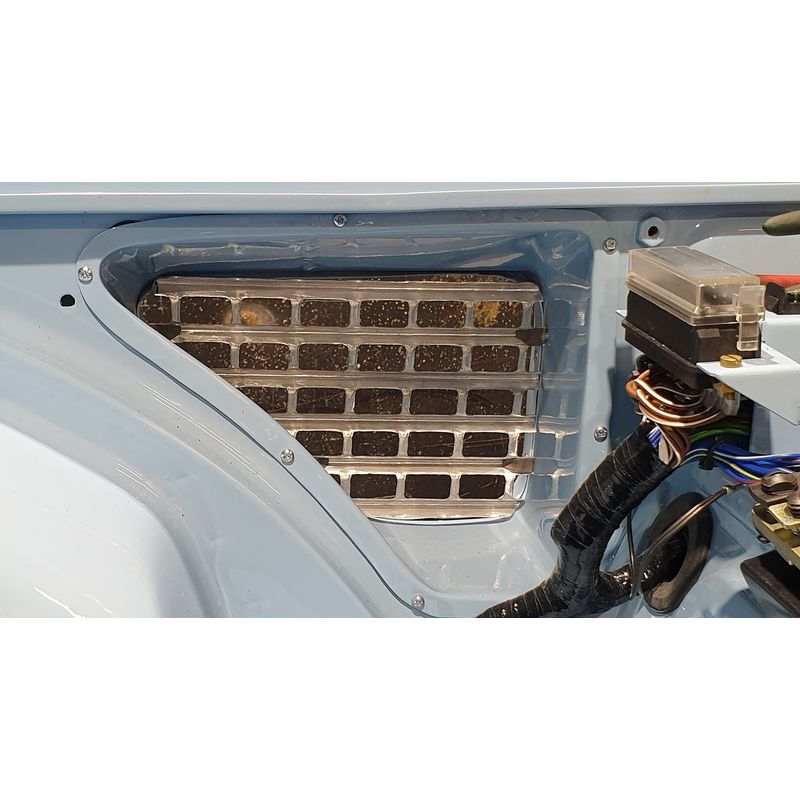

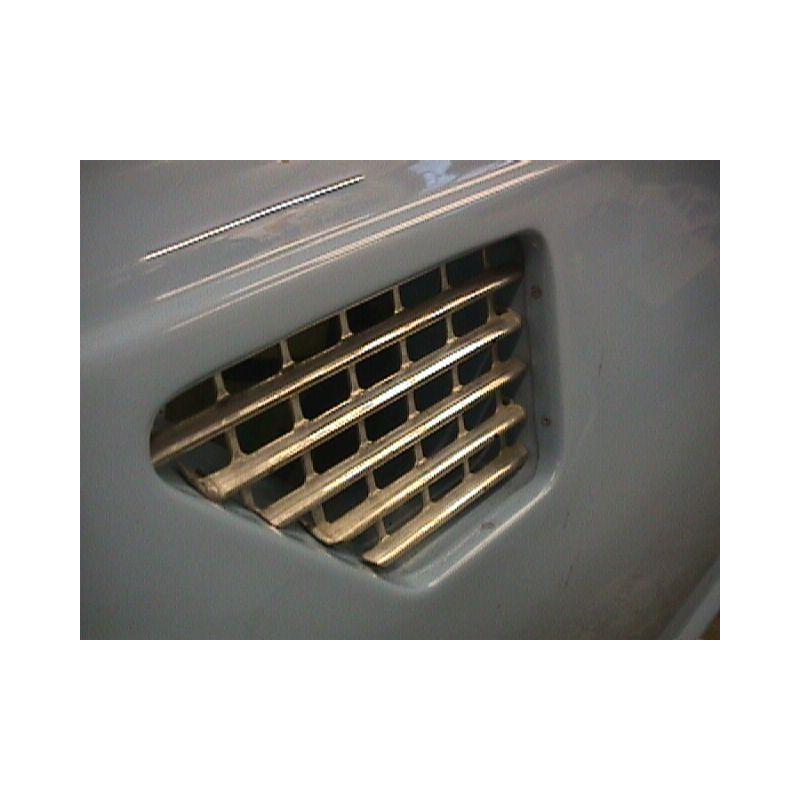

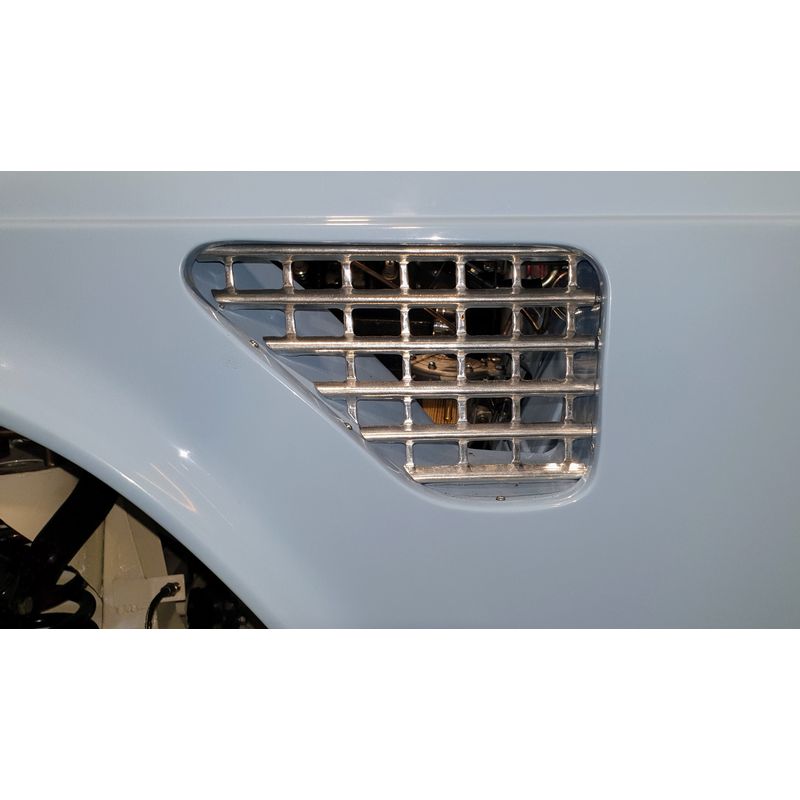

The duct is positioned between the inner wing and the vent on the outer wing thus providing a passage for hot air from the engine bay to atmosphere.

Please see the 'Kit Contents' tab for complete kit contents

An alternative kit, RTR7019-1K as used on the prototype Zoom and the leMans TRS, is available too. See below
