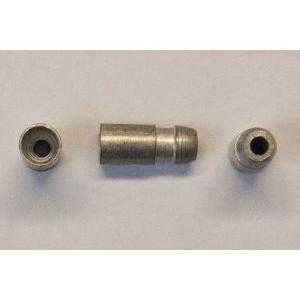

BULLET CRIMP 28/030 for PVC/CL COVERED WIRE
IN STOCK This part is immediately available
Bullet terminal tinned brass; intended for both PVC and braided cloth insulated wire.
There are 7 other types of bullet terminal available. The correct terminal should be selected according to the conductor (wire) size to be used the insulation type (PVC or braided cloth) and the intended application. A complete list follows: -
The following 6 terminals are designed to be crimped onto the wire but can be solders too if desired.
RTR8097 1.16mm diameter conductor hole for 14/.025mm or 9/.03mm (0.65 mm²) wire. PVC insulation
RTR8097-1 1.16mm diameter conductor hole for 14/.025mm or 9/.03mm (0.65 mm²) wire. Braided cloth insulation
RTR8034 1.43mm diameter conductor hole for 14/.03mm (1.0mm²) wire. PVC insulation
RTR8034-1 1.43mm diameter conductor hole for 14/.03mm (1.0mm²) wire. Braided cloth insulation
RTR8035 1.91mm diameter conductor hole for 28/.03mm (2.0 mm²) wire. Both PVC and braided cloth insulation
RTR8445 2.44mm diameter conductor hole for 44/.03mm wire. Both PVC and braided cloth insulation
The following terminal can only be soldered.
003632 3mm diameter conductor hole. As this is a soldered part it can be used on any conductor that will fit into it.
The following terminal is neither soldered nor crimped.
27H6713 Bullet terminal push on type for Lucas lamps. This type of terminal is used on Lucas lamps to connect the wires without soldering or crimping.
It is essential that the crimp type bullets are installed on the wire correctly. Please refer to technical instruction number 27 below for a step by step instruction.
We also supply a mixed bag of 100 bullets suitable for soldering at a much reduced price. See RTR5510
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
RTR8097-1000X
|
BULLET solder type, brass tinned bag of 1000Revington TR information: Electrical connector, solder type often referred to as bullets. These parts are made from brass and are ready tinned. These connectors are intended for soldering only and are sold in a bag of 1000. |
£13.67 Ex VAT @ 20% |
|
 |
RTR5510
|
Bullet connector--Mixed bag, 3 sizes - solder onlyRevington TR information: This is a mixed bag of 100 bullets. With 3 different sizes suitable for various wire size these are a must for your spares box. These are made from brass and (the vast majority) are... READ MORE |
£12.12 Ex VAT @ 20% |
|
 |
RTR8034-1
|
BULLET CRIMP 14/030 for CLOTH COVERED WIRERevington TR information: Bullet terminal tinned brass; intended specifically for 14/.03mm (1.0mm˛) wire braided cloth insulated wire. This terminal is designed to be crimped onto the conductor (wire) but can be solders too if desired, it has a... READ MORE |
£0.54 Ex VAT @ 20% |
|
 |
RTR8034
|
BULLET CRIMP 14/030 for PVC COVERED WIRERevington TR information: Bullet terminal tinned brass; intended specifically for 14/030 PVC insulated wire. This terminal is designed to be crimped onto the conductor (wire) but can be solders too if desired, it has a 1.43mm diameter conductor hole... READ MORE |
£0.46 Ex VAT @ 20% |
|
 |
RTR8445
|
BULLET CRIMP 44/03 for PVC/CL COVERED WIRERevington TR information: Bullet terminal tinned brass; intended for both PVC and braided cloth insulated wire. This terminal is designed to be crimped onto the conductor (wire) but can be solders too if desired, it has a 2.50mm diameter... READ MORE |
£0.71 Ex VAT @ 20% |
|
 |
RTR8097-1
|
BULLET CRIMP 9/030MM for CLOTH COVERED WIRERevington TR information: Bullet terminal tinned brass; intended specifically for braided cloth insulated wire. This terminal is designed to be crimped onto the conductor (wire) but can be solders too if desired, it has a 1.16mm diameter conductor hole... READ MORE |
£0.49 Ex VAT @ 20% |
|
 |
RTR8097
|
BULLET CRIMP 9/030MM for PVC COVERED WIRERevington TR information: Bullet terminal tinned brass; intended specifically for PVC insulated wire. This terminal is designed to be crimped onto the conductor (wire) but can be solders too if desired, it has a 1.16mm diameter conductor hole for... READ MORE |
£0.46 Ex VAT @ 20% |
|
|
003632 |
BULLET SOLDER for PVC/CL COVERED WIREThis item has been superceded by RTR8034 - see below |
||
|
RTR8034
|
BULLET CRIMP 14/030 for PVC COVERED WIRERevington TR information: Bullet terminal tinned brass; intended specifically for 14/030 PVC insulated wire. This terminal is designed to be crimped onto the conductor (wire) but can be solders too if desired, it has a 1.43mm diameter conductor hole... READ MORE |
£0.46 Ex VAT @ 20% |
|
 |
27H6713 |
BULLET TERMINAL PUSH ONRevington TR information: Bullet terminal push on type for Lucas lamps. This type of terminal is used on Lucas lamps to connect the wires without soldering or crimping. The wire is fed through the 2.0mm conductor hole in the... READ MORE |
£1.02 Ex VAT @ 20% |
|
|
RTR9277
|
CRIMP TOOL BULLET 6 POINT |
£124.20 Ex VAT @ 20% |
