TRIUMPH PLATES - Browse Original Triumph Catalogue Plates
KIT TR4-6 INTERIOR LAMP KIT
AVAILABLE This part is available to order

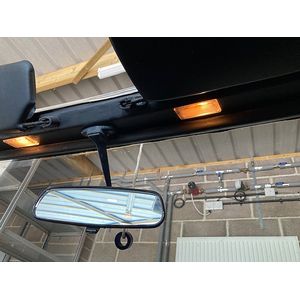

TR4-6 kit interior lights. Modern sports cars have interior lights in the top of the windscreen frame. We have found a suitable flush fitting LED lamp, 2 of which are included in this kit.

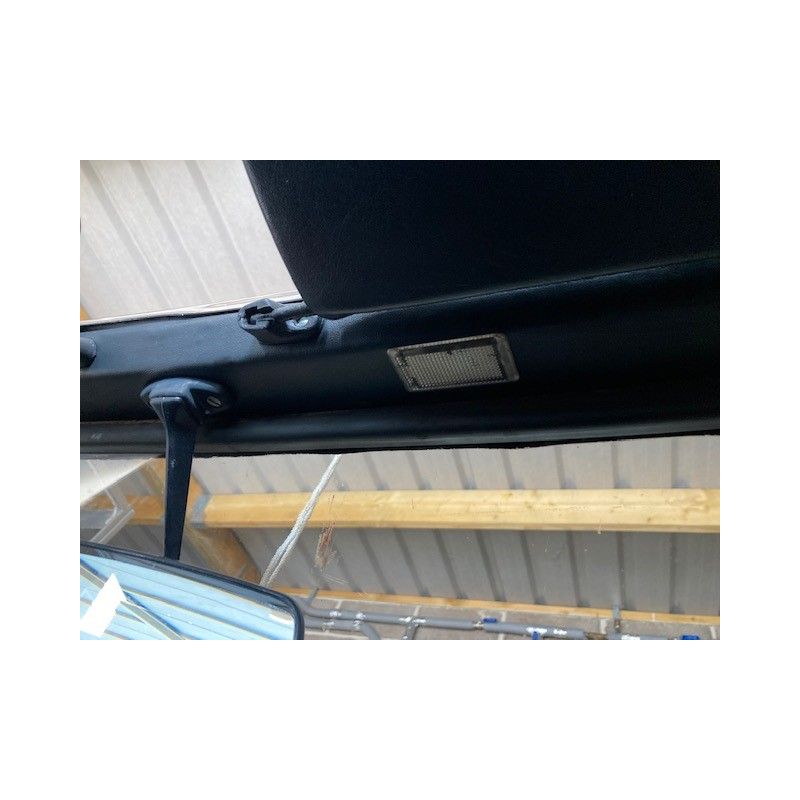

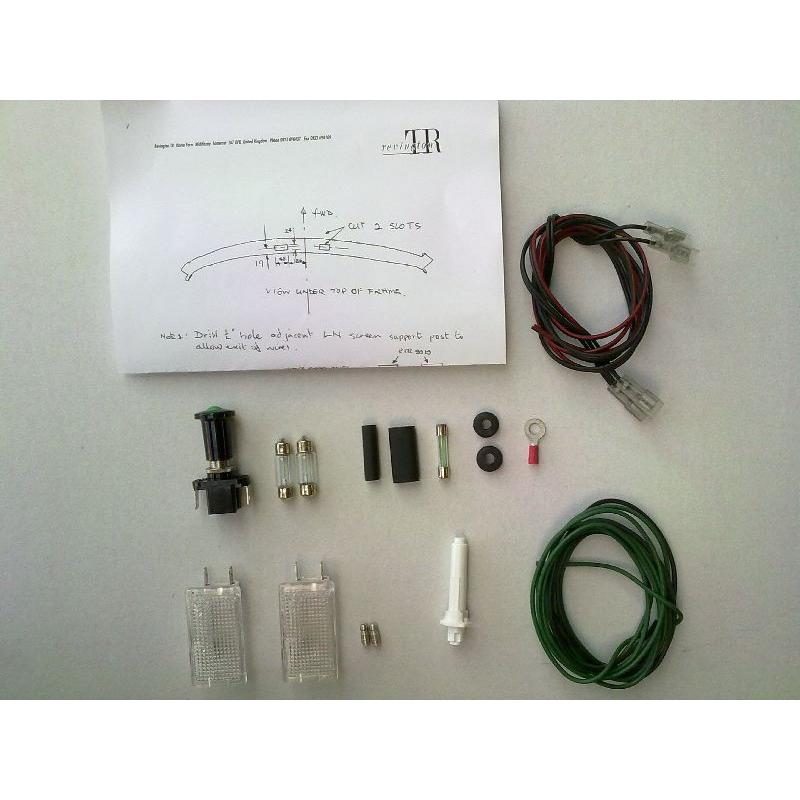

A drawing for installation and wiring is included along with a switch, fuse and wire.The lamps shown are a pervious version. The lamps now included are round 14mm diameter LED's. LED's are polarity sensitive, please ensure the black wire with a white trace is connected to positive.
TR250, 5 and 6 owners may prefer to use a rocker switch such as RTR8412 in the wiper or washer switch position if those controls are being moved for other reasons such as fitting our improved head control kits RTR8328-1K or RTR8328-2K
Fitting Notes
1. A diagram number JNR0027 is available to to be emailed to customers to assist installation
2. LED's are polarity sensitive, please ensure the black wire with a white trace is connected to positive.
3. The wires out of the back of the LED are extremely fragile and must be treated with the utmost care. We suggest 'potting' the wires with a sealant, into the casing before final assembly.
