SWITCH WIPER ILLUMINATED

RTR Upgrade
Part No:
RTR8409-10K

NOT AVAILABLE This part is no longer available

Image 1

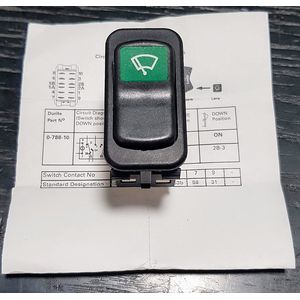

Modern rocker two speed wiper Switch that can be used to operate a wiper motor of the type found on all TR6 and TR7-8 or the motor in our TR2-5 wiper upgrade kit as well as many other motors from 1969 onward. This switch features an illuminated wiper legend that can left disconnected if the illumination is not required.

The wiper switch function is not affected if the illumination is not used.



If this switch is being considered for a CC, CP TR6 it should be noted that the body of this modern switch is larger than the original Clear Hooters switch. The mounting slot will need to be opened out to fit. Slot size required for this switch is 49.0mm x 20.0mm.

a wiring diagram of the switches connections is included with each switch, however, when used to operate a TR6 type wiper motor  (or our TR2-5 wiper improvement kit) these are the connections required.


Switch Terminal No. TR6 Wire Code TR6 wiper motor Function
1 Brown/Green Motor Park Switch
2A Red/Green First Speed
2B Green 12 Volt Feed
3 Blue/Green Second speed
7 Red/White Instrument Illumination
9 Black Earth for illumination only




Electrical systems, Instruments etc.

No catalogue plates are available
