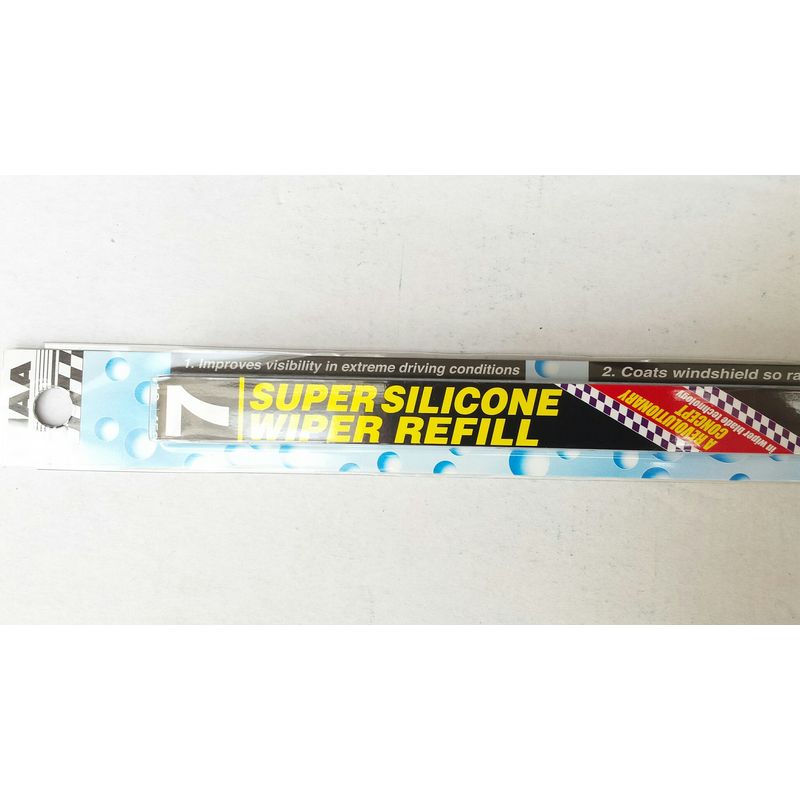

This high performance wiper blade refill from PIAA is highly recommended by RevingtonTR. This type of blade is used on our own rally cars and has proved very effective in harsh rally environment.

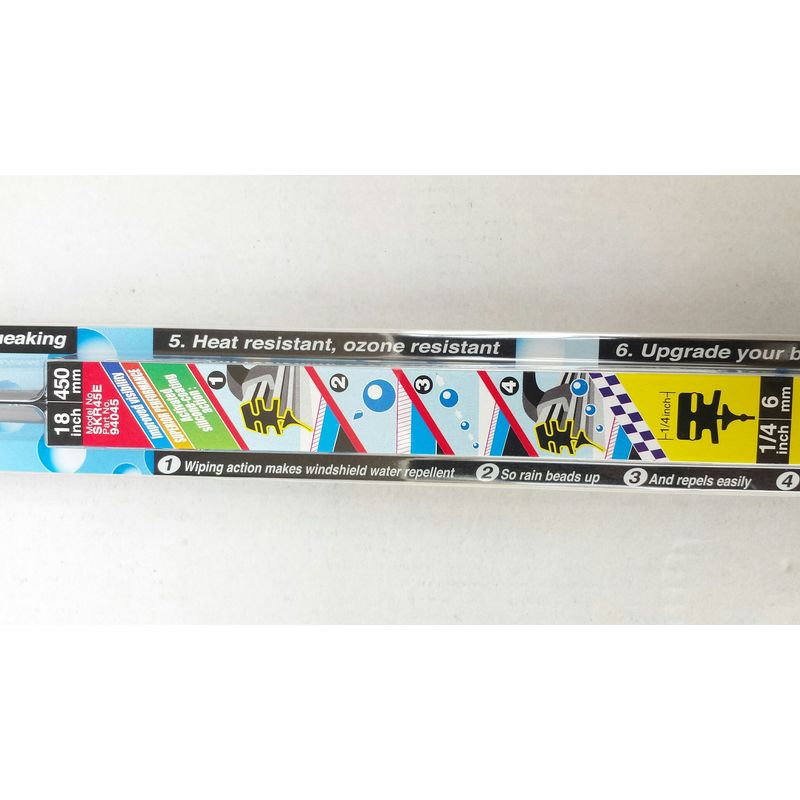

The insert is supplied in a length of 450mm (16"), which you may need to cut to the required length depending on application. It has a carrier width of 6mm.
Improved Visibility in extreme driving conditions
Silicone-coating action coats windshield so rain beads up and rolls off
Extremely long life
Quiet, no squeeking
Heat resistant, ozone resistant
These blades are held in place with a nodule of rubber
Upgrade your blades and drive safer
Blades are available in larger sizes up to 26" if required, please enquire.

The blade is held in place by a nodule of rubber on one end of the blade. Therefore one refill is required for each blade and will need to be trimmed to length. (Ensuring the correct end is cut!)

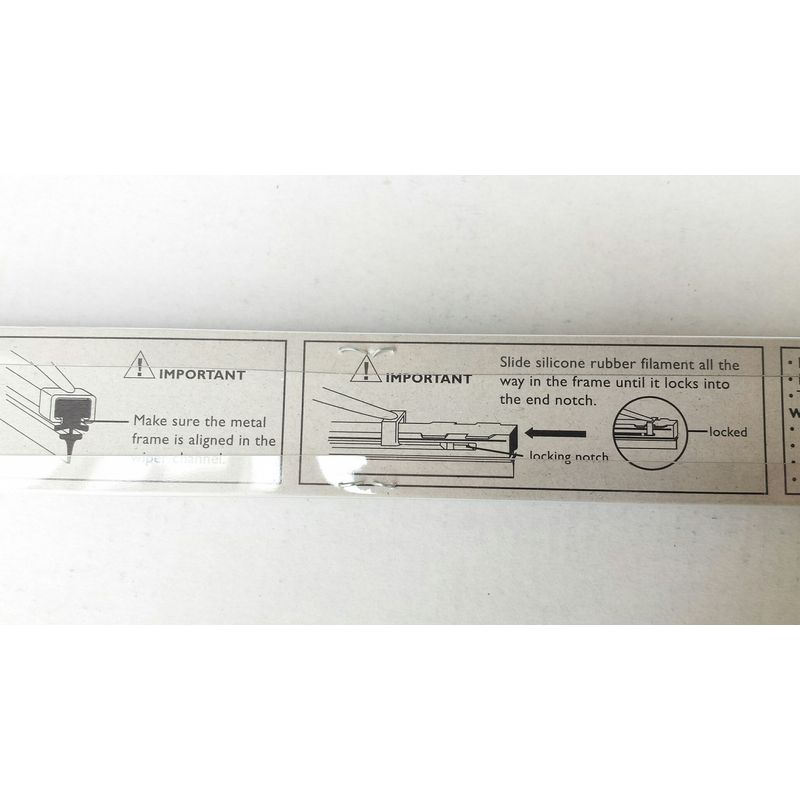

Fitting tips



• The blades have a bulbous end for securing the insert at one end only. Observe this carefully when cutting to size to ensure you retain this end- very important. Careful inspection will reveal that this end had a short groove either side for retaining the end clamp of the wiper arm
• with the original wiper blade insert removed and comparing the length of the clamp with the groove in the new insert you will notice that the clamp is somewhat larger than the groove it needs to fit into. Grind or file the return edge of the clamp so that it is 5mm long
• slide the insert into the wiper arm and then with pliers crimp the clamps so that the insert cannot come out but can slide, do this to all clamps except the last one which had been modified to fit into the groove, this one is clamped a little tighter so that the blade is retained firmly.
• Before operating for the first time ensure the windscreen is thoroughly clean and wetted to ensure the new blades are not damaged by grit and dust sitting on the dry windscreen
