TRIUMPH PLATES - Browse Original Triumph Catalogue Plates
TEMP GAUGE DEG.C TR2-3B ELEC
AVAILABLE This part is available to order

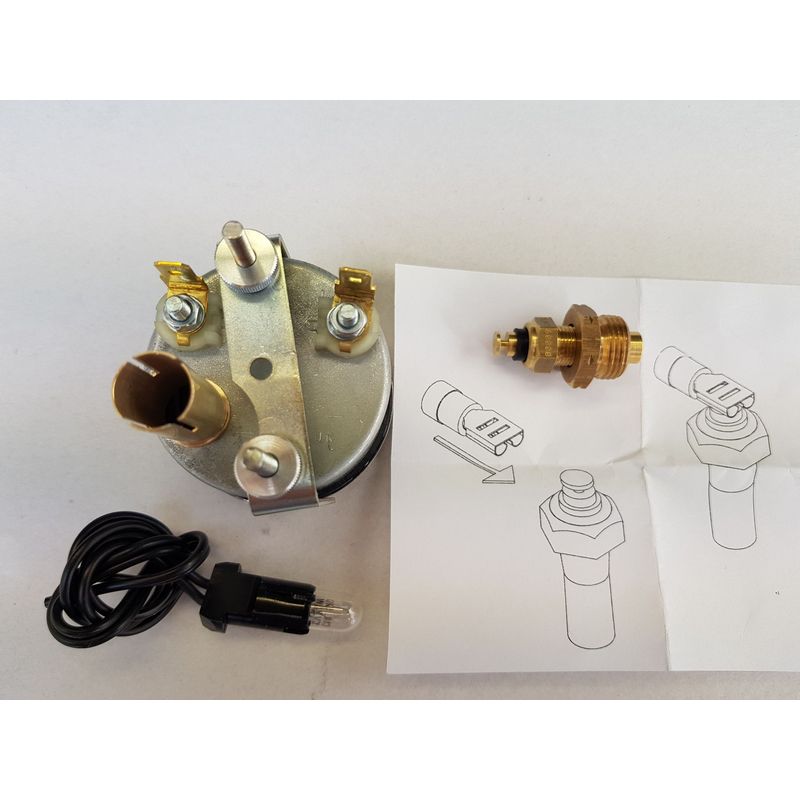

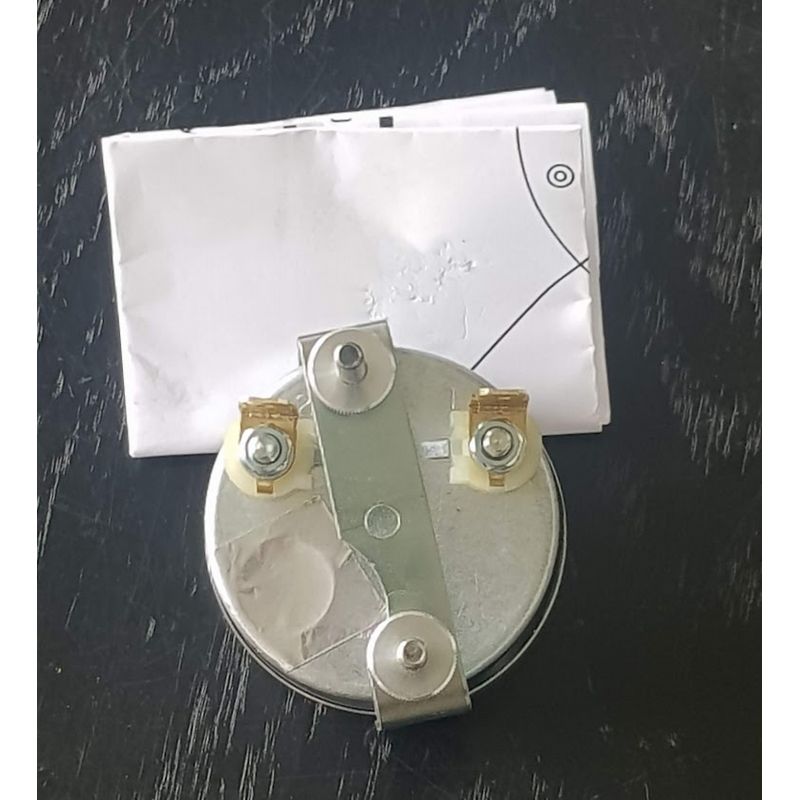

Coolant Temperature Gauge TR2-3B electrical reading degrees C. This Gauge is visually, when fitted into the instrument panel the same as the original capillary instrument. A suitable electrical sender unit will be required to drive the unit. A standard TR6 sender unit should work but these are neither reliable or accurate.
We prefer to supply sender unit GTR108-1 which is a very reliable and accurate sender unit ideally matched to this gauge. See below. A voltage stabiliser is not required to drive this Fuel Gauge.
The advantages of this type of gauge are; greater accuracy, improved reliability (capillary tubes are likely to break) and the ability to detach the instrument or instrument panel without disturbing the coolant system.
Information Sheets
No catalogue plates are available| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
GTR108-1 |
HQ TEMP TRANSMITTER TR2-8 5/8 x 18UNFRevington TR information: GTR108-1 is a high quality Temperature Sender suitable for all TR’s 2 (with an electrical instrument) to TR8. Assemble with an aluminium crush washer WA11013047 if a sealing washer is not supplied in the kit). GTR104... READ MORE |
£41.81 Ex VAT @ 20% |
|
 |
GTR108 |
TEMP TRANSMITTER TR5,6,7&V8Revington TR information: Temperature sender suitable for TR250, 5, all TR6 and TR7/8. Assemble with an aluminium crush washer WA11013047. GTR108 and GTR104 (TR4-4A) are virtually the same and as well as operating in their original environment will drive... READ MORE |
£19.19 Ex VAT @ 20% |
|
 |
RTR8572
|

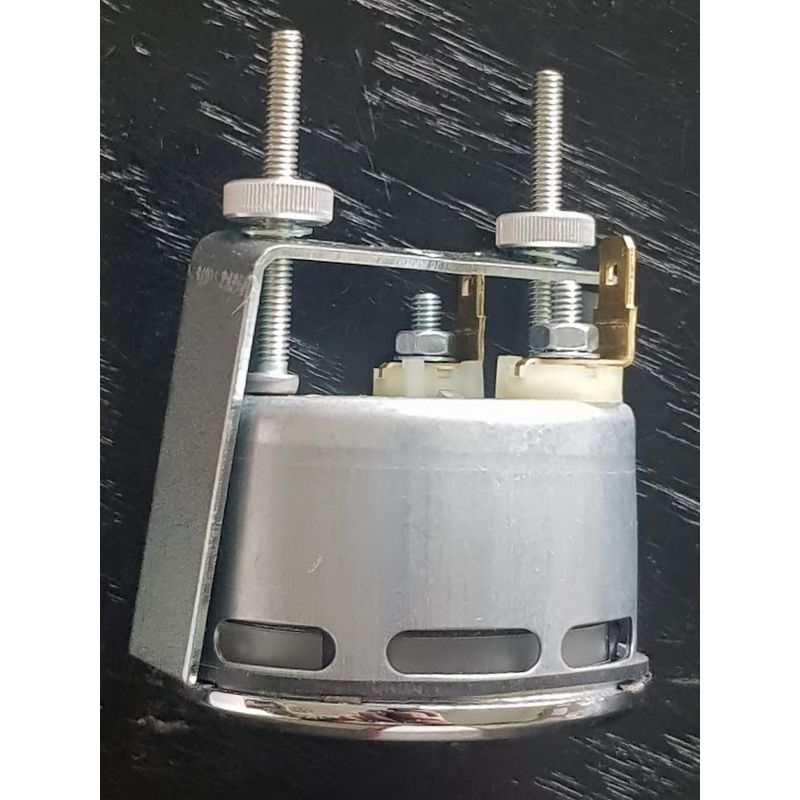

SURCHARGE TO PIERCE ONE TR2-3B INSTRUMENTRevington TR information: This part number covers the cost for TR2-3B gauges to be pierced around the side of the casing as original to make use of the original external illumination. All TR2-3B new small instruments are generally supplied... READ MORE |
£26.87 Ex VAT @ 20% |
|
 |
RTR8566-F
|
TEMP GAUGE DEG.F TR2-3B ELECRevington TR information: Temperature Gauge TR2-3B electrical reading degrees F. This Gauge is visually, when fitted into the instrument panel the same as the original capillary instrument. A suitable electrical sender unit will be required to drive the unit.... READ MORE |
£344.21 Ex VAT @ 20% |
