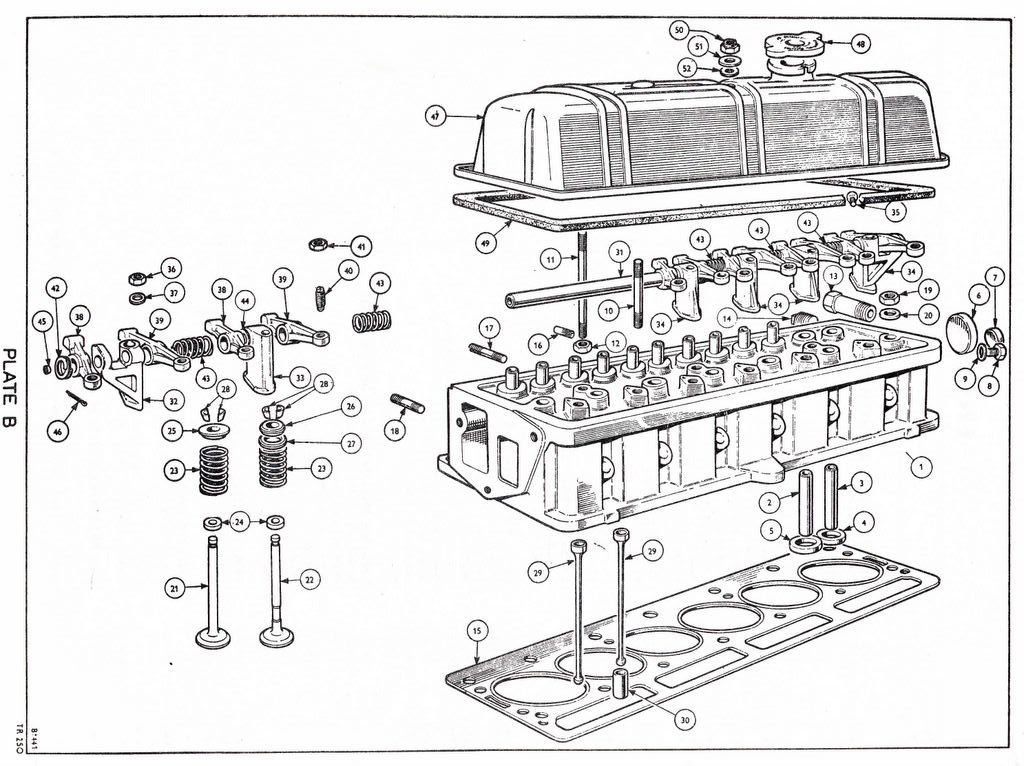

TR250 Plate B - ENGINE: Cylinder Head
<< Return to Triumph Catalogue Plate List
Also in this listing
Assembly, Valves, Push Rods, Tappet, Rocker Shaft and Cover Assembly| Plate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
|---|---|---|---|---|---|---|
 |
B1AA | 516796 |
CYLINDER HEAD ASSEMBLY (8.6 to I Compression Ratio) (with valves and springs less studs)Revington TR information: Not available new, use RTR1181 Exchange exchange head. |
1 | ||
|
B1 | 516797 |
CYLINDER HEAD ASSEMBLY (8.6 to I Compression Ratio) (less valves, springs and studs)Revington TR information: Not available new, use RTR1181 Exchange exchange head. |
1 | ||
|
B2 | 058923 |
Guide, valve, inletRevington TR information: Standard steel inlet Valve Guide fitted to TR2-6 inclusive. Also used in the exhaust position on TR4 from CT27411 and all TR4A. Suitable for valves having a shaft diameter of 5/16" (7.94mm), the guide has an... READ MORE |
6 |
£1.84 Ex VAT @ 20% |
|
|
B3 | 111869 |
Guide, valve, exhaustRevington TR information: Standard steel exhaust Valve Guide fitted to TR250, 5 and 6. Suitable for valves having a shaft diameter of 5/16" (7.94mm), the guide has an outside diameter of 0.5025" (12.76mm). The guide is 2.25" long The... READ MORE |
6 |
£5.28 Ex VAT @ 20% |
|
|
B4 | 146497 |
Insert, valve seat - Exhaust |
6 |
£9.31 Ex VAT @ 20% |
|
|
B5 | 146496 |
Insert, valve seat - Inlet |
6 | ||
|
B6 | 144648 |
Plug, core, bucket type, rear face of head |
I |
£2.29 Ex VAT @ 20% |
|
|
B7 | 144686 |
Plug, core, in rear face of head |
1 |
£3.71 Ex VAT @ 20% |
|
|
B8 | 101022 |
Screw, set - Rocker oil feedThis item has been superceded by SH605041 - see below |
I | ||
|
SH605041 |
SCREW 5/16 UNF X 1/2 INCH |
I |
£0.76 Ex VAT @ 20% |
||
|
B9 | 500469 |
Washer, copper - Rocker oil feedThis item has been superceded by WC10508038 - see below |
I | ||
|
WC10508038 |
WASHER COPPER 5/16 I/D X 1/2 O/D X 0.040" |
I | |||
|
B10 | 132495 |
Stud, rocker pedestalThis item has been superceded by ST606241 - see below |
6 | ||
|
ST606241 |
STUD 3/8 X 3" UNF+ UNF |
6 |
£5.21 Ex VAT @ 20% |
||
|
B11 | 105123 |
Stud, rocker coverThis item has been superceded by ST605331 - see below |
3 | ||
|
ST605331 |
STUD 5/16 X 4-1/8" UNF+ UNF |
3 |
£6.41 Ex VAT @ 20% |
||
|
B12 | HN2008 |
Nut, securing stud to cylinder headThis item has been superceded by NP605081 - see below |
3 | ||
|
NP605081 |
NUT PLAIN 5/16 UNF |
3 |
£0.17 Ex VAT @ 20% |
||
|
B13 | 148435 |
Adaptor, water valve to cylinder head, when heater is fittedRevington TR information: Straight adaptor, cylinder head to heater valve, This adaptor is 81mm long, When attempting to remove an old heater valve from this adaptor you often find the alloy valve body cracks and the remains stick inside... READ MORE |
1 |
£16.38 Ex VAT @ 20% |
|
|
148435SH |
Second Hand ADAPTOR, HEATER valve TR5, TR6Revington TR information: Three types of water valve adaptor were fitted to TR4-6: - 133061 is a short slightly angled adaptor fitted to TR4, 4A, TR250 and carburettor TR6 148435 is a straight adaptor with a hexagon at the top.... READ MORE |
1 |
£12.17 Ex VAT @ 20% |
||
|
B14 | 114774 |
Plug, replacing adaptor, when heater is not fittedRevington TR information: The original square headed taper plug 114774 is used as an axle filler, drain plug and as a blank in the cooling system when a heater is not fitted. Revington TR recommend using a magnetic drain... READ MORE |
1 |
£5.87 Ex VAT @ 20% |
|
|
114774SH |
Second Hand DRAIN Plug ENG/AXLE SQ TR2-6Revington TR information: Second hand Plug. The original square headed taper plug 114774 is used as an axle filler, drain plug and as a blank in the cooling system when a heater is not fitted. Revington TR recommend using... READ MORE |
1 |
£3.52 Ex VAT @ 20% |
||
|
B15 | 213776 |
Gasket, cylinder headThis item has been superceded by AJM346 - see below |
I | ||
|
AJM346 |
GASKET CYL HEAD TR5-6 PRE comm. no. CP75000Revington TR information: Head gasket for flat top TR250, 5 and 6 Engine Block up to engine number CC/CP75000 (no recess). The following head gasket and gasket set range fitted to TR250, 5 and 6 Up to engine numbers... READ MORE |
I |
£46.02 Ex VAT @ 20% |
||
|
B16 | D53113 |
Dowel, Inlet manifold attachment |
2 | ||
|
B17 | 105124 |
Stud, exhaust manifold, outerThis item has been superceded by ST606111 - see below |
4 | ||
|
ST606111 |
STUD 3/8 X 1-3/8" UNF+ UNF |
4 |
£1.55 Ex VAT @ 20% |
||
|
B18 | 105125 |
Stud, inlet manifoldThis item has been superceded by ST606141 - see below |
6 | ||
|
ST606141 |
STUD 3/8 X 1-3/4" UNF+ UNF |
6 |
£1.96 Ex VAT @ 20% |
||
|
B19 | 103810 |
Nut - Securing cylinder headRevington TR information: TR250, 5 and 6 standard nut. 7/16"UNF 11/16" AF. For high compression engines use our deeper nut part number NP607162 |
14 |
£4.73 Ex VAT @ 20% |
|
|
103810SH |
CYLINDER HEAD NUTRevington TR information: TR5-6 standard nut. 7/16"UNF 11/16" AF. For very high compression engines use our deeper nut part number NP607162 |
14 |
£1.45 Ex VAT @ 20% |
||
|
B20 | 508289 |
Washer, plain - Securing cylinder head |
14 |
£0.94 Ex VAT @ 20% |
|
|
VALVES |
|||||
|
B21 | 146128 |
Valve, inletRevington TR information: head dia 36.51mm . RTR1129 is our stainless steel gas flowed version. |
6 |
£13.28 Ex VAT @ 20% |
|
|
B22 | 148386 |
Valve, exhaustTriumph Catalogue Remarks: Fitted up to Engine No. Only |
6 | ||
|
149658 |
Valve, exhaustRevington TR information: head dia 32mm. RTR1130 is the Stainless Steel gas flowed version. |
6 |
£17.04 Ex VAT @ 20% |
||
|
B22A | 149658 |
Valve, exhaustTriumph Catalogue Remarks: Fitted from Engine No. and future |
6 |
£17.04 Ex VAT @ 20% |
|
|
B23 | 136487 |
Spring, valveRevington TR information: This valve spring is suitable for TR250 and Early TR6 carb up to engine number CC67893. Consider spring set RTR1174 |
12 |
£4.25 Ex VAT @ 20% |
|
|
B24 | 115118 |
Collar, spring (lower)Revington TR information: These valve spring collars are used only when single springs are used; that being TR250 and Early TR6 carb up to engine number CC67893 and TR6PI and carb engine number CC75000 to 75737 and CP75001 to... READ MORE |
12 | ||
|
B25 | 111870 |
Collar, spring (upper), inlet valve onlyRevington TR information: These inlet valve spring upper collars (caps) were used on all versions of TR250, TR5-TR6. RTR prefer to supply second hand part 111870SH or aluminium version RTR1180 which are guaranteed to be dimensionaly correct. See part... READ MORE |
6 |
£5.17 Ex VAT @ 20% |
|
|
111870SH |
Second Hand INLET VALVE CAP 6 CYLRevington TR information: Second Hand inlet valve spring upper collars (caps) used on all versions of TR250, TR5-TR6. RTR prefer to supply this second hand part 111870SH or aluminium version RTR1180 which are guaranteed to be dimensionaly correct. See... READ MORE |
6 |
£4.58 Ex VAT @ 20% |
||
|
B26 | 128334 |
Collar, valve (top inner) - Exhaust valve onlyRevington TR information: These exhaust valve spring upper inner collars (caps) were used on all versions of TR250, TR5 and TR6. These collars are not available new; use second hand part 128334SH or inlet version 111870 or aluminium... READ MORE |
6 | ||
|
128334SH |
EX/VALVE CAP INNER |
6 |
£3.29 Ex VAT @ 20% |
||
|
B27 | 128335 |
Collar, valve (top outer) - Exhaust valve onlyRevington TR information: These exhaust valve spring upper outer collars (caps) were used on all versions of TR250, TR5 and TR6. Consider second hand part 128335SH or inlet version 111870 or aluminium version RTR1180. See part number RTR1180 for... READ MORE |
6 |
£4.14 Ex VAT @ 20% |
|
|
128335SH |
Second Hand EX/VALVE CAP OUTER |
6 |
£1.90 Ex VAT @ 20% |
||
|
B28 | 106663 |
Cotter (split cone)Revington TR information: There are two collet halves per valve. This part number is for two halves therfore 2 pieces are supplied and priced as 1 collet = 2 halves. Note - Some suppliers sell just 1 half. |
12 prs. |
£4.03 Ex VAT @ 20% |
|
|
106663SH |
Second Hand VALVE COLLET 4 CYL. |
12 prs. |
£5.11 Ex VAT @ 20% |
||
|
B29 | 148916 |
PUSH RODRevington TR information: Standard TR250, TR6carb and CRTR6 push rod.
NOTE: Only two lengths of push rod were used in TR 6 cylinder engines although longer ones were used in saloon cars with lower compression.
Part number 149513 is used in... READ MORE |
12 | ||
|
148916SH |
Second Hand ROD TR250/6CARBRevington TR information: Second Hand Standard TR250, TR6carb and CRTR6 push rod. NOTE: Only two lengths of push rod were used in TR 6 cylinder engines although longer ones were used in saloon cars with lower compression. Part number 149513 is... READ MORE |
12 |
£5.11 Ex VAT @ 20% |
||
|
B30 | 143552 |
TAPPETRevington TR information: Consider using our improved cam follower RTR1298. |
12 |
£12.35 Ex VAT @ 20% |
|
|
B31 | 214559 |
ROCKER SHAFTRevington TR information: This Rocker Shaft is to the original equipment standard. Consider RTR1187 which is the tuftrided version used for our exchange rocker shaft. Remember to install a plug 137811 at either end of the rocker shaft before... READ MORE |
1 |
£35.98 Ex VAT @ 20% |
|
|
B32 | 145867 |
Pedestal, No. 1Revington TR information: The same aluminium rocker pedestals were used in all TR250, 5 and TR6 there being 3 types on one shaft. The number 1 end part number 145867, the intermediate, 2, 3, 4, and 5, part number... READ MORE |
1 |
£20.71 Ex VAT @ 20% |
|
|
145867SH |
Second Hand PEDESTAL UNDRILLED TR5-6 NO.1Revington TR information: The same aluminium rocker pedestals were used in all TR250, 5 and TR6 there being 3 types on one shaft. The number 1 end part number 145867, the intermediate, 2, 3, 4, and 5, part number... READ MORE |
1 |
£17.86 Ex VAT @ 20% |
||
|
B33 | 145868 |
Pedestal, intermediateRevington TR information: Not available new use second hand part 145868SH. The same aluminium rocker pedestals were used in all TR250, 5 and TR6 there being 3 types on one shaft. The number 1 end part number 145867, the... READ MORE |
4 | ||
|
145868SH |
Second Hand PEDESTAL INTERMEDIATE 6 CYLRevington TR information: The same aluminium rocker pedestals were used in all TR250, 5 and TR6 there being 3 types on one shaft. The number 1 end part number 145867, the intermediate, 2, 3, 4, and 5, part number... READ MORE |
4 |
£17.86 Ex VAT @ 20% |
||
|
B34 | 145869 |
Pedestal, No. 6Revington TR information: The same aluminium rocker pedestals were used in all TR250, 5 and TR6 there being 3 types on one shaft. The number 1 end part number 145867, the intermediate, 2, 3, 4, and 5, part number... READ MORE |
1 |
£30.60 Ex VAT @ 20% |
|
|
145869SH |
Second Hand PEDESTAL DRILLED TR5-6 NO.6Revington TR information: The same aluminium rocker pedestals were used in all TR250, 5 and TR6 there being 3 types on one shaft. The number 1 end part number 145867, the intermediate, 2, 3, 4, and 5, part number... READ MORE |
1 |
£17.86 Ex VAT @ 20% |
||
|
B35 | 104859 |
Screw, locating, shaft to drilled pedestal No. 6 |
1 |
£8.39 Ex VAT @ 20% |
|
|
B36 | HN2009 |
Nut - Rocker pedestal to cylinder headThis item has been superceded by NP606111 - see below |
6 | ||
|
NP606111 |
NUT PLAIN 3/8 UNF X 11/32" (STD) |
6 |
£0.14 Ex VAT @ 20% |
||
|
B37 | WP009 |
Washer, plain - Rocker pedestal to cylinder headThis item has been superceded by WP106121191 - see below |
6 | ||
|
WP106121191 |
WASHER PLAIN 3/8" x 3/4" x 0.119" HARDENED |
6 |
£1.48 Ex VAT @ 20% |
||
|
B38 | 109023 |
Rocker, No. 1This item has been superceded by 139897 - see below |
6 | ||
 |
139897 |
ROCKER No.1 TR260, 5, 6 2500 etcRevington TR information: Rocker No1, 6 Cylinder, Consider original second hand part number 139897SH All TR250, 5 and TR6 used the same Rocker Arms part number 109023 for number 1 and 109024 for number 2 and of course all... READ MORE |
6 |
£51.85 Ex VAT @ 20% |
||
|
B39 | 109024 |
Rocker, No. 2This item has been superceded by 139896 - see below |
6 | ||
 |
139896 |
ROCKER No.2 genuine BL TR250, 5, 6Revington TR information: Rocker No2, 6 Cylinder, original Leyland Packaged. Our stock are genuine Leyland parts. Consider original second hand part number 139896SH All TR250, 5 and TR6 used the same Rocker Arms part number 109023 for number 1... READ MORE |
6 |
£51.85 Ex VAT @ 20% |
||
|
B40 | 057109 |
Screw, adjustment - Fitted in rockersThis item has been superceded by 109495 - see below |
12 | ||
|
057109SH |
ROCKER ADJ SCREW |
12 |
£1.56 Ex VAT @ 20% |
||
|
B41 | 057110 |
Locknut - Fitted in rockersThis item has been superceded by 51K1178 - see below |
12 | ||
|
51K1178 |
LOCKNUT ROCKER ADJ.Revington TR information: 5/16" UNF locknut rocker adjusting TR2-6 All TR2-6 use a similar rocker adjusting screw and nut principle. In fact all TR2-4A and TR5, TR6CP, CF and CR use the same screw 109495 and nut 057110 (now... READ MORE |
12 |
£0.65 Ex VAT @ 20% |
||
|
B42 | 105322 |
Spring, rocker, fitted to pedestals Nos. 1 and 6This item has been superceded by WT10914 - see below |
2 | ||
|
WT10914 |
WASHER THACKERY 9/16 INCH |
2 |
£0.70 Ex VAT @ 20% |
||
|
B43 | 119313 |
Spring, rockerRevington TR information: Fitted to all 6 cylinder TR's use 119313SH |
5 | ||
|
119313SH |
Second Hand ROCKER SPRING |
5 |
£1.31 Ex VAT @ 20% |
||
|
B44 | WP8013 |
Washer, plain |
4 |
£0.91 Ex VAT @ 20% |
|
|
B45 | 137811 |
Plug, rocker shaft |
2 | ||
|
B46 | P00010 |
Pin, cotterThis item has been superceded by PS106071 - see below |
1 | ||
|
PS106071 |
PIN SPLIT 3/32" X 7/8" |
1 |
£0.54 Ex VAT @ 20% |
||
|
B47 | 213496 |
ROCKER COVER ASSEMBLYRevington TR information: Fitted to TR5 and TR250 and Carburettor TR6 up to Engine No. CC50,000 only Five different rocker covers were fitted to TR250, 5 and 6. The part numbers were:- 213496 Fitted up to Engine No. CC50,000... READ MORE |
1 | ||
|
B48 | 138176 |
Cap, oil fillerThis item has been superceded by GRC126 - see below |
1 | ||
|
GRC126 |
RAD CAP |
1 |
£6.24 Ex VAT @ 20% |
||
|
B49 | 119322 |
Gasket, rocker coverThis item has been superceded by AJM413 - see below |
1 | ||
|
AJM413 |
GASKET ROCKER COVER TR5-6 |
1 |
£5.87 Ex VAT @ 20% |
||
|
B50 | TN3208 |
Nut, nyloc - Rocker cover to cylinder head studsThis item has been superceded by NY605111 - see below |
3 | ||
|
NY605111 |
NUT NYLOCK 5/16 UNF X 0.344" MEDIUM |
3 |
£0.38 Ex VAT @ 20% |
||
|
B51 | WP0008 |
Washer, plain - Rocker cover to cylinder head studsThis item has been superceded by WP10510075 - see below |
3 | ||
|
WP10510075 |
WASHER PLAIN 5/16" x 5/8" x 0.075" |
3 |
£0.44 Ex VAT @ 20% |
||
|
B52 | WF0508 |
Washer, fibre - Rocker cover to cylinder head studsThis item has been superceded by WF10510056 - see below |
3 | ||
|
WF10510056 |
WASHER FIBRE 5/16 I/D X 5/8 OD |
3 |
£0.80 Ex VAT @ 20% |
