ALTERNATIVE & ACCESSORY SWITCHES
We stock a large range of switches for every application. If we don't list it, we can usually get it.| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
RTR8391
|
SWITCH LEVER OFF/ONRevington TR information: Lever Switch off/on |
£12.26 Ex VAT @ 20% |
|
 |
RTR8586
|
Switch Single pole single throw LEDRevington TR information: Single pole, single throw toggle switch. The lever illuminates red when it's on and is clear when off. The LED illumination ensures the lever does not become hot as happens with similar switches with normal bulb illumination,... READ MORE |
£16.39 Ex VAT @ 20% |
|
 |
RTR8502G
|
SWITCH LEVER ON/OFF GREEN LEDRevington TR information: Chrome stalk on/off lever switch with a Green LED in the top of the stalk which can be wired to illuminate when the switch is on. These switches are also available with Blue, Yellow and... READ MORE |
£16.66 Ex VAT @ 20% |
|
 |
RTR8502R
|
SWITCH LEVER ON/OFF RED LEDRevington TR information: Chrome stalk on/off lever switch with a Red LED in the top of the stalk which can be wired to illuminate when the switch is on. These switches are also available with Blue, Yellow and... READ MORE |
£16.66 Ex VAT @ 20% |
|
 |
RTR8502U
|
SWITCH LEVER ON/OFF BLUE LEDRevington TR information: Chrome stalk on/off lever switch with a Blue LED in the top of the stalk which can be wired to illuminate when the switch is on. These switches are also available with Green/Yellow and Red... READ MORE |
£16.66 Ex VAT @ 20% |
|
 |
RTR8502Y
|
SWITCH LEVER ON/OFF YELLOW LEDRevington TR information: Chrome stalk on/off lever switch with a Yellow LED in the top of the stalk which can be wired to illuminate when the switch is on. These switches are also available with Blue, Green and... READ MORE |
£16.66 Ex VAT @ 20% |
|
|
RTR8506-1
|
SWITCH ROTARY ON/OFFRevington TR information: Rotary switch on/off. No illumination |
£18.64 Ex VAT @ 20% |
|
|
RTR8506-2
|
SWITCH ROTARY ON/OFF + ILLUMINATIONRevington TR information: Rotary switch on/off with illumination Red. Green and Yellow lenses provided |
£29.12 Ex VAT @ 20% |
|
|
RTR8506-3
|
SWITCH ROTARY SIDE/HEADRevington TR information: Rotary switch specifically for side/headlamp operation. No illumination |
£29.12 Ex VAT @ 20% |
|
|
RTR8506-4
|
ROTARY SWITCH ON/ON/OFFRevington TR information: Switch rotary on/off/on |
£20.95 Ex VAT @ 20% |
|
 |
RTR8065
|
SWITCH LEVER ON/OFF/ONRevington TR information: Lever switch ON/OFF/ON. Metal body. Dolly type |
£17.40 Ex VAT @ 20% |
|
 |
RTR8075
|
SWITCH LEVER ON/ONRevington TR information: Lever switch ON/ON Changover single pole |
£15.26 Ex VAT @ 20% |
|
|
RTR8164M
|
SWITCH BRACKET SINGLE HOLE METALRevington TR information: Switch bracket single hole - Metal with a crackle plastic covering. |
£3.62 Ex VAT @ 20% |
|
|
RTR8164P
|
SWITCH BRACKET SINGLE PLASTICRevington TR information: Switch bracket single hole - crackle finish plastic. |
£4.36 Ex VAT @ 20% |
|
|
RTR8165
|
SWITCH BRACKET TWO HOLE plasticRevington TR information: Switch bracket two hole - Black plastic with black vinyl type finish to the face. the bracket is intended to take two switches or lamps and has two 12.7mm diameter holes to accommodate these. |
£5.74 Ex VAT @ 20% |
|
 |
RTR8068
|

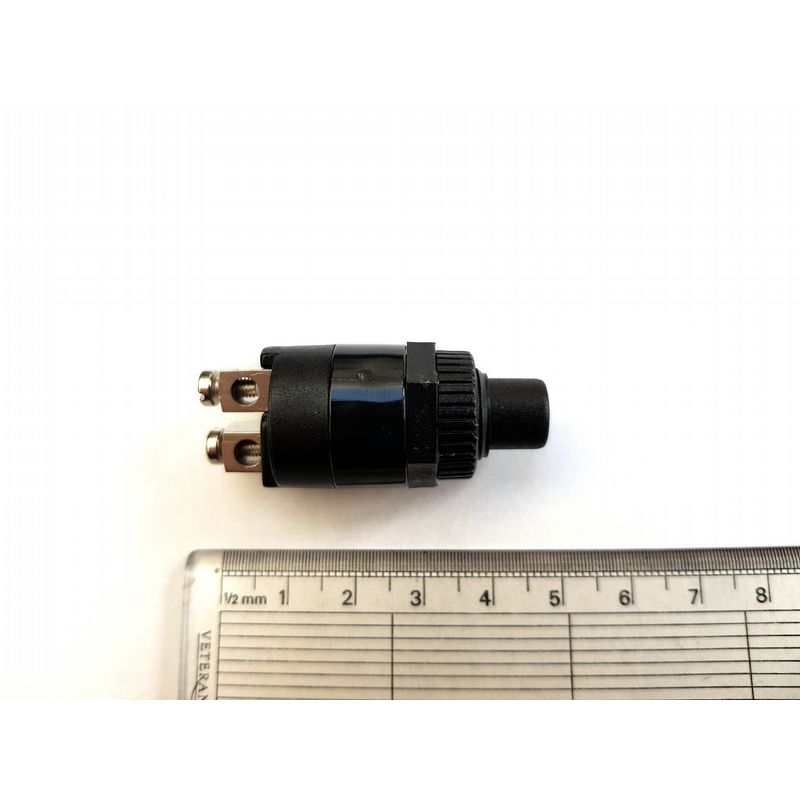

SWITCH PUSH BUTTON Black screw connRevington TR information: Black plastic rim with black plastic button 17mm diameter, 26mm flange diameter. A panel hole of 22mm is required |
£15.14 Ex VAT @ 20% |
|
 |
RTR8211
|
SWITCH PUSH TO MAKERevington TR information: Push to make switch. Small - suitable for starter/washers etc. 14mm hole required to mount. |
£14.72 Ex VAT @ 20% |
|
 |
RTR8509
|
PUSH TO MAKE SWITCHRevington TR information: Push to make switch stainless steel rim flush stainless steel button. Approximately 20mm hole required to mount. |
£13.72 Ex VAT @ 20% |
|
 |
2H3383 |
HORN PUSH MGARevington TR information: Horn push button - dash mounted. Useful to mount as a second button in front of the navigator in cars used for rallying. |
£32.21 Ex VAT @ 20% |
|
 |
RTR8133G
|
SWITCH PUSH PULL ILLUM GREENRevington TR information: Pull switch. Coloured green light illuminates in the centre of the switch when operational. Similarly part numbered switches are suffixed with: (W) for white, (R) for red, (Y) for amber and (G) for green. |
£19.51 Ex VAT @ 20% |
|
 |
RTR8133R
|
SWITCH PUSH PULL ILLUM REDRevington TR information: Pull switch. Coloured red light illuminates in the centre of the switch when operational. Similarly part numbered switches are suffixed with: (W) for white, (R) for red, (Y) for amber and (G) for green. |
£19.51 Ex VAT @ 20% |
|
 |
RTR8133W
|
SWITCH PUSH PULL ILLUM WHITERevington TR information: Pull switch. Coloured white light illuminates in the centre of the switch when operational. Similarly part numbered switches are suffixed with: (W) for white, (R) for red, (Y) for amber and (G) for green. |
£19.51 Ex VAT @ 20% |
|
 |

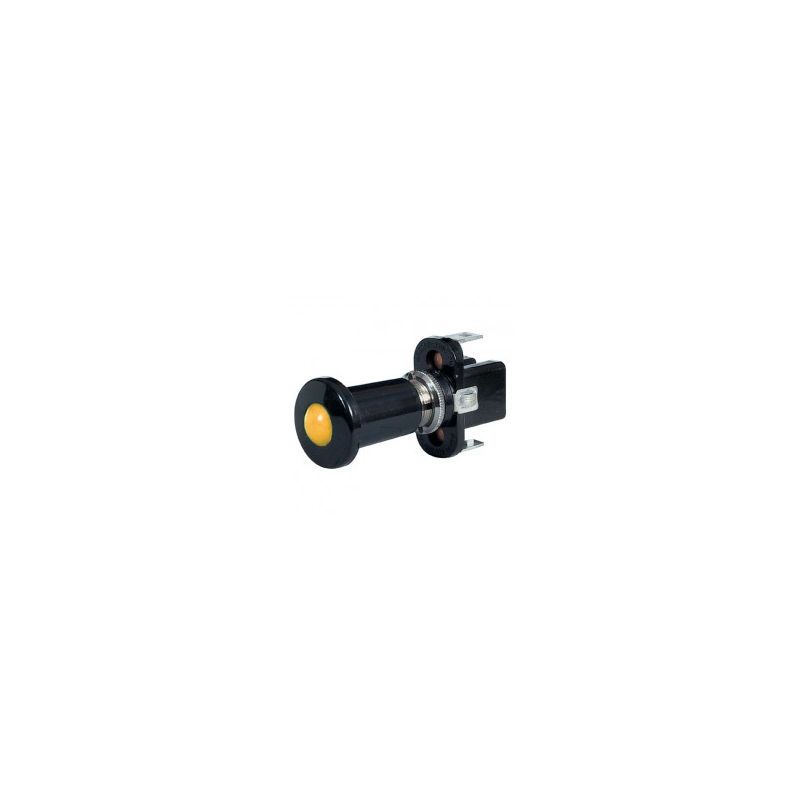

RTR8133Y
|
SWITCH PUSH PULL ILLUM AMBERRevington TR information: Pull switch. Coloured amber light illuminates in the centre of the switch when operational. Similarly part numbered switches are suffixed with: (W) for white, (R) for red, (Y) for amber and (G) for green. |
£19.51 Ex VAT @ 20% |
|
 |
RTR8142
|
SWITCH PUSH WASHERS ELECTRICALRevington TR information: Windscreen washer electrical switch. This switch is 12.5 amps 22mm panel hole. RTR8122 is 10amps 14mm panel hole |
||
 |
RTR8436
|
SWITCH SPRUNG OFF/MOM.ON 40MM ARMRevington TR information: Momentary operation high quality Switch with an all-metal body and a 40mm chrome arm, suitable for use with RTR1001K, RTR1296PK and RTR1296NK. . |
£14.29 Ex VAT @ 20% |
|
|
RTR8433
|
SWITCH SPRUNG OFF MOM. ON 43MM ARMRevington TR information: Switch, spring off - on 43mm chrome stem with Black flat finger pad. |
£12.26 Ex VAT @ 20% |
|
 |
RTR8434
|
SWITCH SPRUNG OFF/MOM. ON 60MM ARMRevington TR information: Switch spring off - on 60mm chrome stem with Black flat finger pad. The body measures 25mm x 13.5mm, a mounting hole of 12mm diameter is required and the stalk, which is 3mm diameter requires a... READ MORE |
£14.99 Ex VAT @ 20% |
|
|
RTR8453
|
SWITCH SPRING OFF-ON 100MM STEMRevington TR information: Switch spring off - on 360 degree contact type. 100mm chrome stem with round black finger pad. Top quality used for logic device switching. not currently available, please use RTR8207K or RTR8434 |
£45.43 Ex VAT @ 20% |
|
|
RTR8118
|
SWITCH ROTARY 4 POS FOR HEATERRevington TR information: 4 position Rotary switch. Can be used for headlamps/spots and for 3 speed heaters. This switch can be used to operate the 3-speed blower motor in our new heaters part number RTR1396-1K and RTR1396-2K and will... READ MORE |
||
 |
RTR8569-1
|

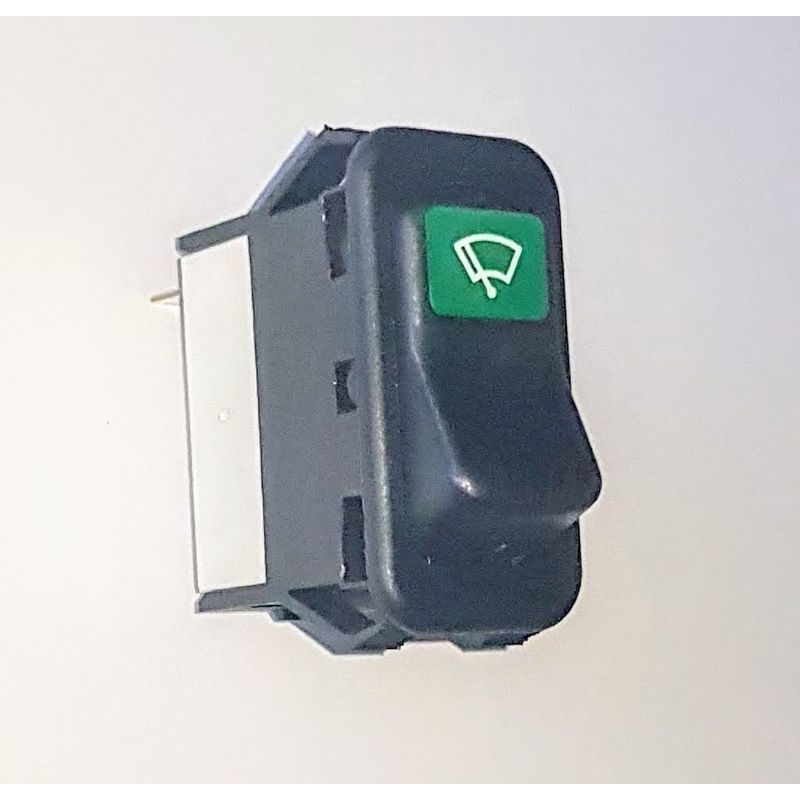

WIPER SWITCH TR250-5 MODERNRevington TR information: TR250-5 Modern illuminated rocker wiper switch to operate two speed wiper motor DR3A type. This switch can be used to operate this type of motor on earlier cars, TR3-4A too. If this modern illuminated rocker switch... READ MORE |
£47.83 Ex VAT @ 20% |
|
 |
RTR8569-2
|
WIPER SWITCH TR6 CC. CP MODERNRevington TR information: TR6CC/CP Modern illuminated rocker wiper switch to operate two speed wipers. If this modern illuminated rocker switch is being used to replace the original Clear Hooters type in the dashboard,the mounting slot will need to... READ MORE |
£32.23 Ex VAT @ 20% |
|
 |
RTR8409-10K
|
SWITCH WIPER ILLUMINATEDRevington TR information: Modern rocker two speed wiper Switch that can be used to operate a wiper motor of the type found on all TR6 and TR7-8 or the motor in our TR2-5 wiper upgrade kit as well as... READ MORE |
||
|
RTR8412
|
SWITCH INTERIOR LIGHTS CP Modern typeRevington TR information: Interior switch. Fits where washer or wiper switch would go to operate interior lights. The mounting slot will need to be opened out to fit. Slot size required for this switch is 43.2mm x 21.7mm. |
£34.24 Ex VAT @ 20% |
|
|
RTR8353
|
SWITCH PRESSURE 2.5 BARRevington TR information: All cars pressure switch 2.5 bar (36PSI). Thread M12 X 1.5 Straight. Useful on competition cars to indicate falling oil pressure before damage is done. RTR8353-1 is also available with a 1.4bar threshold |
£42.19 Ex VAT @ 20% |
|
|
RTR8353-1
|
SWITCH PRESSURE 1.4 BAR (20psi)Revington TR information: All cars. Pressure switch 1.4 bar (20PSI) with 1/8" BSP taper thread. Useful on competition cars to indicate falling oil pressure before damage is done. RTR8353 is also available with a 2.5bar threshold. |
£41.86 Ex VAT @ 20% |
|
|
YKC940 |
SWITCH COURTESY DOOR LIGHTThis item has been superceded by YKC940Z - see below |
||
 |
YKC940Z |
SWITCH COURTESY CTF |
£8.98 Ex VAT @ 20% |
|
 |
RTR8542
|
IGNITION SWITCH multi functionRevington TR information: Ignition switch 4 position: will accommodate thick dash panels. Chrome centre, black surround. Plastic construction. Comes with two keys, very reliable |
£51.42 Ex VAT @ 20% |
