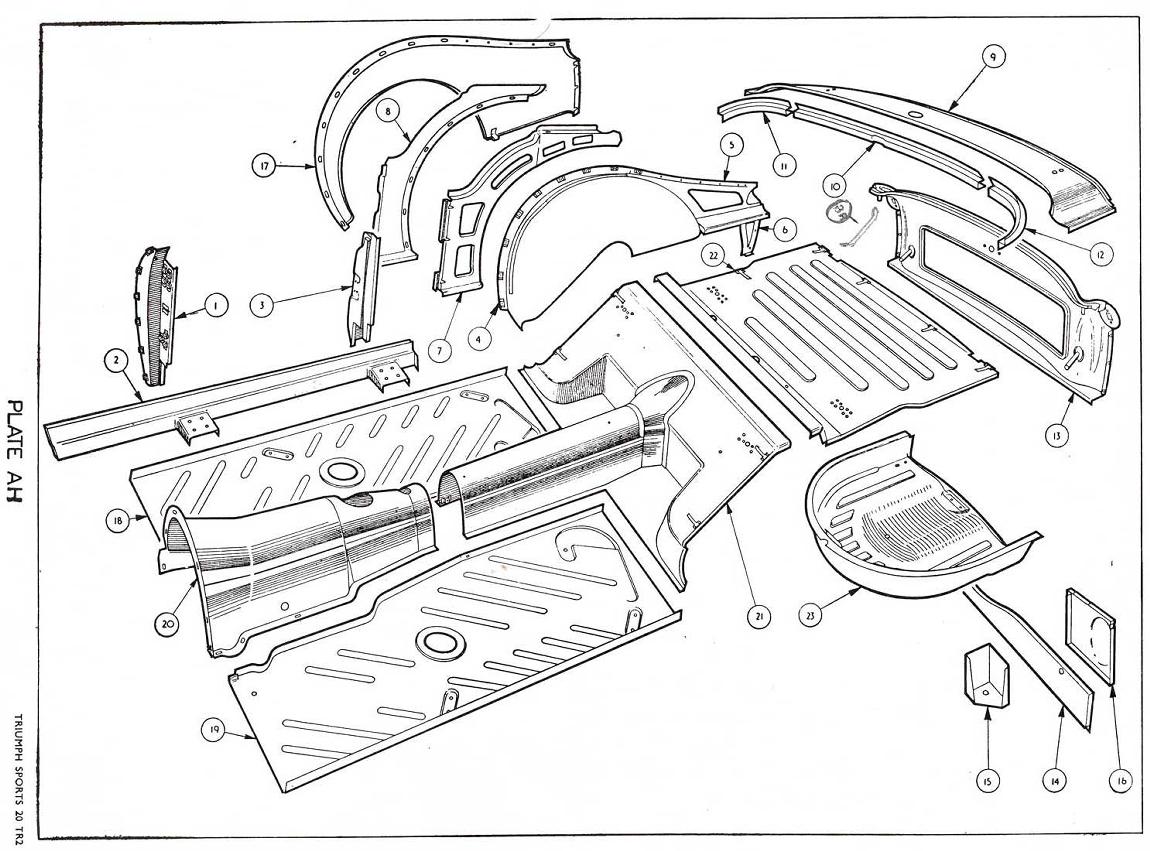

TR3 Plate AH - BODY AND FITTINGS: FLOORS REAR WINGS AND REAR BODY PANELS.

<< Return to Triumph Catalogue Plate List

> Open plate

> Open plate in new window

> Print Plate

> Close plate

> Open plate in new window

> Print Plate

Plate No.	Part No.	Description and Comments	No Per Unit	Price	Add to Cart
AH1	800574 CLICK FOR MORE INFO	Post 'A' assembly-R.H.	1	£253.72 Ex VAT @ 20% £211.43	Available to order
AH1A	800573 CLICK FOR MORE INFO	Post 'A' assembly-L.H.	1	£253.72 Ex VAT @ 20% £211.43
AH2	900391 CLICK FOR MORE INFO	Sill assembly, inner-R.H. Triumph Catalogue Remarks: Including body mounts	1	£261.30 Ex VAT @ 20% £217.75	Available to order
AH2A	900390 CLICK FOR MORE INFO	Sill assembly, inner-L.H. Triumph Catalogue Remarks: Including body mounts	1	£261.30 Ex VAT @ 20% £217.75	Available to order
AH2B	900659 CLICK FOR MORE INFO	Panel, sill outer-R.H. Triumph Catalogue Remarks: From Comm. No. TS4002 This item has been superceded by 850038 - see below	1
	850038 CLICK FOR MORE INFO	Panel, sill outer-R.H. Revington TR information: Steel outer Sill Cover Right Hand TR2-3B. Fitted from Commission No. TS4000 when the 'long' door was deleted in favour of the 'short door' These sills 850037 and 850038, as commercially available, are suitable for all... READ MORE	1	£27.84 Ex VAT @ 20% £23.20	Available to order
AH2C	850038 CLICK FOR MORE INFO	Panel, sill outer-R.H. Triumph Catalogue Remarks: From Comm. No. TS60001 Revington TR information: Steel outer Sill Cover Right Hand TR2-3B. Fitted from Commission No. TS4000 when the 'long' door was deleted in favour of the 'short door' These sills 850037 and 850038, as commercially available, are suitable for all... READ MORE	1	£27.84 Ex VAT @ 20% £23.20	Available to order
AH2D	900658 CLICK FOR MORE INFO	Panel, sill outer-L.H. Triumph Catalogue Remarks: From Comm. No. TS4002 This item has been superceded by 850037 - see below	1
	850037 CLICK FOR MORE INFO	Panel, sill outer-L.H. Revington TR information: Steel outer Sill Cover Left Hand TR2-3B. Fitted from Commission No. TS4000 when the 'long' door was deleted in favour of the 'short door' These sills 850037 and 850038, as commercially available, are suitable for all... READ MORE	1	£35.22 Ex VAT @ 20% £29.35	Available to order
AH2E	850037 CLICK FOR MORE INFO	Panel, sill outer-L.H. Triumph Catalogue Remarks: From Comm. No. TS60001 Revington TR information: Steel outer Sill Cover Left Hand TR2-3B. Fitted from Commission No. TS4000 when the 'long' door was deleted in favour of the 'short door' These sills 850037 and 850038, as commercially available, are suitable for all... READ MORE	1	£35.22 Ex VAT @ 20% £29.35	Available to order
AH3	800576 CLICK FOR MORE INFO	Post 'B' assembly-R.H. Triumph Catalogue Remarks: From Comm. No. TS______ This item has been superceded by 850119 - see below	1
	850119 CLICK FOR MORE INFO	Post 'B' assembly-R.H.	1	£254.93 Ex VAT @ 20% £212.44	Available to order
AH3A	850119 CLICK FOR MORE INFO	Post 'B' assembly-R.H. Triumph Catalogue Remarks: From Comm. No. TS60001	1	£254.93 Ex VAT @ 20% £212.44	Available to order
AH3B	800575 CLICK FOR MORE INFO	Post 'B' assembly-L.H. Triumph Catalogue Remarks: From Comm. No. TS______ This item has been superceded by 850118 - see below	1
	850118 CLICK FOR MORE INFO	Post 'B' assembly-L.H.	1	£218.83 Ex VAT @ 20% £182.36	Available to order
AH3C	850118 CLICK FOR MORE INFO	Post 'B' assembly-L.H. Triumph Catalogue Remarks: From Comm. No. TS60001 Revington TR information: This item has a secondhand part available - see below	1	£218.83 Ex VAT @ 20% £182.36	Available to order
	850118SH	Second Hand B Post Left hand TR2-3B Triumph Catalogue Remarks: From Comm. No. TS60001	1	£168.85 Ex VAT @ 20% £140.71
AH3D	602073	Plate, tapping, door lock striker	2		No longer available
AH3E	602074	Retainer, tapping plate	2		No longer available
AH4	900451 CLICK FOR MORE INFO	Wheelarch assembly-R.H. Triumph Catalogue Remarks: From Comm. No. TS1 This item has been superceded by 552909 - see below	1
	552909 CLICK FOR MORE INFO	Wheelarch assembly-R.H.	1	£429.90 Ex VAT @ 20% £358.25	Available to order
AH4A	552909 CLICK FOR MORE INFO	Wheelarch assembly-R.H. Triumph Catalogue Remarks: From Comm. No. TS1307	1	£429.90 Ex VAT @ 20% £358.25	Available to order
AH4B	850052 CLICK FOR MORE INFO	Wheelarch assembly-R.H. Triumph Catalogue Remarks: From Comm. No. TS60001	1	£428.60 Ex VAT @ 20% £357.17	Available to order
AH5	900414 CLICK FOR MORE INFO	Lining, boot-R.H. Triumph Catalogue Remarks: From Comm. No. TS1 This item has been superceded by 900614 - see below	1
	900614 CLICK FOR MORE INFO	Lining, boot-R.H. Revington TR information: Our product sold under this number is not the generally available pressed part which is unfortunately a poor fit. Our product is handmade and is as close a copy of our original Stanpart patterns as is... READ MORE	1	£194.93 Ex VAT @ 20% £162.44	Available to order
AH5A	900614 CLICK FOR MORE INFO	Lining, boot-R.H. Triumph Catalogue Remarks: From Comm. No. TS1307 Revington TR information: Our product sold under this number is not the generally available pressed part which is unfortunately a poor fit. Our product is handmade and is as close a copy of our original Stanpart patterns as is... READ MORE	1	£194.93 Ex VAT @ 20% £162.44	Available to order
AH5B	900450 CLICK FOR MORE INFO	Wheelarch assembly-L.H. Triumph Catalogue Remarks: From Comm. No. TS1 This item has been superceded by 552908 - see below	1
	552908 CLICK FOR MORE INFO	Wheelarch assembly-L.H.	1	£429.90 Ex VAT @ 20% £358.25	Available to order
AH5C	552908 CLICK FOR MORE INFO	Wheelarch assembly-L.H. Triumph Catalogue Remarks: From Comm. No. TS1307	1	£429.90 Ex VAT @ 20% £358.25	Available to order
AH5D	850051 CLICK FOR MORE INFO	Wheelarch assembly-L.H. Triumph Catalogue Remarks: From Comm. No. TS60001	1	£428.60 Ex VAT @ 20% £357.17
AH5E	900413 CLICK FOR MORE INFO	Lining, boot-L.H. Triumph Catalogue Remarks: From Comm. No. TS1 This item has been superceded by 900615 - see below	1
	900615 CLICK FOR MORE INFO	Lining, boot-L.H.	1	£225.97 Ex VAT @ 20% £188.31	Available to order
AH5F	900615 CLICK FOR MORE INFO	Lining, boot-L.H. Triumph Catalogue Remarks: From Comm. No. TS1307	1	£225.97 Ex VAT @ 20% £188.31	Available to order
AH6	800640 CLICK FOR MORE INFO	Panel, end, stiffening-R.H. Triumph Catalogue Remarks: From Comm. No. TS1	1		No longer available
AH6A	800789 CLICK FOR MORE INFO	Panel, end, stiffening-R.H. Triumph Catalogue Remarks: From Comm. No. TS1307 This item has been superceded by 800640 - see below	1
	800640 CLICK FOR MORE INFO	Panel, end, stiffening-R.H.	1		No longer available
AH6B	800639 CLICK FOR MORE INFO	Panel, end, stiffening-L.H. Triumph Catalogue Remarks: From Comm. No. TS1	1	£63.24 Ex VAT @ 20% £52.70
AH6C	800788 CLICK FOR MORE INFO	Panel, end, stiffening-L.H. Triumph Catalogue Remarks: From Comm. No. TS1307 This item has been superceded by 800639 - see below	1
	800639 CLICK FOR MORE INFO	Panel, end, stiffening-L.H.	1	£63.24 Ex VAT @ 20% £52.70
AH6D	901648 CLICK FOR MORE INFO	Boot lining and end R.H. Triumph Catalogue Remarks: From Comm. No. TS60001	1		No longer available
AH6E	901647 CLICK FOR MORE INFO	stiffening panel L.H. Triumph Catalogue Remarks: From Comm. No. TS60001	1		No longer available
AH7	900416 CLICK FOR MORE INFO	Panel, quarter lining-R.H. Triumph Catalogue Remarks: From Comm. No. TS_____	1	£231.19 Ex VAT @ 20% £192.66
AH7A	950036 CLICK FOR MORE INFO	Panel, quarter lining-R.H. Triumph Catalogue Remarks: From Comm. No. TS60001	1		No longer available
AH7B	900415 CLICK FOR MORE INFO	Panel, quarter lining-L.H. Triumph Catalogue Remarks: From Comm. No. TS_____	1	£271.45 Ex VAT @ 20% £226.21	Available to order
AH7C	950035	Panel, quarter lining-L.H. Triumph Catalogue Remarks: From Comm. No. TS60001	1		No longer available
AH8	900474 CLICK FOR MORE INFO	Panel, quarter, outer-R.H. Triumph Catalogue Remarks: From Comm. No. TS_____ This item has been superceded by 850044 - see below	1
	850044 CLICK FOR MORE INFO	Panel, quarter, outer-R.H. Revington TR information: This panel is supplied with the captive nuts in place.	1	£282.66 Ex VAT @ 20% £235.55	Available to order
AH8A	850044 CLICK FOR MORE INFO	Panel, quarter, outer-R.H. Triumph Catalogue Remarks: From Comm. No. TS60001 Revington TR information: This panel is supplied with the captive nuts in place.	1	£282.66 Ex VAT @ 20% £235.55	Available to order
AH8B	900473 CLICK FOR MORE INFO	Panel, quarter, outer-L.H. Triumph Catalogue Remarks: From Comm. No. TS_____ This item has been superceded by 850043 - see below	1
	850043 CLICK FOR MORE INFO	Panel, quarter, outer-L.H. Revington TR information: This panel is supplied with the captive nuts in place.	1	£282.66 Ex VAT @ 20% £235.55	Available to order
AH8C	850043 CLICK FOR MORE INFO	Panel, quarter, outer-L.H. Triumph Catalogue Remarks: From Comm. No. TS60001 Revington TR information: This panel is supplied with the captive nuts in place.	1	£282.66 Ex VAT @ 20% £235.55	Available to order
AH9	900475 CLICK FOR MORE INFO	TONNEAU SADDLE PANEL ASSEMBLY Triumph Catalogue Remarks: From Comm. No. TS_____	1		No longer available
AH9A	850124 CLICK FOR MORE INFO	TONNEAU SADDLE PANEL ASSEMBLY Triumph Catalogue Remarks: From Comm. No. TS60001	1		No longer available
AH9B	850046	TONNEAU RAIL ASSEMBLY Triumph Catalogue Remarks: From Comm. No. TS60001	1		No longer available
AH9C	650037 CLICK FOR MORE INFO	Clip, spring Triumph Catalogue Remarks: From Comm. No. TS60001	6		No longer available
AH10	900409 CLICK FOR MORE INFO	Rail, tonneau centre	1	£106.46 Ex VAT @ 20% £88.72
AH11	800787 CLICK FOR MORE INFO	End, tonneau, rail-R.H.	1	£53.27 Ex VAT @ 20% £44.39
AH12	800786 CLICK FOR MORE INFO	End, tonneau, rail-L.H.	1	£53.27 Ex VAT @ 20% £44.39
AH12A	900434	Channel, drain, boot lid side-R.H. Triumph Catalogue Remarks: From Comm. No. TS_____	1		No longer available
AH12B	850126 CLICK FOR MORE INFO	Channel, drain, boot lid side-R.H. Triumph Catalogue Remarks: From Comm. No. TS60001	1		No longer available
AH12C	900435	Channel, drain, boot lid side-L.H. Triumph Catalogue Remarks: From Comm. No. TS_____	1		No longer available
AH12D	850125 CLICK FOR MORE INFO	Channel, drain, boot lid side-L.H. Triumph Catalogue Remarks: From Comm. No. TS60001	1		No longer available
AH12E	900433 CLICK FOR MORE INFO	Channel, drip-rear edge This item has been superceded by 900433CS - see below	1
	900433CS	CHANNEL BOOT SIDE TR2-3A PRE60K PR Revington TR information: TR2-3A Pre 60K boot aperture channel set comprising two side channels and one rear lip. Not curently available	1		No longer available
AH13	900477 CLICK FOR MORE INFO	REAR BOOT PANEL ASSEMBLY Triumph Catalogue Remarks: From Comm. No. TS1 Revington TR information: From TS1 - TS22013 Aluminium and fibreglass versions of this panel are also available from time to time. Call office to discuss your options.	1	£1200.43 Ex VAT @ 20% £1000.36	Available to order
AH13A	554797 CLICK FOR MORE INFO	REAR BOOT PANEL ASSEMBLY Triumph Catalogue Remarks: From Comm. No. TS16473 This item has been superceded by 900477 - see below	1
	900477 CLICK FOR MORE INFO	REAR BOOT PANEL ASSEMBLY Revington TR information: From TS1 - TS22013 Aluminium and fibreglass versions of this panel are also available from time to time. Call office to discuss your options.	1	£1200.43 Ex VAT @ 20% £1000.36	Available to order
AH13B	901299 CLICK FOR MORE INFO	REAR BOOT PANEL ASSEMBLY Triumph Catalogue Remarks: From Comm. No. TS22014 Revington TR information: Steel TR3-3A and TR3B rear valance (or Apron if you prefer) with pressed nacelles for rear indicator lights. Consider alternative materials; aluminium 901299AL or Fibreglass 901299FG or second hand. From TS22014. See 900477 below for ealier... READ MORE	1	£1179.90 Ex VAT @ 20% £983.25	Available to order
AH13C	850045 CLICK FOR MORE INFO	REAR BOOT PANEL ASSEMBLY This item has been superceded by 901299 - see below	1
	901299 CLICK FOR MORE INFO	REAR BOOT PANEL ASSEMBLY Revington TR information: Steel TR3-3A and TR3B rear valance (or Apron if you prefer) with pressed nacelles for rear indicator lights. Consider alternative materials; aluminium 901299AL or Fibreglass 901299FG or second hand. From TS22014. See 900477 below for ealier... READ MORE	1	£1179.90 Ex VAT @ 20% £983.25	Available to order
AH14	900402 CLICK FOR MORE INFO	Rail, back bottom	1	£50.82 Ex VAT @ 20% £42.35
AH14A	900420 CLICK FOR MORE INFO	Bracket, mounting-R.H.	1	£24.07 Ex VAT @ 20% £20.06
AH15	900419 CLICK FOR MORE INFO	Bracket, mounting-L.H.	1	£24.07 Ex VAT @ 20% £20.06
AH15A	900422 CLICK FOR MORE INFO	Panel, closing-R.H. Triumph Catalogue Remarks: From Comm. No. TS_____	1	£32.74 Ex VAT @ 20% £27.28	Available to order
AH15B	850055 CLICK FOR MORE INFO	Panel, closing-R.H. Triumph Catalogue Remarks: From Comm. No. TS60001	1		No longer available
AH16	900421 CLICK FOR MORE INFO	Panel, closing-L.H. Triumph Catalogue Remarks: From Comm. No. TS_____	1	£32.74 Ex VAT @ 20% £27.28	Available to order
AH16A	850054 CLICK FOR MORE INFO	Panel, closing-L.H. Triumph Catalogue Remarks: From Comm. No. TS60001	1		No longer available
AH16B	607212	Plate, budget lock striker Triumph Catalogue Remarks: From Comm. No. TS22014	1		No longer available
AH16C	608943	Plate, budget lock striker Triumph Catalogue Remarks: From Comm. No. TS60001	1		No longer available
AH17	900486 CLICK FOR MORE INFO	REAR WING ASSEMBLY, R.H. Triumph Catalogue Remarks: From Comm. No. TS1 This item has been superceded by 900613 - see below	1
	900613 CLICK FOR MORE INFO	REAR WING ASSEMBLY, R.H. Revington TR information: Price shown is for our reproduction panel currently in stock. This right hand rear TR2-3B Outer Wing is a hand-made direct replacement for the original part. Due to the huge variation in build standard between TR2... READ MORE	1	£1092.96 Ex VAT @ 20% £910.80	Available to order
AH17A	900613 CLICK FOR MORE INFO	REAR WING ASSEMBLY, R.H. Triumph Catalogue Remarks: From Comm. No. TS1307 Revington TR information: Price shown is for our reproduction panel currently in stock. This right hand rear TR2-3B Outer Wing is a hand-made direct replacement for the original part. Due to the huge variation in build standard between TR2... READ MORE This item has a secondhand part available - see below	1	£1092.96 Ex VAT @ 20% £910.80	Available to order
	900613SH CLICK FOR MORE INFO	Second Hand TR2-3B REAR WING RH Triumph Catalogue Remarks: From Comm. No. TS1307 Revington TR information: We have a selection of TR2-3B right hand rear steel wings in various conditions. The price quoted here therefore is an average price for an average condition part. Exceptionally good parts will cost more and poorer... READ MORE	1	£515.04 Ex VAT @ 20% £429.20
AH17B	900485 CLICK FOR MORE INFO	REAR WING ASSEMBLY L.H. Triumph Catalogue Remarks: From Comm. No. TS1 This item has been superceded by 900612 - see below	1
	900612 CLICK FOR MORE INFO	REAR WING ASSEMBLY L.H. Revington TR information: Price shown is for our reproduction panel currently in stock. This left hand rear TR2-3B Outer Wing is a hand-made direct replacement for the original part. Due to the huge variation in build standard between TR2... READ MORE	1	£1092.96 Ex VAT @ 20% £910.80	Available to order
AH17C	900612 CLICK FOR MORE INFO	REAR WING ASSEMBLY L.H. Triumph Catalogue Remarks: From Comm. No. TS1307 Revington TR information: Price shown is for our reproduction panel currently in stock. This left hand rear TR2-3B Outer Wing is a hand-made direct replacement for the original part. Due to the huge variation in build standard between TR2... READ MORE This item has a secondhand part available - see below	1	£1092.96 Ex VAT @ 20% £910.80	Available to order
	900612SH CLICK FOR MORE INFO	Second Hand TR2-3B REAR WING LH Triumph Catalogue Remarks: From Comm. No. TS1307 Revington TR information: We have a selection of TR2-3B left hand rear steel wings in various conditions. The price quoted here therefore is an average price for an average condition part. Exceptionally good parts will cost more and poorer... READ MORE	1	£504.10 Ex VAT @ 20% £420.08	Available to order
AH17D	HU0706/P	Screw, rear wing attachment	24		No longer available
AH17E	552433 CLICK FOR MORE INFO	Screw, rear wing attachment	10	£1.03 Ex VAT @ 20% £0.86
AH17F	WM0057 CLICK FOR MORE INFO	Washer, on screws This item has been superceded by WP10412057 - see below	34
	WP10412057 CLICK FOR MORE INFO	WASHER PLAIN 1/4" x 3/4" x 0.057"	34	£0.61 Ex VAT @ 20% £0.51
AH17G	602167 CLICK FOR MORE INFO	Clamp, rear wing fixing	2	£8.04 Ex VAT @ 20% £6.70	Available to order
AH17H	601937 CLICK FOR MORE INFO	Stay, rear wing Revington TR information: This item has a secondhand part available - see below	2	£16.45 Ex VAT @ 20% £13.71
	601937SH	Second hand REAR WING STAY BAR TR2-3A	2	£7.98 Ex VAT @ 20% £6.65
AH17J	HU0705 CLICK FOR MORE INFO	Screw, stay attachment This item has been superceded by SH604051 - see below	4
	SH604051	SCREW 1/4 UNF X 5/8 INCH	4	£0.62 Ex VAT @ 20% £0.52
AH17K	WP0023 CLICK FOR MORE INFO	Washer, plain, on screw This item has been superceded by WP10408035 - see below	4
	WP10408035	WASHER PLAIN 1/4" x 1/2" x 0.035"	4		No longer available
AH17L	HN2007 CLICK FOR MORE INFO	Nut, locking screw This item has been superceded by NP604071 - see below	4
	NP604071	NUT PLAIN 1/4 UNF X 7/32	4	£0.44 Ex VAT @ 20% £0.37
AH17M	WL0207 CLICK FOR MORE INFO	Washer, spring, under nut This item has been superceded by WS104070643 - see below	4
	WS104070643	WASHER SPRING 1/4" RECT SECTION	4	£0.20 Ex VAT @ 20% £0.17
AH18	900394 CLICK FOR MORE INFO	Floor, main assembly-R.H. Triumph Catalogue Remarks: Up to Comm. No. TS60,000 This item has been superceded by 950054 - see below	1
	950054 CLICK FOR MORE INFO	Floor, main assembly-R.H.	1	£155.78 Ex VAT @ 20% £129.82	Available to order
AH18A	950054 CLICK FOR MORE INFO	Floor, main assembly-R.H. Triumph Catalogue Remarks: From Comm. No. TS60,001	1	£155.78 Ex VAT @ 20% £129.82	Available to order
AH18B	602137 CLICK FOR MORE INFO	Plate retaining gaiter Revington TR information: Plate gaiter to floor This item has a secondhand part available - see below	1	£11.50 Ex VAT @ 20% £9.58
	602137SH CLICK FOR MORE INFO	Second Hand H/BRAKE RET. PLATE	1	£6.06 Ex VAT @ 20% £5.05	Available to order
AH18C	602138 CLICK FOR MORE INFO	Plate retaining gaiter Revington TR information: Plate gaiter to tunnel	1	£9.77 Ex VAT @ 20% £8.14
AH18D	700922 CLICK FOR MORE INFO	Gaiter Handbrake and Speedometer Cable	1		No longer available
AH18E	602150 CLICK FOR MORE INFO	Clip,'wiring This item has been superceded by 603559 - see below	4
	603559 CLICK FOR MORE INFO	LOOM T CLIP Revington TR information: TR2-6 'T' tag welded to the bodyshell and used principally for securing the wiring loom.	4	£1.36 Ex VAT @ 20% £1.13
AH19	900393 CLICK FOR MORE INFO	Floor, main, assembly-L.H. Triumph Catalogue Remarks: up to Comm. No. TS60,000 This item has been superceded by 950053 - see below	1
	950053 CLICK FOR MORE INFO	Floor, main, assembly-L.H.	1	£155.08 Ex VAT @ 20% £129.23	Available to order
AH19A	950053 CLICK FOR MORE INFO	Floor, main, assembly-L.H. Triumph Catalogue Remarks: From Comm. No. TS60,001	1	£155.08 Ex VAT @ 20% £129.23	Available to order
AH19B	602219 CLICK FOR MORE INFO	jack hole cover steel Triumph Catalogue Remarks: TR2 only Revington TR information: Pressed Steel Jack Hole Plug for TR2 - 6 This steel jack hope plug was originally only supplied and fitted to early Triumph TR2 models under the part number 602219 and subsequently replaced by the more... READ MORE	2	£45.54 Ex VAT @ 20% £37.95
AH19C	603384 CLICK FOR MORE INFO	jack hole cover rubber Triumph Catalogue Remarks: TR3 onwards Revington TR information: We also have second hand parts 603384SH This item has a secondhand part available - see below	2	£4.24 Ex VAT @ 20% £3.53	Available to order
	603384SH	GROMMET Triumph Catalogue Remarks: TR3 onwards	2	£3.62 Ex VAT @ 20% £3.02
AH20	900392 CLICK FOR MORE INFO	Cover assembly, gearbox Triumph Catalogue Remarks: From Comm. No. TS______ Revington TR information: Three different steel gearbox tunnels were used on TR2-3B 900392, 560012 and 901550 depending on gearbox casing employed. We can supply second hand original steel parts plus aluminium and fibreglass reproductions. Original parts. 900392 with a... READ MORE	1		No longer available
AH20A	560012 CLICK FOR MORE INFO	Cover assembly, gearbox Triumph Catalogue Remarks: From Comm. No. TS______ Revington TR information: Three different steel gearbox tunnels were used on TR2-3B 900392, 560012 and 901550 depending on gearbox casing employed. We can supply second hand original steel parts plus aluminium and fibreglass reproductions. Original parts. 900392 with a... READ MORE	1		No longer available
AH20B	901550 CLICK FOR MORE INFO	Cover assembly, gearbox Triumph Catalogue Remarks: From Comm. No. TS50001 Revington TR information: Three different steel gearbox tunnels were used on TR2-3B 900392, 560012 and 901550 depending on gearbox casing employed. We can supply second hand original steel parts plus aluminium and fibreglass reproductions. Original parts. 900392 with a... READ MORE This item has a secondhand part available - see below	1		No longer available
	901550SH CLICK FOR MORE INFO	Second Hand TUNNEL TR3A Triumph Catalogue Remarks: From Comm. No. TS50001 Revington TR information: Three different steel gearbox tunnels were used on TR2-3B 900392, 560012 and 901550 depending on gearbox casing employed. We can supply second hand original steel parts plus aluminium and fibreglass reproductions. When ordering a second hand... READ MORE	1	£191.86 Ex VAT @ 20% £159.88
AH20C	HU0705/P CLICK FOR MORE INFO	Screw, gearbox cover to floor and bulkhead This item has been superceded by SH604051 - see below	16
	SH604051	SCREW 1/4 UNF X 5/8 INCH	16	£0.62 Ex VAT @ 20% £0.52
AH20D	WM0057 CLICK FOR MORE INFO	Washer, plain, on screws This item has been superceded by WP10412057 - see below	16
	WP10412057 CLICK FOR MORE INFO	WASHER PLAIN 1/4" x 3/4" x 0.057"	16	£0.61 Ex VAT @ 20% £0.51
AH21	900449 CLICK FOR MORE INFO	Floor, rear, assembly Triumph Catalogue Remarks: up to Comm. No. TS60,000 Revington TR information: Tank strap retaining nut plates, which are fixed under this panel, are available separately. Order RTR7046, 4 required per car.	1	£760.30 Ex VAT @ 20% £633.58	Available to order
AH21A	850117 CLICK FOR MORE INFO	Floor, rear, assembly Triumph Catalogue Remarks: From Comm. No. TS60,001 Revington TR information: Tank strap retaining nut plates, which are fixed under this panel, are available separately. Order RTR7046, 4 required per car. The hump on its own is part number 850117X.	1	£502.78 Ex VAT @ 20% £418.98	Available to order
AH21B	900407	Panel, floor, rear	1		No longer available
AH21C	602150 CLICK FOR MORE INFO	Clip, wiring This item has been superceded by 603559 - see below	2
	603559 CLICK FOR MORE INFO	LOOM T CLIP Revington TR information: TR2-6 'T' tag welded to the bodyshell and used principally for securing the wiring loom.	2	£1.36 Ex VAT @ 20% £1.13
AH21D	900408	Tunnel, propellor shaft Triumph Catalogue Remarks: From Comm. No. TS______	1		No longer available
AH21E	803720	Tunnel, propellor shaft Triumph Catalogue Remarks: From Comm. No. TS60001	1		No longer available
AH22	900412 CLICK FOR MORE INFO	Floor assembly, boot Triumph Catalogue Remarks: From Comm. No. TS______ Revington TR information: Tank strap retaining nut plates, which are fixed under this panel, are available separately. Order RTR7046, 4 required per car. Up to chassis 60K	1	£440.94 Ex VAT @ 20% £367.45	Available to order
AH22A	803767 CLICK FOR MORE INFO	Floor assembly, boot Triumph Catalogue Remarks: From Comm. No. TS60001 Revington TR information: Tank strap retaining nut plates, which are fixed under this panel, are available separately. Order RTR7046, 4 required per car.	1	£342.17 Ex VAT @ 20% £285.14	Available to order
AH22B	602150 CLICK FOR MORE INFO	Clip, wiring This item has been superceded by 603559 - see below	5
	603559 CLICK FOR MORE INFO	LOOM T CLIP Revington TR information: TR2-6 'T' tag welded to the bodyshell and used principally for securing the wiring loom.	5	£1.36 Ex VAT @ 20% £1.13
AH23	900401 CLICK FOR MORE INFO	Container, spare wheel Triumph Catalogue Remarks: From Comm. No. TS______	1	£621.07 Ex VAT @ 20% £517.56	Available to order
AH23A	950046 CLICK FOR MORE INFO	Container, spare wheel Triumph Catalogue Remarks: From Comm. No. TS60001	1	£425.50 Ex VAT @ 20% £354.58	Available to order
AH23B	700938	Bracket, spare wheel stop	1		No longer available
AH23C	602157 CLICK FOR MORE INFO	Bracket, striker, lid lock	2	£4.68 Ex VAT @ 20% £3.90	Available to order
