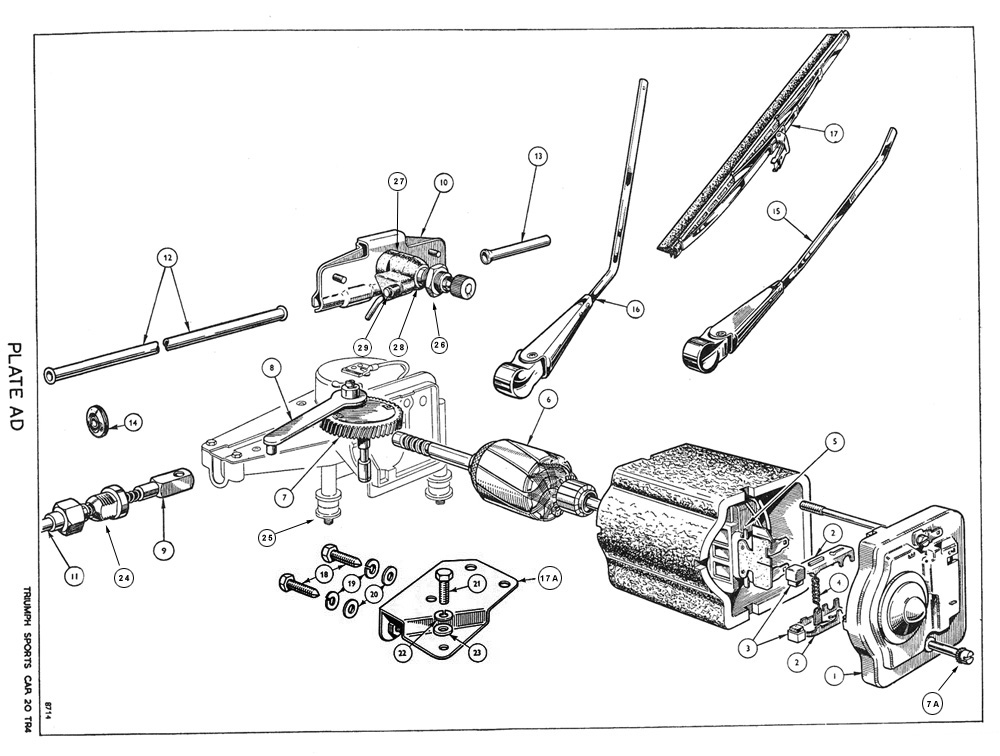

TR4 Plate AD - ELECTRICAL EQUIPMENT: WINDSCREEN WIPER ASSEMBLY.

<< Return to Triumph Catalogue Plate List

> Open plate

> Open plate in new window

> Print Plate

> Close plate

> Open plate in new window

> Print Plate

Plate No.	Part No.	Description and Comments	No Per Unit	Price	Add to Cart
AD1AA	505124 CLICK FOR MORE INFO	MOTOR AND GEARBOX Triumph Catalogue Remarks: Fitted up to Body No. 7783CT, R.H.S., and 30CT, L.H.S. only Revington TR information: Wiper Motor Fitted from TR3 chassis number TS12568 to TR4 body number 7783CT (RHD) and 30CT (LHD). Not available new, please use second hand part 505124SH or reconditioned part 505124EX or one of our conversion kits.... READ MORE This item has a secondhand part available - see below	1		No longer available
	505124SH CLICK FOR MORE INFO	Second Hand WIPER MOTOR DR2 TR3-3A-4<CT7783 Triumph Catalogue Remarks: Fitted up to Body No. 7783CT, R.H.S., and 30CT, L.H.S. only Revington TR information: Revington TR supply this Wiper Motor Second Hand Complete but can offer no guarantee about its ability to perform. Order a rebuilt part 505124EX if a part guaranteed to work is required. The original parts books... READ MORE	1	£140.40 Ex VAT @ 20% £117.00	Available to order
AD1	503594 CLICK FOR MORE INFO	Cover, end	1		No longer available
AD2	505125 CLICK FOR MORE INFO	Gear, brush	1		No longer available
AD3	505126 CLICK FOR MORE INFO	Brush set This item has been superceded by 508170 - see below	1
	508170 CLICK FOR MORE INFO	Brush set	1	£12.56 Ex VAT @ 20% £10.47
AD4	057492 CLICK FOR MORE INFO	Spring, brush This item has been superceded by 508170 - see below	1
	508170 CLICK FOR MORE INFO	Brush set	1	£12.56 Ex VAT @ 20% £10.47
AD5	503597 CLICK FOR MORE INFO	Coil, field	1		No longer available
AD6	503596 CLICK FOR MORE INFO	Armature	1		No longer available
AD7	503602 CLICK FOR MORE INFO	Shaft and Gear assembly This item has been superceded by 520939 - see below	1
	520939	WIPER DRIVE GEAR 130 DEG DR2 Revington TR information: FITTED TO TR3 FROM TS12568 & TR3A & TR4 UP TP CT7783	1		No longer available
AD8	503601 CLICK FOR MORE INFO	Rod assembly, connecting gear to crosshead and rack	1		No longer available
AD8A	503603 CLICK FOR MORE INFO	Set, sundry parts	1		No longer available
AD8B	510985 CLICK FOR MORE INFO	MOTOR AND GEARBOX Triumph Catalogue Remarks: Fitted from Body No. 7784CT, R.H.S., and 31CT, L.H.S., and future Revington TR information: Single speed wiper motor DR3A type with a sweep of 110 degrees. Fitted from TR4 body number 7784CT (RHD) and 31CT (LHD) to TR5 and TR250. Not available new. Please use second hand part 510985SH, reconditioned... READ MORE This item has a secondhand part available - see below	1		No longer available
	510985SH CLICK FOR MORE INFO	Second Hand WIPER MOTOR DR3A Triumph Catalogue Remarks: Fitted from Body No. 7784CT, R.H.S., and 31CT, L.H.S., and future Revington TR information: Revington TR supply this Wiper Motor Second Hand Complete but can offer no guarantee about its ability to perform. Order a rebuilt part 510985EX if a part guaranteed to work is required. The original parts books... READ MORE	1	£129.35 Ex VAT @ 20% £107.79
AD8C	511002	Cover, end	1		No longer available
AD8D	508169 CLICK FOR MORE INFO	Gear, brush This item has been superceded by 508170 - see below	1
	508170 CLICK FOR MORE INFO	Brush set	1	£12.56 Ex VAT @ 20% £10.47
AD8E	508170 CLICK FOR MORE INFO	Brush set	1	£12.56 Ex VAT @ 20% £10.47
AD8F	057942	Spring, brush	1		No longer available
AD8G	511004	Coil, field	1		No longer available
AD8H	511003 CLICK FOR MORE INFO	Armature	1		No longer available
AD8I	511007 CLICK FOR MORE INFO	Shaft and gear assembly Revington TR information: Shaft and gearwheel assembly, part of wiper motor assembly 510985.	1	£85.45 Ex VAT @ 20% £71.21	Available to order
AD8J	503603 CLICK FOR MORE INFO	Set, sundry parts	1		No longer available
AD9	508182 CLICK FOR MORE INFO	Crosshead and rack Triumph Catalogue Remarks: Originally consisting of crosshead and rack RTC202A plus threaded ferrule 37H5282. See below This item has been superceded by RTC202A - see below	1
	RTC202A CLICK FOR MORE INFO	WIPER RACK Revington TR information: Cut to 765mm Overall length for TR4, 4A, 250, 5, 6. Consider original second hand part RTC202ASH.	1	£30.00 Ex VAT @ 20% £25.00
AD10	131099 CLICK FOR MORE INFO	Wheelbox assembly - R.H. This item has been superceded by 37H6316 - see below	1
	37H6316 CLICK FOR MORE INFO	WHEELBOX WIPER TR3A-5 Revington TR information: TR3-3B,4,4A,250 and 5 Wiper Wheel Box. These wheel boxes are supplied without windscreen washer sets (TR4-5) or upper chrome bezel (TR3-3A). Originally these wheel boxes were supplied with all the necessary attachment details for individual Triumph... READ MORE	1		No longer available
AD10A	131100 CLICK FOR MORE INFO	Wheelbox assembly - L.H. This item has been superceded by 37H6316 - see below	1
	37H6316 CLICK FOR MORE INFO	WHEELBOX WIPER TR3A-5 Revington TR information: TR3-3B,4,4A,250 and 5 Wiper Wheel Box. These wheel boxes are supplied without windscreen washer sets (TR4-5) or upper chrome bezel (TR3-3A). Originally these wheel boxes were supplied with all the necessary attachment details for individual Triumph... READ MORE	1		No longer available
AD11	131101 CLICK FOR MORE INFO	Tubing, motor to first wheelbox Revington TR information: This item has a secondhand part available - see below	1	£33.40 Ex VAT @ 20% £27.83	Available to order
	131101SH CLICK FOR MORE INFO	Second Hand TUBE RACK WIPER IST TR4-5	1	£16.38 Ex VAT @ 20% £13.65
AD11A	RTR8396 CLICK FOR MORE INFO	TUBE SET Triumph Catalogue Remarks: Consisting of 1 x 131101, 1 x 131151 and 1 x 108860 Revington TR information: TR4-5 wiper tube set.	1	£79.79 Ex VAT @ 20% £66.49	Available to order
AD11B	RTR8355 CLICK FOR MORE INFO	TUBE NUT PIPE TO FERRULE Triumph Catalogue Remarks: Originally only supplied as part of 131101 Revington TR information: TR3-8 wiper tube nut.	1	£7.04 Ex VAT @ 20% £5.87
AD12	131151 CLICK FOR MORE INFO	Tubing, wheelbox to wheelbox Revington TR information: Consider original second hand part 131151SH. 311mm (12¼") long This item has a secondhand part available - see below	1	£18.20 Ex VAT @ 20% £15.17	Available to order
	131151SH CLICK FOR MORE INFO	RACK TUBING CTR TR4-5 Second Hand	1	£8.42 Ex VAT @ 20% £7.02	Available to order
AD13	108860 CLICK FOR MORE INFO	Tubing, short, second wheelbox This item has been superceded by 575047A - see below	1
	575047A CLICK FOR MORE INFO	RACK TUBE SHORT No. 3 Revington TR information: Consider Second hand part 575047ASH	1	£7.18 Ex VAT @ 20% £5.98
AD14	131155 CLICK FOR MORE INFO	Grommet Revington TR information: Use 600395	1		No longer available
ADI5	131105 CLICK FOR MORE INFO	Wiper arm - R.H. R.H.S. Revington TR information: TR4, 4A, 250 and 5 Right Hand Wiper Arm for Right Hand Drive cars, standard type. This arm is straight with a slight crank at the end of the arm. It is 11" long from... READ MORE This item has a secondhand part available - see below	1	£39.80 Ex VAT @ 20% £33.17
	131105SH CLICK FOR MORE INFO	WIPER ARM RH TR4, 4A, 5, 250 RHD Second Hand Revington TR information: Second Hand TR4, 4A, 250, 5 Right Hand Wiper Arm for Right Hand Drive cars. Condition: - Second hand	1	£19.67 Ex VAT @ 20% £16.39
AD16	131106 CLICK FOR MORE INFO	Wiper arm - L.H. R.H.S. Revington TR information: TR4, 4A, 250 and 5 Left Hand Wiper Arm for Right Hand Drive cars, standard type. This arm has a 38° cranked bend to avoid the vent flap when open. Consider using heavy-duty part 131106X... READ MORE This item has a secondhand part available - see below	1	£39.80 Ex VAT @ 20% £33.17
	131106SH CLICK FOR MORE INFO	WIPER ARM LH TR4, 4A ,250, 5 RHD Second Hand Revington TR information: TR4, 4A, 250, 5 Left Hand Wiper Arm for Right Hand Drive cars. Condition: - Second hand	1	£19.67 Ex VAT @ 20% £16.39	Available to order
AD16A	131107 CLICK FOR MORE INFO	Wiper arm - R.H. L.H.S. Revington TR information: TR4, 4A, 250 and 5 Right Hand Wiper Arm for Left Hand Drive cars, standard type. This arm has a 38° cranked bend to avoid the vent flap when open and has a slight crank... READ MORE This item has a secondhand part available - see below	1	£39.80 Ex VAT @ 20% £33.17
	131107SH CLICK FOR MORE INFO	Wiper Arm TR4-5 RH LHD cranked Second Hand Revington TR information: TR4, 4A, 250, 5 Right Hand Wiper Arm for Left Hand Drive cars. Condition: - Second hand	1	£19.67 Ex VAT @ 20% £16.39	Available to order
AD16B	131108 CLICK FOR MORE INFO	Wiper arm - L.H. L.H.S. Revington TR information: TR4, 4A, 250 and 5 Left Hand Wiper Arm for Left Hand Drive cars, standard type. This arm is straight with a slight crank at the end of the arm. It is 11" long from... READ MORE This item has a secondhand part available - see below	1	£39.80 Ex VAT @ 20% £33.17
	131108SH CLICK FOR MORE INFO	Second hand WIPER ARM LH FOR LHD TR4, 4A, 5, 250 Revington TR information: Second Hand TR4, 4A, 250, 5 Left Hand Wiper Arm for Left Hand Drive cars. Condition: - Second hand	1	£15.54 Ex VAT @ 20% £12.95	Available to order
AD17	131111 CLICK FOR MORE INFO	Blade, wiper This item has been superceded by GWB219 - see below	2
	GWB219 CLICK FOR MORE INFO	WIPER BLADE TR4, 4A, 250 and 5 STAINLESS steel 10" Revington TR information: Windscreen Wiper Blade to suit narrow wiper arm fitted to TR4, 4A ,250 and 5 (as opposed to the slightly thicker arm used on TR6), Bright finish. Consider also modern silicone rubber insert RTR8521-40. This inset... READ MORE	2	£20.70 Ex VAT @ 20% £17.25	Available to order
AD18	611169 CLICK FOR MORE INFO	BRACKET ASSEMBLY - WIPER MOTOR MOUNTING Triumph Catalogue Remarks: Not illustrated Revington TR information: Bracket supporting wiper motor both one speed and two speed, TR4, 4A, 5 and 250. Not available new. Consider original second hand part 611169SH. We also have original parts that has been powder coat painted black... READ MORE This item has a secondhand part available - see below	1		No longer available
	611169SH CLICK FOR MORE INFO	Second Hand MOTOR MOUNT BKT Triumph Catalogue Remarks: Not illustrated Revington TR information: Second hand Bracket supporting wiper motor both one speed and two speed, TR4, 4A, 5 and 250. This part is an original part in used condition. We also have parts that have been powder coat... READ MORE	1	£46.64 Ex VAT @ 20% £38.87
AD19	HU0707/P CLICK FOR MORE INFO	Screw, set - Bracket to bulkhead lower pane! Triumph Catalogue Remarks: Not illustrated This item has been superceded by SH604071 - see below	2
	SH604071 CLICK FOR MORE INFO	SCREW 1/4 UNF X 7/8 INCH	2	£1.02 Ex VAT @ 20% £0.85
AD20	WL0207 CLICK FOR MORE INFO	Washer, lock - Bracket to bulkhead lower pane! Triumph Catalogue Remarks: Not illustrated This item has been superceded by WS104070643 - see below	2
	WS104070643	WASHER SPRING 1/4" RECT SECTION	2	£0.20 Ex VAT @ 20% £0.17
AD21	WM0057 CLICK FOR MORE INFO	Washer, plain - Bracket to bulkhead lower pane! Triumph Catalogue Remarks: Not illustrated This item has been superceded by WP10412057 - see below	2
	WP10412057 CLICK FOR MORE INFO	WASHER PLAIN 1/4" x 3/4" x 0.057"	2	£0.61 Ex VAT @ 20% £0.51
AD22	HU0704 CLICK FOR MORE INFO	Screw, set - Mounting bracket to bulkhead bracket Triumph Catalogue Remarks: Not illustrated This item has been superceded by SH604041 - see below	1
	SH604041 CLICK FOR MORE INFO	SCREW 1/4 UNF X 1/2 INCH	1	£0.58 Ex VAT @ 20% £0.48
AD23	WL0207 CLICK FOR MORE INFO	Washer, lock - Mounting bracket to bulkhead bracket Triumph Catalogue Remarks: Not illustrated This item has been superceded by WS104070643 - see below	1
	WS104070643	WASHER SPRING 1/4" RECT SECTION	1	£0.20 Ex VAT @ 20% £0.17
AD24	37H5282 CLICK FOR MORE INFO	FERRULE WIPER MOTOR Triumph Catalogue Remarks: Holding rack in body	1	£17.40 Ex VAT @ 20% £14.50	Available to order
AD25	17H5431 CLICK FOR MORE INFO	W.MOTOR MOUNTING (BUSH & PIN) Revington TR information: This is an assembly consisting of one pin, one nut, two washers and one rubber mount. A kit consisting of 3 assemblies 17H5431 can be bought as 17H5431K. The mounting rubber can be bought own its... READ MORE	2	£9.25 Ex VAT @ 20% £7.71
AD26	ANK3459 CLICK FOR MORE INFO	NUT 6 SIDED W/BOX Revington TR information: TR3, 4, 4A, 5 and 250. Chrome Nut securing wheel box to Jet support block and the bulkhead. The 8 sided nut 17H8769 used on TR6 can be used as an alternative. . This item has a secondhand part available - see below	1	£2.41 Ex VAT @ 20% £2.01
	ANK3459SH	NUT 6 SIDED WHEEL BOX TR3A-5 Second Hand	1	£1.48 Ex VAT @ 20% £1.23
AD27	RTR8067 CLICK FOR MORE INFO	BUSH ANGLED WIPER W/BOX Triumph Catalogue Remarks: Below scuttle panel Revington TR information: TR4-6 Bush, angled below bulkhead. 2 required per car. Manufactured from strong nylon. Can also be used for TR3A if shortened by 4.76mm.	1	£9.22 Ex VAT @ 20% £7.68
AD28	511070 CLICK FOR MORE INFO	JET/NOZZLE RH Triumph Catalogue Remarks: Above scuttle panel Revington TR information: Wiper wheels box support kit left hand including 1 x upper support, 1 x washer jet and 1 x washer feed tubes, sufficient for the left hand wiper wheel box only. Should you require the complete... READ MORE This item has a secondhand part available - see below	1	£8.45 Ex VAT @ 20% £7.04
	511070SH	Second Hand JET/NOZZLE TR4-6 RH Triumph Catalogue Remarks: Above scuttle panel	1	£8.86 Ex VAT @ 20% £7.38
AD28A	511071 CLICK FOR MORE INFO	JET/NOZZLE LH Triumph Catalogue Remarks: Above scuttle panel Revington TR information: Wiper wheels box support kit right hand including 1 x upper support, 1 x washer jet and 1 x washer feed tubes, sufficient for the left hand wiper wheel box only. Should you require the complete... READ MORE This item has a secondhand part available - see below	1	£8.45 Ex VAT @ 20% £7.04
	511071SH	Second Hand JET/NOZZLE TR4-6 LH Triumph Catalogue Remarks: Above scuttle panel	1	£8.86 Ex VAT @ 20% £7.38
AD29	LU743294 CLICK FOR MORE INFO	JET WASHER CHROME Revington TR information: TR4-6 Jet in the side of support.	2	£10.92 Ex VAT @ 20% £9.10
